Product Details:
Payment & Shipping Terms:
|
| Cooling Water Pressure: | 0.3mpa | Blow Pressure: | 0.6mpa |
|---|---|---|---|
| Mold Stroke: | 80-350mm | Clamping Force: | 32KN |
| Output Of HDPE: | 60 KG/H | Screw Heating Capacity: | 5 KW |
| Highlight: | bottle blow molding machine,blow molding equipment |
||

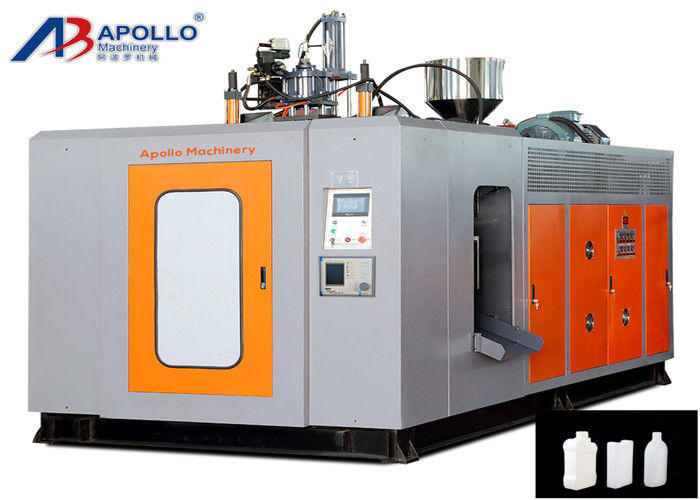

Automatic blow molding machine 5ml-2L Automatic bottle blow moulding machine ABLB55

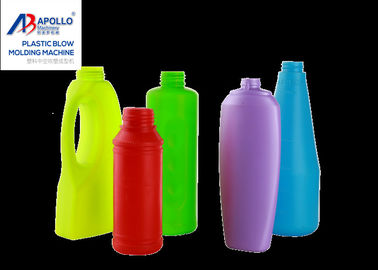

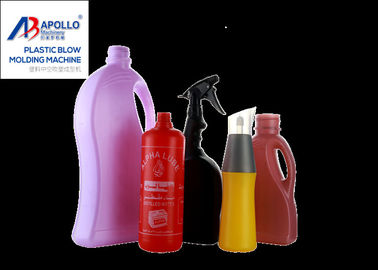

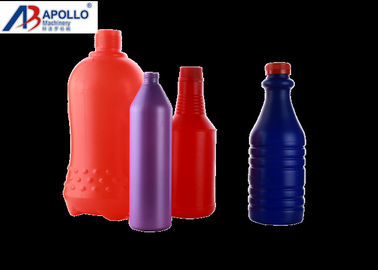

ABLB55 is designed according to CE standard.Adding a safe door and infrared signal lamp to avoid the the happen of accident. This machine looks neat and nice.And it is widely used to produce kinds of cosmetic bottles,medical bottles,milk bottles,shampoo bottles and so on.
For more info.,please contact us.
Related technical parameter:: (ABLB55)
| Max. Product volume | 2 liters | Dry cycle | 950X2pc/h |
| Screw diameter | 55mm | Screw L/D ratio | 24 L/D |
| Screw drive power | 15 KW | Screw heating capacity | 5 KW |
| No.of heating zone | 3 zones | Output of HDPE | 60 KG/H |
| Oil pump drive power | 5.5 KW | Clamping force | 32KN |
| Max.size of mold | 250X320mm | Mold stroke | 80-350mm |
| Max.die diameter | 80mm | Blow pressure | 0.6mpa |
| Air volume | 0.6 M³/MIN | Cooling water pressure | 0.3mpa |
| Water consumption | 60 L/MIN |
PLC adds the man-machine interface, the touching type is operated, it is convenient to be simple and direct.
One pair of Iow plastification systems of Senior One, energy-efficient,mix and smelt outstandingly.
The centre enters the material, the pushing out of the mould head of many patterns, remove and make and converge the line completely, meet the demands of different structure products.
Two parallel, the mould organization of translation, the centre locks the mould, balance the strength of receiving,move rapidly, put it in place gentlely.
