Plastic Automatic Blow Moulding Machine 5ml-2L ABLB55II Water Consumption 40 L/MIN

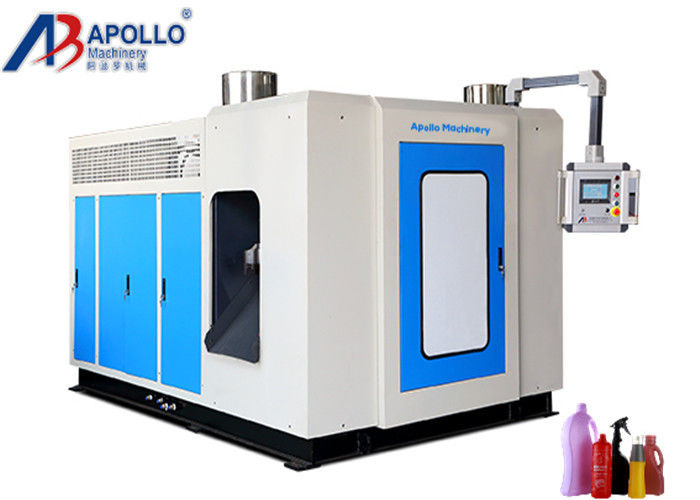

Large Image : Plastic Automatic Blow Moulding Machine 5ml-2L ABLB55II Water Consumption 40 L/MIN

Product Details:

Place of Origin:	JIANGSU, CHINA
Brand Name:	ABC
Certification:	CE/SGS

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Negotiable
Packaging Details:	Film packing/Carton packing/Wooden packing
Delivery Time:	30 working days
Payment Terms:	L/C, T/T
Supply Ability:	20 sets per month

Contact Now

Detailed Product Description

Max. Product Volume:	3.5 Liters	Screw Diameter:	55mm
Screw Drive Power:	15 KW	No.of Heating Zone:	3 Zones
Oil Pump Drive Power:	7.5 KW	Max.size Of Mold:	320X360mm
Highlight:	plastic blow moulding machine , bottle blow molding machine

ABLB55II is low cost,energy save and high quality blow molding machine.Suitable for oil bottles,shampoo bottles,chemical bottles,milk bottles and related product not over 3.5L.Adopt high quality Mico Computer PLC controler and temperature controler from Mitisubishi Japane to ensure the good funciton of the mico system..Equip with sliencer and oiling system to reduce noise and friction.
The max.size for mold: 320x300x200(mm)
Output: 1 cavity for 3.5L(the max.volume of plastic bottles)
4 cavity for 50ml(the mini.volume for plastic bottles)

For more information,please don t hesitate to contact us.

Related technical parameter:: (ABLB55II)

Max. Product volume	3.5 liters	Dry cycle	1100pc/h
Screw diameter	55mm	Screw L/D ratio	24 L/D
Screw drive power	15 KW	Screw heating capacity	5-6 KW
No.of heating zone	3 zones	Output of HDPE	60 KG/H
Oil pump drive power	7.5 KW	Clamping force	45 KN
Max.size of mold	320X360mm	Mold stroke	148-508mm
Max.die diameter	140mm	Blow pressure	0.6mpa
Air volume	0.5 M³/MIN	Cooling water pressure	0.3mpa
Water consumption	40 L/MIN

PLC adds the man-machine interface, the touching type is operated, it is convenient to be simple and direct.
One pair of Iow plastification systems of Senior One, energy-efficient,mix and smelt outstandingly.
The centre enters the material, the pushing out of the mould head of many patterns, remove and make and converge the line completely, meet the demands of different structure products.
Two parallel, the mould organization of translation, the centre locks the mould, balance the strength of receiving,move rapidly, put it in place gentlely.
