| Max.die Diameter: | 80mm | Screw Drive Power: | 11 KW |
|---|---|---|---|
| No.of Heating Zone: | 3 Zones | Oil Pump Drive Power: | 5.5 KW |
| Air Volume: | 0.4 M/MIN | ||
| Highlight: | extrusion moulding machine,blow molding equipment |
||

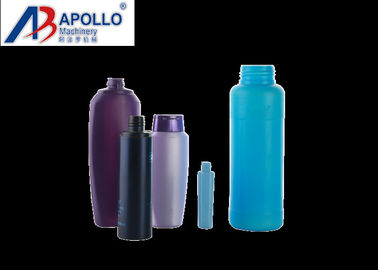

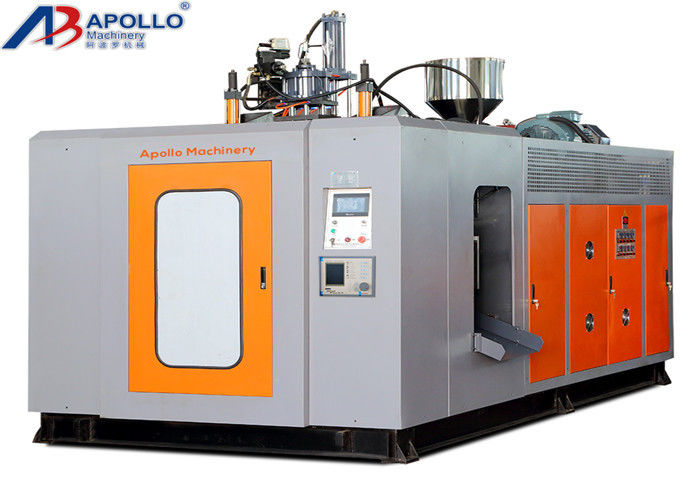

Fully Automatical Extrusion Blow Molding Machine ABLB45I To Make HDPE Blue Bottle
ABLB45 full automatic stretch extrusion blow molding machine was specially designed for plastic suction tube. Process of manufacture can divided into three parts:firstly,extrusion plastic,second,Stretch the hot tubel,the third step is blowing and forming in the mold.Advisable design plus perfect craft will guide you to get the perfect suction tubes.
The features of this machine:
1) It is sutiable for producing PP,PE,PVC and plastic containers and bottles in all shapes,the max.product volume is up to 2L.
2) It is mainly designed for small plastic products and plastic tude,expecialy for plastic suction tube.
3) Feeding system carries performance automaticly throgh a suction feeder. It can saves the labor cost for you. One worker can look after 5 set of this machine at the same time
4) Fully automatic process with low investment,high efficiency,quick and safe operation,easy for trouble-shooting and maintenance.
Features: (ABLB45)
| Max. Product volume | 2 liters | Dry cycle | 1550pc/h |
| Screw diameter | 45mm | Screw L/D ratio | 24 L/D |
| Screw drive power | 11 KW | Screw heating capacity | 3 KW |
| No.of heating zone | 3 zones | Output of HDPE | 30 KG/H |
| Oil pump drive power | 5.5 KW | Clamping force | 32 KN |
| Max.size of mold | 250X320mm | Mold stroke | 80-350mm |
| Max.die diameter | 80mm | Blow pressure | 0.6mpa |
| Air volume | 0.4 M/MIN | Cooling water pressure | 0.3mpa |
| Water consumption | 30 L/MIN |
PLC adds the man-machine interface, the touching type is operated, it is convenient to be simple and direct.
One pair of Iow plastification systems of Senior One, energy-efficient,mix and smelt outstandingly.
The centre enters the material, the pushing out of the mould head of many patterns, remove and make and converge the line completely, meet the demands of different structure products.
Two parallel, the mould organization of translation, the centre locks the mould, balance the strength of receiving,move rapidly, put it in place gentlely.
