| Screw Diameter: | 75mm | Screw Drive Power: | 22 KW |
|---|---|---|---|
| No.of Heating Zone: | 4 Zones | Oil Pump Drive Power: | 11 KW |
| Max.size Of Mold: | 400X450mm | Max.die Diameter: | 180mm |
| High Light: | 3l Bottle Plastic Extrusion Machine,4 heating zones Plastic Extrusion Machine,4 heating zones bottle extrusion machine |
||

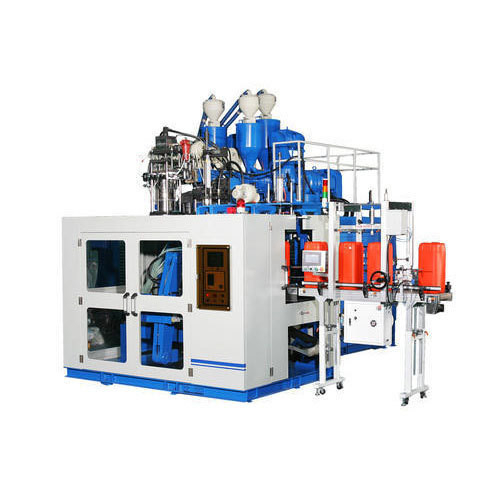

ABLB75 full automatic blow molding machine is specialy design for the production of various plastic children toys in all shapes and widely materials.Mechanical-double-arm clamping system ensures mould being tightly colsed under great pressure and high temperature.
Equipment with silencer and oil system to reduce the noise and friction.
Electricity saved,energy saved and speed more faster.
The max.size for mold:400x450x300(m
For more information about the machine,please don't hesitate to contact us.
Related technical parameter(ABLB75)
| Max. Product volume | 8 liters | Dry cycle | 800pc/h |
| Screw diameter | 75mm | Screw L/D ratio | 24 L/D |
| Screw drive power | 22 KW | Screw heating capacity | 5-6 KW |
| No.of heating zone | 4 zones | Output of HDPE | 100 KG/H |
| Oil pump drive power | 11 KW | Clamping force | 78 KN |
| Max.size of mold | 400X450mm | Mold stroke | 188-600mm |
| Max.die diameter | 180mm | Blow pressure | 0.6mpa |
| Air volume | 0.7 M/MIN | Cooling water pressure | 0.3mpa |
| Water consumption | 60 L/MIN |
PLC adds the man-machine interface, the touching type is operated, it is convenient to be simple and direct.
One pair of Iow plastification systems of Senior One, energy-efficient,mix and smelt outstandingly.
The centre enters the material, the pushing out of the mould head of many patterns, remove and make and converge the line completely, meet the demands of different structure products.
Two parallel, the mould organization of translation, the centre locks the mould, balance the strength of receiving,move rapidly, put it in place gentlely.
