Product Details:
Payment & Shipping Terms:
|
| Product Name: | 1L Lubricant Oil HDPE Bottle Plasitc Extrusion Automatic Blow Molding Machinery | Material: | HDPE |
|---|---|---|---|
| Color: | Blue | Automatic: | Yes |
| Station: | Double | Weight: | 7.5Ton |
| High Light: | Jerrycan HDPE Extrusion Blow Molding Machine,Plastic 5L Jerrycan Molding Machine,50 kw Jerrycan Molding Machine |
||

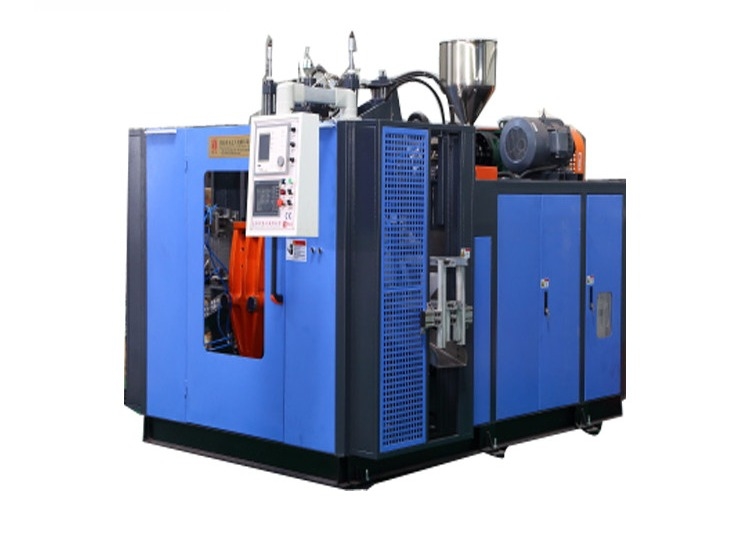

Plastic 5L Jerrycan Production HDPE Extrusion Blow Molding Machine
|
Basic Information
|
|||
|
Machine Type
|
Extrusion Blowing Machine, TVHED-5L
|
||
|
Max Volume
|
3L
|
||
|
Double/Single Station
|
double stations
|
||
|
Mono-layer/Multi-layer
|
single layer
|
||
|
Mould Cavity
|
1 cavity(based on product weight and shape)
|
||
|
Total Power
|
50 kw
|
||
|
Details
|
|||
|
1) Fewer manual processes involved with deflashing unit;
|
|||
|
2) hybrid system(hydraulic +servo motor driving); clean and easy to operate;
|
|||
|
3) The clamping unit is in 2 platen design, fast and stable in movement;
|
|||
Basic installation including
| Max. Product volume8 | 8 liters |
| Screw diameter | 75mm |
| Screw L/D ratio | 24 L/D |
| Screw drive power | 22KW |
| Screw heating capacity | 7-8KW |
| No.of heating zone | 4 zones |
| Output of HDPE | 100KG/H |
| Oil pump drive power | 7.5 KW |
| Clamping force | 80KN |
| Max.size of mold | 400x430mm |
| Mold stroke | 170-520mm |
| Template size | 380 X 420mm |
| Max.die diameter | 170mm |
| Blowing pressure | 0.6 mpa |
| Air Volume | 0.8M³/MIN |
| Cooling water pressure | 0.3mpa |
| Water consumption | 80L/MIN |
| Size of Machine | 4.2x2.2x2.7m |
| Weight of machine | 7.5ton |
| electronic parts | |
| Name | Trader |
| Micro computer control system | WIRETECH from TAIWAN/MUTISUBISHI |
| Temperature Controller | WIRETECH from TAIWAN/MUTISUBISHI |
| Auxiliary Relay | OMRON |
| contactor | Schneider from France |
| Electric motor |
Schneider from France Three phase 380V |
| Power Source | TAIWAN MEANWELL |
| Transducer | ABB from Switzerland |
| hydraulic parts | |
| Name | Trader |
| Oil pump | HIGH-TECH |
| Valve | YUKEN |
| Sealed part | HALLITE |
| air control system | |
| Name | Trader |
| Cylinder | AIRTAC |
| Air Valve | AIRTAC |
Contact Person: Ms. Haidee
