Double HDPE Blow Molding Machine Plastic Ice Pack Shell Produce 24 L/D 0.6mpa

Name: Double HDPE Blow Molding Machine Plastic Ice Pack Shell Produce 24 L/D 0.6mpa
Brand: ABC
SKU: ABLB75II
Rating: 4.6 (187 reviews)

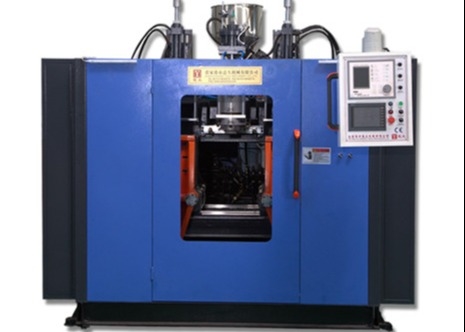

Large Image : Double HDPE Blow Molding Machine Plastic Ice Pack Shell Produce 24 L/D 0.6mpa

Product Details:

Place of Origin:	JIANGSU, CHINA
Brand Name:	ABC
Certification:	CE/SGS
Model Number:	ABLB75II

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Negotiable
Packaging Details:	Film packing/Carton packing/Wooden packing
Delivery Time:	50 working days
Payment Terms:	L/C, T/T
Supply Ability:	20 sets per month

Contact Now

Detailed Product Description

Product Name:	Baby Colorful Chair Plasitc Extrusion HDPE Blow Molding Machine	Material:	HDPE
Color:	Blue	Automatic:	Yes
Station:	Double	Weight:	7.5Ton
High Light:	Double HDPE Blow Molding Machine , 0.6mpa HDPE Blow Molding Machine , HDPE Blow Molding Machine 24 L/D

Plastic Ice Pack Shell Produce Making Machine HDPE Blow Molding Machine

Die head: Special steel and centre feed extrusion die head;
Extruder unit: adopt automatic temperature control unit of import,the screw united by frequency motor,hard tooth surface gear box to achieve stepless speed regulation;
Clampling device: Across the basement type double linear guide and move mould strengthen rigidity. Template is three bar with center clamping system
Hydraulic system: whole system adopt imported components, proportional control flow, Fast response, more stable, power consumption without loss;
Electric controlling system: it adopts Japan programmable controller, touch screen,the characteristic of it has direct manipulation and large information on board.

Max. Product volume8	8 liters
Screw diameter	75mm
Screw L/D ratio	24 L/D
Screw drive power	22KW
Screw heating capacity	7-8KW
No.of heating zone	4 zones
Output of HDPE	100KG/H
Oil pump drive power	7.5 KW
Clamping force	80KN
Max.size of mold	400x430mm
Mold stroke	170-520mm
Template size	380 X 420mm
Max.die diameter	170mm
Blowing pressure	0.6 mpa
Air Volume	0.8M³/MIN
Cooling water pressure	0.3mpa
Water consumption	80L/MIN
Size of Machine	4.2x2.2x2.7m
Weight of machine	7.5ton

The main components of the machine. ( ABLB75II)

electronic parts
Name	Trader
Micro computer control system	WIRETECH from TAIWAN/MUTISUBISHI
Temperature Controller	WIRETECH from TAIWAN/MUTISUBISHI
Auxiliary Relay	OMRON
contactor	Schneider from France
Electric motor	Schneider from France Three phase 380V
Power Source	TAIWAN MEANWELL
Transducer	ABB from Switzerland
hydraulic parts
Name	Trader
Oil pump	HIGH-TECH
Valve	YUKEN
Sealed part	HALLITE
air control system
Name	Trader
Cylinder	AIRTAC
Air Valve	AIRTAC

Double HDPE Blow Molding Machine Plastic Ice Pack Shell Produce 24 L/D 0.6mpa 0
