Detail Information

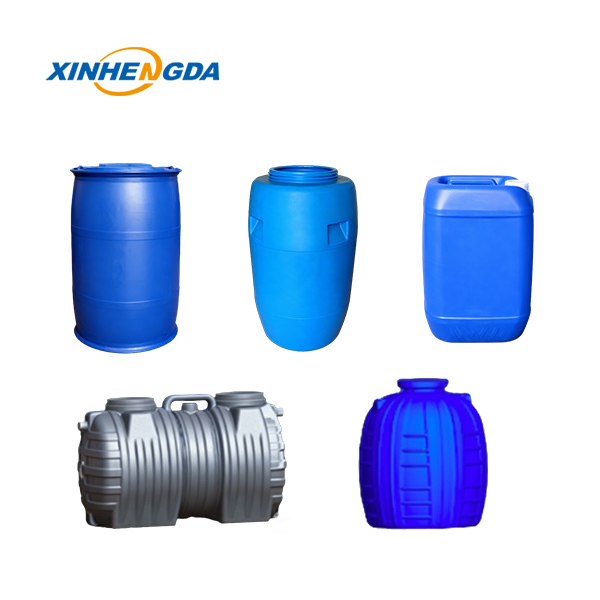

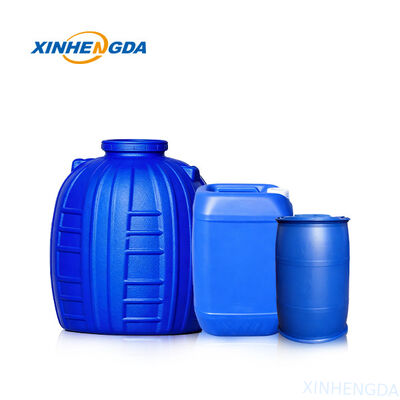

Application:	Bottle,water Tank,container,medical,road Barrel	Plastic Processed:	PET,PE,PP,HDPE,ABS
Blow Moulding Type:	Stretch Blow Moulding,Extrusion Blow Moulding,Injection Blow Moulding	Use:	Making PET Bottle,water Bottle,food, Field,cosmetic
Key Words:	Blow Molding Machine,machine,PET Stretch Bottle Blowing Molding Machine	Machine Type:	Blow Molding Machine
Coolingsystem:	Water Cooling	Condition:	New
Highlight:	1000L plastic drum making machine , custom plastic drum production line , water tank blow molding machine

Product Description

1000L Plastic Drum Making Machine Stable Operation Custom Plastic Drum Production Line Supplier

Product Introduction

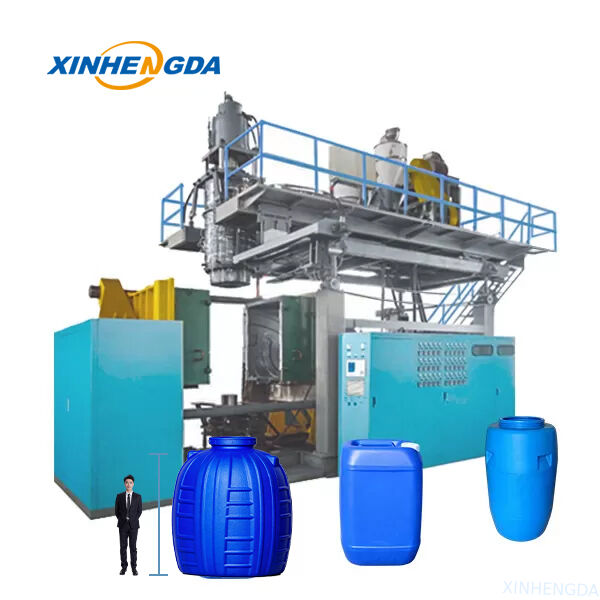

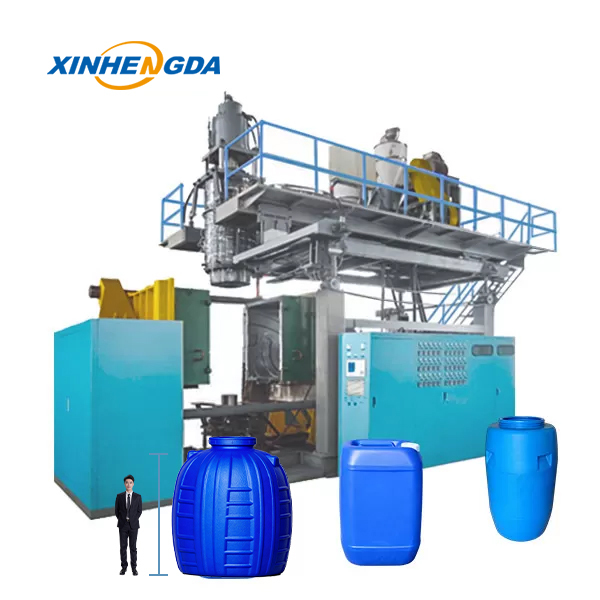

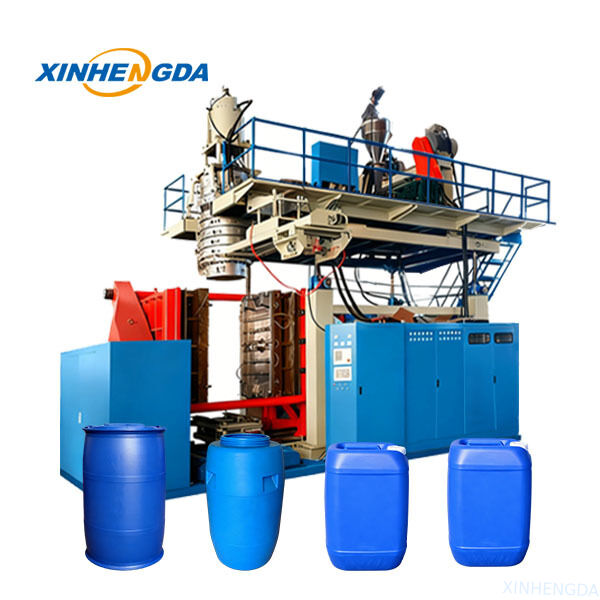

The XHD1000L fully automatic plastic blow molding machine is offered in two mainstream configurations, including the single-screw version (XHD1000FZ Single Screw) and twin-screw version (XHD1000FZ Double Screw). Professionally optimized for floating production processes, this equipment is compatible with HDPE and HMW-HDPE raw materials. It integrates full-automatic operation, high production capacity and superior material utilization rate to deliver stable and efficient manufacturing performance.The machine guarantees reliable quality and global compliance.We provide one-stop after-sales services covering on-site installation, equipment commissioning and operational skill training.

Tabular Parameters

1. Working Conditions

Working Conditions	Specific Requirements
Work Conditions	Well-ventilated indoor workshop; overhead crane height ≥9m; concrete foundation thickness ≥10cm; free from magnetic interference; humidity ≤90%; ambient temperature 0–45℃
Electrical Supply	3-phase 4-wire 50Hz, 380V-415V
Cooling Water	Cooling water temperature ≤20℃; water pressure ≥0.3MPa; water flow rate 50T/H
Pneumatic Source	Compressed air supply pressure 0.8MPa; product molding air pressure 0.2-0.4MPa
Raw Material	High-density polyethylene HDPE/HMW-HDPE

2. Equipment Overview

No.	Item	Single Screw Configuration	Double Screw Configuration
1	Extruder	140MM, L/D ratio 30:1	120/120MM, L/D ratio 30:1

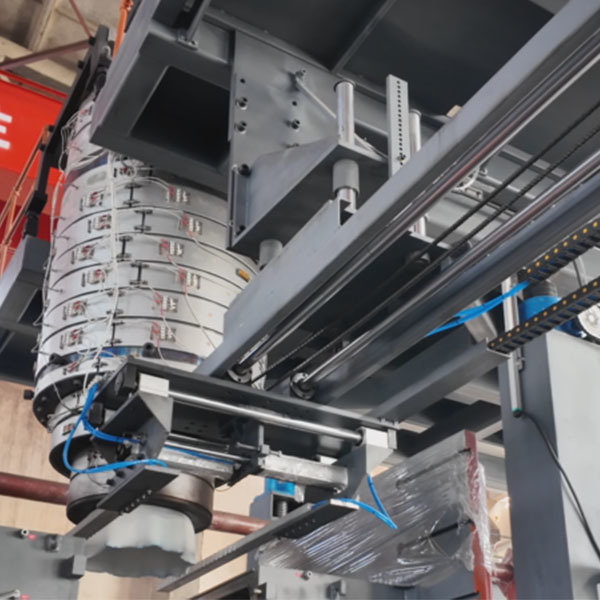

2	Machine Die Head	35L 26KGS, high-efficiency ceramic heating ring	35L 26KGS, high-efficiency ceramic heating ring
3	Clamping Unit	3-piece type clamping unit with 2 pull bars, clamping force 1000KN	3-piece type clamping unit with 2 pull bars, clamping force 1000KN
4	Machine Frame	Elevating machine frame	Elevating machine frame
5	Material Loader	Spring-type feeding machine (2.2KW)	Spring-type feeding machine (2.2KW)
6	Blow Seat	Multi-function blow seat (5 functions: air blowing/exhausting, sealing, etc.)	Multi-function blow seat (5 functions: air blowing/exhausting, sealing, etc.)
7	Robot	4-function adjustable robot (backward & forward movement, cooling function, etc.)	Adjustable 4-function robot (forward/backward movement, cooling, etc.)
8	Hydraulic System	Main hydraulic station with Taiwan Delta servo control + auxiliary hydraulic station for wall thickness adjustment	Taiwan Delta servo-controlled main hydraulic station + wall thickness control small hydraulic station

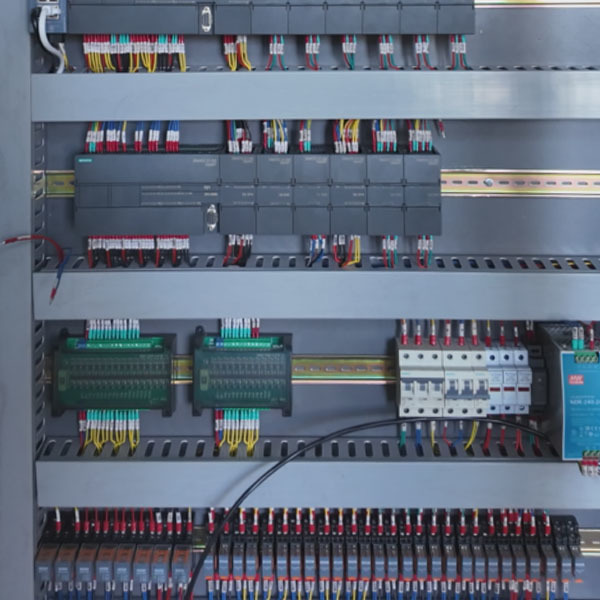

9	Electrical System	PLC/ Italy Gefran control system (optional configuration)	PLC/Italy Gefran control system (optional)
10	Machine Power Rating	Total power 252.375KW, average power 134KW	Total power 346KW, average power 176KW
11	Machine Dimension (L×W×H)	8×4×6.3M	8×4×6.3M
12	Machine Weight	25TON	30TON
13	Melting Capacity	280KGS	280KGS
14	Product Layers	1 layer	1 layer

3. Core Components Material & Configuration

Components	Material/Configuration
Screw/Barrel	38CrMoAl
Die Pin/Core Pin	45# steel
Accumulator	38CrMoAl & 45# steel (35L/26KGS)
Hydraulic Components	Taiwan Yuken pumps and valves
Air circuit components	STNC & AirTac pneumatic valves
Low-Voltage Apparatus	(contactors, circuit breakers, etc.)
Wall Thickness Control System	Japanese MOOG 200-point axial wall thickness controller
Servo System	Delta servo motor, Italy PHASE servo control system, Japan Sumitomo servo hydraulic pump

Product Core Functions

1. Efficient Material Plasticization

Fitted with high-performance IKV screw structure, the machine realizes efficient plasticization and uniform material mixing. It supports stable melting output with a processing capacity of 280KGS, ensuring consistent raw material fluidity for continuous production.

2. Precise Molding & Thickness Control

Equipped with a MOOG 200-point wall thickness control system, the equipment achieves ultra-precise thickness calibration for every product. It supports wide-range weight adjustment, effectively stabilizing product forming quality and improving finished product consistency.

3. Full Automatic Production Workflow

The intelligent robotic arm enables automatic product picking and unloading. The integrated five-function blow head independently completes blowing, exhausting, sealing and other molding procedures, realizing fully unmanned automatic operation.

4. Intelligent Energy-saving Temperature Control

Adopting segmented gradient heating technology, the die head and screw are equipped with independent temperature control modules. This scientific temperature adjustment method optimizes heating efficiency and significantly reduces overall energy consumption.

5. Simplified Daily Maintenance

With standalone pneumatic components and integrated manifold structure, the equipment facilitates quick inspection and daily operation. The standardized and tidy pipeline layout greatly simplifies maintenance work and saves troubleshooting time.

Product Competitive Advantages

1. High Cost Efficiency

Compared with rotational molding equipment, this machine reduces raw material consumption by 25%-35%. Equipped with frequency conversion control, it effectively lowers overall power consumption and production costs.

2. Higher Productivity & Labor Saving

It features higher output efficiency than traditional rotomolding machines. The full production line only requires 3-4 operators, and single machine can be operated by merely two workers, greatly saving labor costs.

3. Reliable Product Quality

Finished products deliver uniform wall thickness and outstanding impact resistance, with much better overall quality than conventional rotational molding products.

4. Stable Brand Configuration

Adopting premium branded core components from Delta and MOOG, the equipment maintains stable continuous operation with low failure rate during long-term mass production.

5. Complete After-sales Service

We provide free on-site installation and professional operation training, 12-month full machine warranty, and free spare parts for maintenance and fault repair.

Product Distinctive Features

1. Optimized Structural Design

Adopting premium lifting frame structure and multi-row screw hole back plate, the equipment enables fast and convenient mold replacement. Supported by hydraulic drive with a maximum moving stroke of 1600mm, it delivers strong compatibility and is perfectly suited for mass production of various floating products.

2. High-precision Intelligent Control

Equipped with Taiwan Delta servo hydraulic system, the machine features sensitive response and constant pressure output, achieving over 40% energy saving. The PLC automatic constant temperature system ensures stable molding temperature, while the multi-language operation panel can be switched freely to adapt to local operating habits of different countries.

3. Premium Durable Configuration

Key structural components adopt high-quality industrial materials. The lifting unit is made of cast steel for higher rigidity and durability. Meanwhile, it is fitted with Schneider solid-state relays, and high-temperature areas are equipped with professional AC contactors to ensure long-term stable operation.

4. Reliable Safety & Environmental Adaptability

The whole machine is equipped with protective covers and safety guardrails to avoid operational risks and ensure production safety. Adopting a dual cooling solution with barrel air cooling and feeding section water cooling, the equipment can work stably in indoor ambient temperatures ranging from 0°C to 45°C with strong environmental adaptability.

Application Scenarios

This professional blow molding equipment is uniquely optimized for the production of plastic float products, supporting large-scale batch manufacturing of various HDPE floating parts. It is widely applicable for producing marine buoys, vessel floating accessories and water platform floating bodies. The equipment serves a wide range of industrial scenarios, including aquaculture farming, offshore marine engineering and ship supporting facility manufacturing.

1000L Plastic Drum Making Machine Stable Operation Custom Plastic Drum Production Line Supplier
