Product Details:
Payment & Shipping Terms:
|
| Condition: | New | Application: | Bottle |
|---|---|---|---|
| Plastic Processed: | PE | Voltage: | 380V Or 415V |
| Dimension(L*W*H): | 4.3*2.2*3.0 M | Warranty: | 12 Months |
| Blow Moulding Type: | Extrusion Blow Moulding | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| Power: | 37 KW | Automatic: | Yes |
| Weight: | 15 Ton | Product Name:: | Plastic Blow Molding Machine / Injection / Cap Lid |
| Color:: | Blue, Dark, Orange | Material:: | HDPE, LDPE, PP |
| Capacity:: | 500*2 PC/H | Screw Diameter:: | 90 MM |
| Use:: | Hollow Moulding | HS:: | 8477301000 |
| Output Of HDPE:: | 150 KG/H | Mold Stroke:: | 300-800 MM |
| Cooling Water Pressure:: | 0.3 MPA | Port: | Shanghai |
| High Light: | Cap Lid Injection Blow Molding Machine,Plastic Blow Molding Machine,37 KW Extrusion Blow Molding Machine |
||

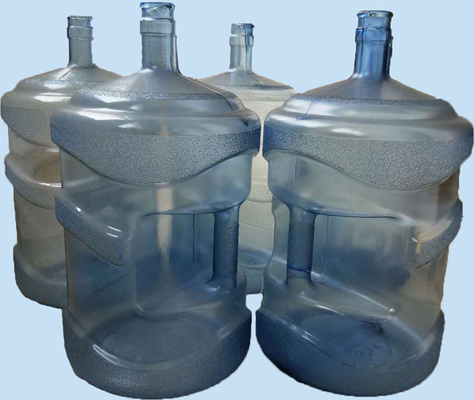

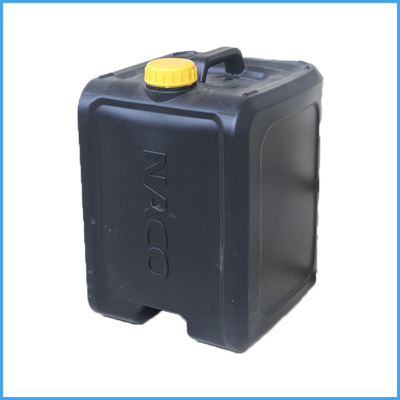

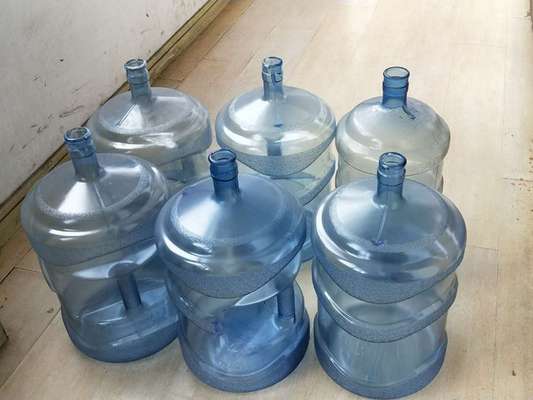

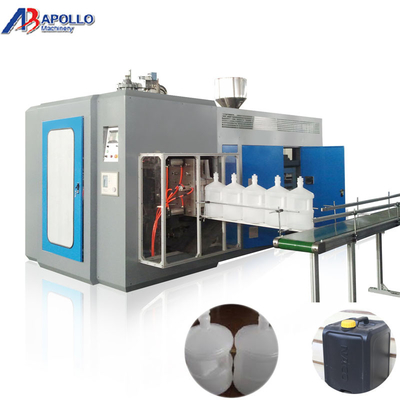

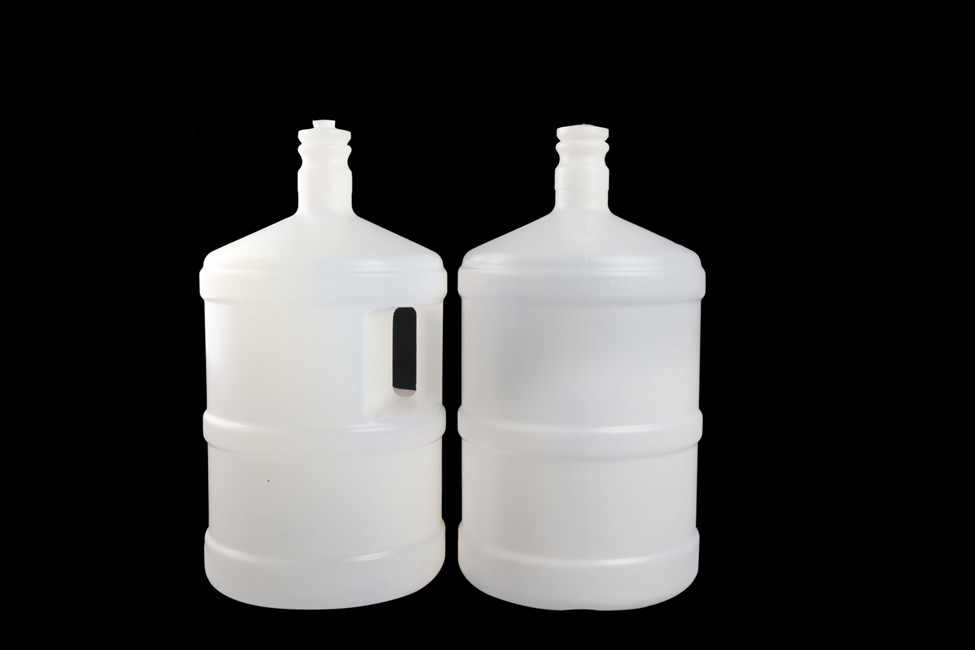

Extrusion Blow Molding Machine is suitable for producing PET, PP, PE, PVC, HDPE plastic containers and bottles in all shapes. It is widely used to produce the carbonated bottle, mineral water, pesticide bottle oil bottle cosmetics, wide-mouth bottle and hot fill bottle etc. Beverage bottle, cosmetic bottle, medicine bottle, jar etc.
(7) Auto lubricant system controlled by PLC.
Name: Color Touch Screen
Brand: WEINVIEW
Original: TAIWAN
1, All process setting, changing, searching, monitoring, and trouble diagnosis canbe done on the touch screen.
2, English or Chinese or other language is suitable.
3, Make all the process automatic.
Name: Computer Control System (PLC)
Brand: Mitisubishi
Original: JAPAN
Used to control all electrial components and touch screen
Name: Parison Controllor
Brand: MOOG
Original: JAPAN
1, Control the thickness of products.
2, It will make all the products that made by this machine are the same as each other.
Name: Electric Cabinet
Brand: Customized
Original: Customized
1, This part is the full electric components of the machine.
2, All electic components of the machine come from the world famous brand to ensure the quality and stability.
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Zhangjiagang ABC Machinery,a professional manufacturer of Extrusion Blow Molding Machine. Our company has a lot of models, suitable for the production of different shapes of products.
Our company has a relatively long history and our products have a great reputation in the blow molding machine. Not only our products sold in our domestic land, , our machine also exported to overseas.
Our company, Zhangjiagang ABC Machinery Co., Ltd, located in the city of Zhangjiagang, which lies conveniently near to the biggest city of China, Shanghai.
According to our excellent location, so that we can promise our customer that we will deliver the machine in time.
1. Q: -Can the machine customized only for my products?
A: - Yes, most ABC machines can be customized as per clients’ requirements, including the structure special design and brand of parts special request.
2. Q: -How about the molds ?
A: - ABC has its own mold manufacture company for injection and blowing mold. Machine and mold can be tested for samples and smooth matching before shipping. Mold raw material is various for optional.
3. Q: -What is the business item for this project ?
A: - a. Delivery Date: within 45 working days after receive the deposit and samples or drawing confirmed by buyer and ABC .
b. Port of Loading: SHANGHAI, CHINA.
c. Payment: 30% TT deposit, balance before shipment or 100% irrevocable L/C at sight.
d. Container needed: One 20GP container.
4. Q: -What is the warranty period?
A:- a.ABC machine Main parts is one year warranty with a lifelong maintenance.
b.Mould within one year or 5millions warranty
