Product Details:
Payment & Shipping Terms:
|
| Condition: | New | Application: | Bottle |
|---|---|---|---|
| Plastic Processed: | PC,PP,PE,PVC... | Voltage: | 220V/380V/415V/460V.. |
| Dimension(L*W*H): | 3.8*2.6*3.2M | Warranty: | 12MONTHS |
| Blow Moulding Type: | Extrusion Blow Moulding | Automatic: | Yes |
| Weight: | 8 TON | Power: | 21KW |
| After-sales Service Provided: | Overseas Service Center Available | Auto-deflashing Unit: | Available |
| Screw Design: | Single Screw | Output Of HDPE: | 130KG/H |
| Claming Force: | 100KN | Mold Storke: | 180-680MM |
| Max.die Diameter: | 140MM | Port: | Shanghai |
| High Light: | 5 Liters Plastic Drum Large Bottle,PVC Plastic Drum Bottle |
||

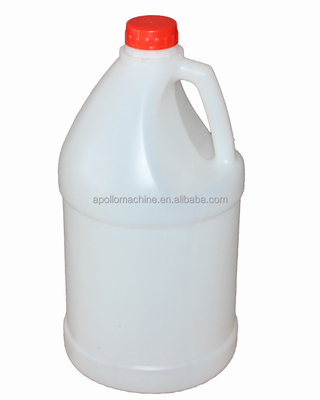

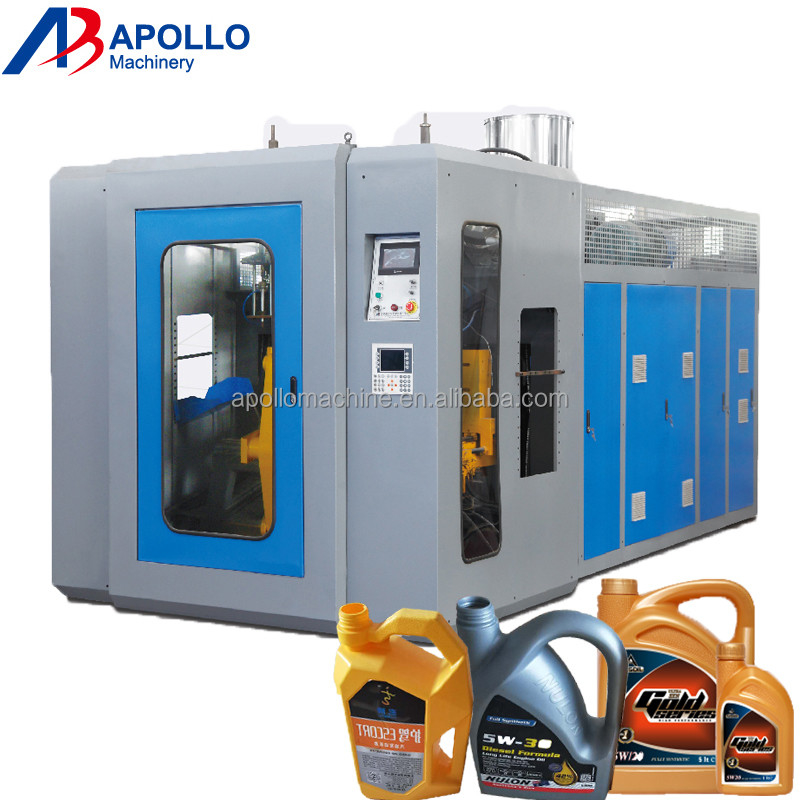

Making machine for 5 LITERS plastic drum / large bottle
ABLB75II double station single die head

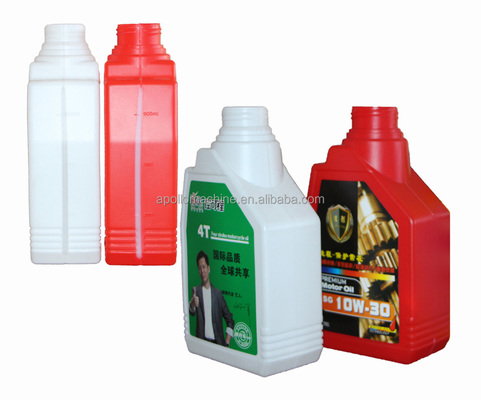

1.PE oil bottle making machine
2.European technology and imported spare parts
3.Easy to operate and maintain
4.CE proved
Technical Parameters: ( ABLB90)
|
Max. Product volume |
15 liters |
|
Output capacity |
120pcs/h |
|
Screw diameter |
90mm |
|
Screw L/D ratio |
24L/D |
|
Screw drive power |
30 KW |
|
Screw heating capacity |
6 KW |
|
No.of heating zone |
4 zones |
|
Output of HDPE |
130KG/H |
|
Oil pump drive power |
11 KW |
|
Clamping force |
110KN |
|
Max.size of mold |
530 X 550mm |
|
Mold stroke |
180-680mm |
|
Max.die diameter |
200mm |
|
Blowing pressure |
0.6 mpa |
|
Air Volume |
0.7 M³/MIN |
|
Cooling water pressure |
0.3mpa |
|
Water consumption |
70L/MIN |
|
Size of Machine |
3.8x2.2x2.6m |
|
Weight of machine |
8 ton |
ABC Machinery Group is located in the high-speed developing port city-Zhangjiagang, which is nearby the international big city-Shanghai. Our Group have two branch factories, One Zhangjiagang ABC Machinery Co., Ltd. specializes in making various kinds of blowing molding machines for the solutions for plastic industry,which is famous factory in China; the other is Jiangsu Songlin Automobile Parts Co,. Ltd lie in Taixing city ,and specialize in producing the diesel engine parts , all the...
