Product Details:
Payment & Shipping Terms:
|
| Condition: | New | Application: | Bottle |
|---|---|---|---|
| Plastic Processed: | PE | Year: | 2019 |
| Voltage: | 220V&380V | Dimension(L*W*H): | 4.6*2.8*3.6M |

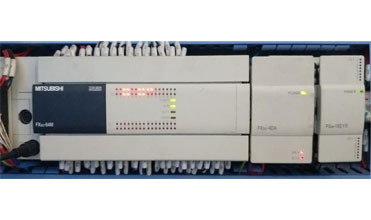

| Hollow Part Volume: | 29CBM | PLC Brand: | MITSUBISHI |
| Power (kW): | 49 | Key Selling Points: | Long Service Life |
| Warranty: | 1 Year | Applicable Industries: | Home Use |
| Blow Moulding Type: | Extrusion Blow Moulding | Automatic: | Yes |
| High Pressure Valve Brand: | SMC | After-sales Service Provided: | Free Spare Parts, Online Support, Field Installation, Commissioning And Training, Field Maintenance And Repair Service, Video Technical Support |
| Clamping Force: | 160KN | Weight (KG): | 11000 |
| Product Name: | Jerry Can 20L Blow Molding Machine | Color: | Blue+gray |
| PLC: | MITUBISHI | Type: | Extrusion Blow Molding Equipment |
| Advantages: | Low Energy Consumption | Port: | SHANGHAI |
| High Light: | Jerry Can Blow Moulding Machine,20L Blow Molding Machine,Home Use Extrusion Blow Moulding Machine |
||

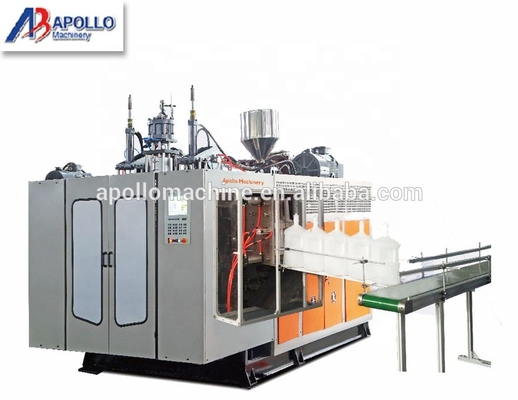

jerry can 20L blow molding machine
Specification of the machine :
1,Double- Crank four-pull bar Colsing Molding, Balance of fixed sliding
2,Sealing and Tensile adopt double pole combined, useful for products forming !
3,Advanced Air route design, Single ,double intake both ok ! Low pressure mechanical closing moulds , sealing, tensile, high pressure blowing bottles !
4,Microcomputer automatic controller, Simple and easy operation
5,Perform Bottles heating by infrared ray, Controlled constant pressure control , Frequency controlled , To achieve the best accuracy of blowing
6, Functional and Economical types of investment
7, Small Space , Structural stability
8, Simple Operation , one person can be ok !
9,Also can supply 3-5 gallon different sizes of perform bottles and caps
|
Parament and Configuration |
|||
|
Theory Capacity |
According to different of bottles
|
80-100pcs/h |
|
|
Max.Volume of bottles |
According to number of cavity |
7L(two Cavity) 30L (one Cavity) |
|
|
Moulds |
one or two cavity |
1or2 cavities |
|
|
Max.Diameter of bottles |
355MM |
||
|
Max.height |
453MM |
||
|
Moulds Area |
600*600MM |
||
|
Max.Thickness of Moulds |
390MM |
||
|
Stroke moulds |
350MM |
||
|
Max.Stretch Length |
500MM |
||
|
Closing Moulds |
320KN |
||
|
Power |
Power |
220~380V,50~60Hz |
|
|
Heating Power |
27.8KW |
||
|
Working Pressure |
0.8Mpa |
||
|
Blowing Pressure |
3.0Mpa |
||
|
Size of Main machine |
L*W*H |
2250*740*1900MM |
|
|
Size of Heating machine |
L*W*H |
2440*620*1740MM |
|
|
weight of main machine |
1000Kg |
||
|
weight of heating machine |
400Kg |
||
|
auxiliary machine |
Air compressor for high pressure |
1.2M3/3.0Mpa/15Kw |
|
|
Dryer machine |
1.0M3/3.0Mpa/375KW |
||
|
Air filter 2 |
1.0m3/3.0Mpa |
||
Some more pictures about our machine and its products
