Product Details:
Payment & Shipping Terms:
|
| Condition: | New | Application: | Bottle |
|---|---|---|---|
| Plastic Processed: | PE | Year: | 2019 |
| Voltage: | 220V Or 380V Or 415V | Dimension(L*W*H): | 4.1*2.2*3.5 M |
| Hollow Part Volume: | 29CBM | PLC Brand: | MITSUBISHI |
| Power (kW): | 30 | Key Selling Points: | Long Service Life |
| Warranty: | 12months | Applicable Industries: | Home Use |
| Blow Moulding Type: | Extrusion Blow Moulding | Automatic: | Yes |
| High Pressure Valve Brand: | SMC | Rotary Cylinder Brand: | SMC |
| After-sales Service Provided: | Free Spare Parts, Online Support, Field Installation, Commissioning And Training, Field Maintenance And Repair Service, Video Technical Support | Clamping Force: | 140KN |
| Weight (KG): | 11000 | Product Name: | Bottle /HDPE Jerry Can Blow Mold Machine |
| Material: | HDPE LDPE LLDPE | Color: | Yellow |
| Machine Type: | Extrusion | Weight: | 11t |
| Power(W): | 62.3W | ||
| High Light: | HDPE Jerry Can Blow Mold Machine,4.1*2.2*3.5 M Jerry Can Blow Mold Machine,29 CBM Bottle Blow Mold Machine |
||

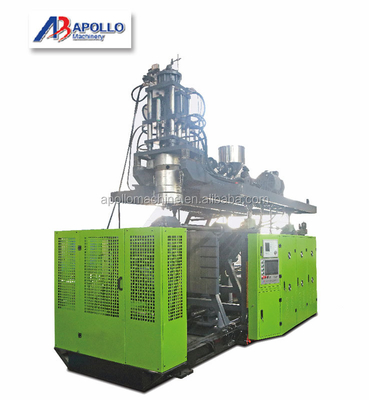

Bottle /HDPE Jerry Can Blow Mold Machine
ABLD75(single station single die head)

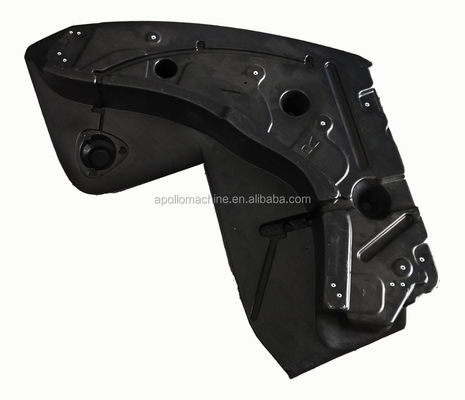

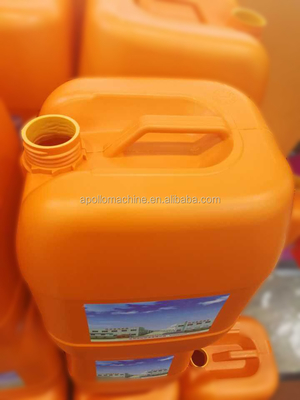

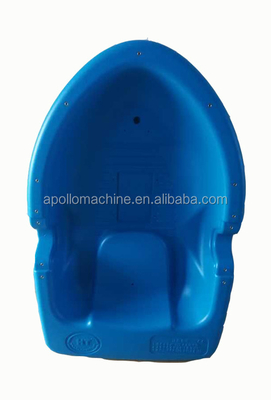

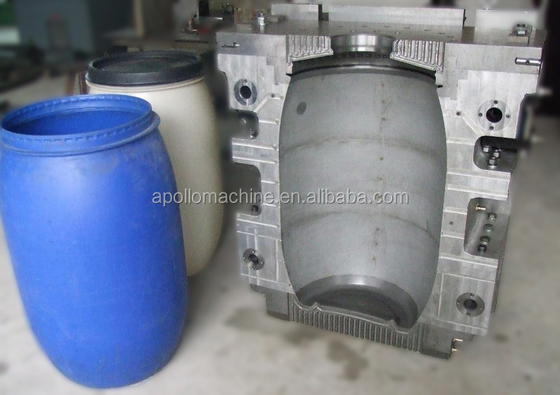

ABLD75 extrusion blow moulding machine was specially designed for making plastic water tanks,plastic cans, lubricant oil bottles,plastic drums, plastic toys and other plastic containers not over 25L.
The features of this machine:
(1)It is suitable for producing PE,HDPE,PP, PVC so on,plastic containers and bottles in all shapes are available,the max.product volume is up to 25L.
(2)Single station single die head design,very easy to operate and maintenance.
(3)Most components of the blow moulding machine are from famous world brand.
(4)Fully automatic process with low power consumption,high efficiency,quick and safe operation,easy for maintenance.
(5)Accumulation die head,MOOG parison controller equipped.
(6)Bottom blow technology make the product perfect.
(7)Auto lubricant system controlled by PLC.
|
Main parts of Machine |
Picture |
Explanation |
|
Oil Pump |
|
Oil pump From Japan YUKEN driving the machine |
|
Computer control system (PLC) |
|
Japanese Mitisubishi PLC
Used to control all electrial components and touch screen |
|
Parison controllor |
|
MOOG parison Controllor Control the thickness of products |
|
Screw cutter device |
|
This device is able to remove the extra top of gallons
|
|
Die head |
|
Accumulation die head |
|
Manipulator |
|
Manipulator will Take the finished Product out automatically |
|
Electric Cabinet |
|
This part is the full electric components of the machine |
|
electronic parts |
|
|
Name |
Trader |
|
Micro computer control system |
Japanese MITSUBISHI |
|
Temperature Controller |
TAIWAN YANHUA PID |
|
Auxiliary Relay |
OMRON |
|
contactor |
Schneider from France |
|
Electric motor |
Three phase 220V or 380V |
|
Power Source |
TAIWAN MEANWELL |
|
Transducer |
TAIDA FROM CHINA |
|
hydraulic parts |
|
|
Name |
Trader |
|
Oil pump |
TAIWAN HIGH-TECH |
|
Valve |
JAPAN YUKEN |
|
Oil pump and connection |
JAPAN YUKEN |
|
Sealed part |
HALLITE |
|
air control system |
|
|
Name |
Trader |
|
Cylinder |
AIRTAC |
|
Air Valve |
FESTO |
Technical Parameters: ( ABLD75 )
|
Max. Product volume |
25 liters |
|
Output capacity |
80~120pc/h |
|
Screw diameter |
75mm |
|
Screw L/D ratio |
25 L/D |
|
Screw drive power |
30 KW |
|
Screw heating capacity |
16 KW |
|
No.of heating zone |
4 zones |
|
Output of HDPE |
100 KG/H |
|
Oil pump drive power |
22 KW |
|
Clamping force |
210 KN |
|
Max.size of mold |
550X650mm |
|
Mold stroke |
350-780mm |
|
Max.die diameter |
280mm |
|
Die heating power |
5.3 KW |
|
Die heating segments |
4 zones |
|
Blowing pressure |
0.8mpa |
|
Air volume |
0.8 M³/MIN |
|
Cooling water pressure |
0.3mpa |
|
Water consumption |
60 L/MIN |
