Product Details:
Payment & Shipping Terms:
|
| Condition: | New | Video Outgoing-inspection: | Provided |
|---|---|---|---|
| Machinery Test Report: | Provided | Marketing Type: | New Product 2022 |
| Warranty Of Core Components: | 1 Year | Core Components: | PLC |
| Application: | Bottle | Plastic Processed: | PE |
| Year: | 2022 | Voltage: | 380V Or 415v |
| Dimension(L*W*H): | 3.8*2.6*3.2m | Clamping Force (kN): | 160 |
| Screw L/D Ratio: | 24 | Screw Diameter (mm): | 90 Mm |
| Output (kg/h): | 10 Kg/h | Automation: | Automatic |
| No. Of Screw Heating Zone: | 4 | Screw Heating Power(kW): | 8 KW |
| Extruder Motor Power(kW): | 45 KW | Mold Platen Size(Width)(mm): | 550 Mm |
| Mold Platen Size(Height)(mm): | 550 Mm | Air Pressure(MPa): | 0.6 MPa |
| Air Comsumption(m³/min): | 0.9 M³/min | Die Head Heating Power(kW): | 5 KW |
| Accumulator Capacity(L): | 2 L | Power (kW): | 45 |
| Weight (T): | 11 | Key Selling Points: | Long Service Life |
| Warranty: | 1 Year | Applicable Industries: | Home Use |
| Showroom Location: | Egypt, Saudi Arabia | Blow Moulding Type: | Extrusion Blow Moulding |
| Automatic: | Yes | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| Max Product Volume: | 15L | Power(W): | 47Kw |
| Weight: | 8ton | Port: | Shanghai |
| High Light: | Alcohol Liquid Bottle Blow Mould Machine,15L Alcohol Bottle Blow Mould Machine,Automatic Alcohol Bottle Blow Mould Machine |
||
plastic processing machinery

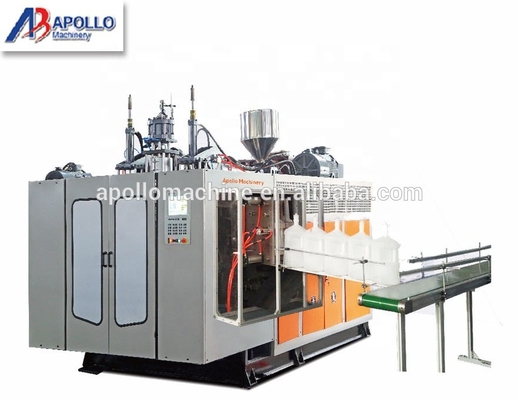

Model No.: ABLB90(single station single die head)
ABLB90 auto plastic can making machine was specially designed for making plastic water tanks, plastic cans, lubricant oil bottles, plastic drums, plastic toys and other plastic containers not over 20L.
The features of this machine:
(1)It is suitable for producing PE,HDPE,PP, PVC so on,plastic containers and bottles in all shapes are available,the max.product volume is up to 20L.
(2)Single station single die head design,very easy to operate and maintenance.
(3)Most components of the blow moulding machine are from famous world brand.
(4)Fully automatic process with low power consumption,high efficiency,quick and safe operation,easy for maintenance.
(5)Multiple screw available for double layer or tranparent liquid lever line.
(6)Auto deflashing device available,can remove the extra parts of bottles.

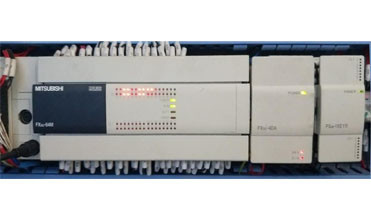

(7)Auto lubricant system controlled by PLC.
Technical Parameters: ( ABLB90 )
Max. Product volume | 20 liters |
Output capacity | 1680~1820pc/day |
Screw diameter | 90mm |
Screw L/D ratio | 25 L/D |
Screw drive power | 37KW |
Screw heating capacity | 18 KW |
No.of heating zone | 4 zones |
Output of HDPE | 130KG/H |
Oil pump drive power | 30 KW |
Clamping force | 260 KN |
Max.size of mold | 450-1000mm |
Mold stroke | 700 X 950mm |
Max.die diameter | 340mm |
Blowing pressure | 0.8 mpa |
Air Volume | 1 M³/MIN |
Cooling water pressure | 0.3mpa |
Water consumption | 90 L/MIN |
Size of Machine | 4.4x2.6x3.1m |
Weight of machine | 9.3ton |
