Product Details:
Payment & Shipping Terms:
|
| Condition: | New | Video Outgoing-inspection: | Provided |
|---|---|---|---|
| Machinery Test Report: | Provided | Marketing Type: | New Product 2022 |

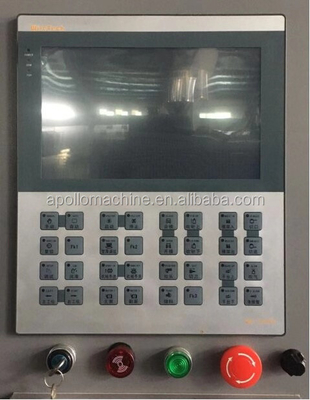

| Warranty Of Core Components: | 1 Year | Core Components: | PLC |
| Application: | Bottle | Plastic Processed: | PE |
| Year: | 2022 | Voltage: | 380V Or 415v |
| Dimension(L*W*H): | 3.8*2.6*3.2m | Clamping Force (kN): | 160 |
| Screw L/D Ratio: | 24 | Screw Diameter (mm): | 90 Mm |
| Output (kg/h): | 10 Kg/h | Automation: | Automatic |
| No. Of Screw Heating Zone: | 5 | Screw Heating Power(kW): | 8 KW |
| Extruder Motor Power(kW): | 45 KW | Mold Platen Size(Width)(mm): | 550 Mm |
| Mold Platen Size(Height)(mm): | 550 Mm | Air Pressure(MPa): | 0.6 MPa |
| Air Comsumption(m³/min): | 0.9 M³/min | Die Head Heating Power(kW): | 5 KW |
| Accumulator Capacity(L): | 2 L | Power (kW): | 45 |
| Weight (T): | 11 | Key Selling Points: | Long Service Life |
| Warranty: | 1 Year | Applicable Industries: | Home Use |
| Showroom Location: | Saudi Arabia | Blow Moulding Type: | Extrusion Blow Moulding |
| Automatic: | Yes | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| Max Product Volume: | 15L | Power(W): | 47Kw |
| Weight: | 8ton | Port: | Shanghai |
| High Light: | PLC Liquid Bottle Blow Mould Machine,3.8*2.6*3.2m Liquid Bottle Processing Machine,Plastic Liquid Bottle Blow Mould Machine |
||
