Product Details:
Payment & Shipping Terms:
|
| Condition: | New | Video Outgoing-inspection: | Provided |
|---|---|---|---|
| Machinery Test Report: | Provided | Marketing Type: | New Product 2020 |
| Warranty Of Core Components: | 1 Year | Core Components: | PLC, Engine, Bearing, Gearbox, Motor, Gear, Pump |
| Application: | Bottle | Plastic Processed: | PP, HDPE, PE, PE/PP, HDPE/PP |
| Voltage: | 380/220/415V | Dimension(L*W*H): | 4.3*2.2*3.0 |
| Clamping Force (kN): | 160 | Screw Diameter (mm): | 90 Mm |
| Output (kg/h): | 145 Kg/h | Automation: | Automatic |
| Screw Heating Power(kW): | 30 KW | Extruder Motor Power(kW): | 45 KW |
| Mold Platen Size(Width)(mm): | 450 Mm | Mold Platen Size(Height)(mm): | 400 Mm |
| Air Pressure(MPa): | 1 MPa | Air Comsumption(m³/min): | 1 M³/min |
| Die Head Heating Power(kW): | 35 KW | Accumulator Capacity(L): | 0 L |
| Power (kW): | 45 | Weight (T): | 11 |
| Key Selling Points: | Easy To Operate | Warranty: | 1 Year |
| Applicable Industries: | Manufacturing Plant | Showroom Location: | Saudi Arabia |
| Blow Moulding Type: | Extrusion Blow Moulding | Automatic: | Yes |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Max. Product Volume: | 20 Liters |
| Screw Diameter: | 90mm | Screw Drive Power: | 30KW |
| Port: | SHANGHAI | ||
| High Light: | 20 Liter Plastic Extrusion Blow Moulding Machine,Water Jar Extrusion Blowing Moulding Machine,Pc Bottle Extrusion Blow Mould Machine |
||
Plastic extrusion blow molding machine machinery

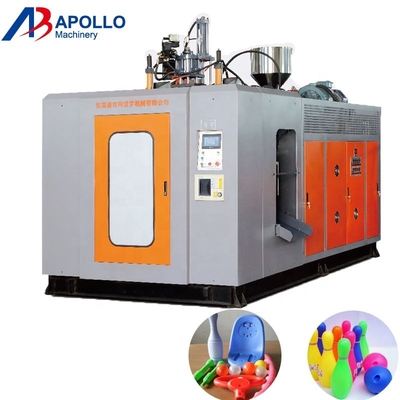

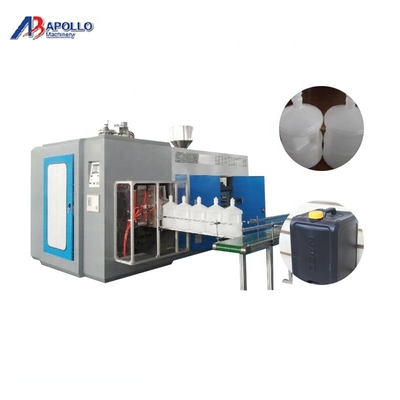

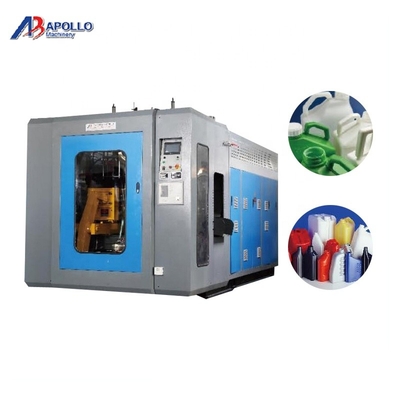

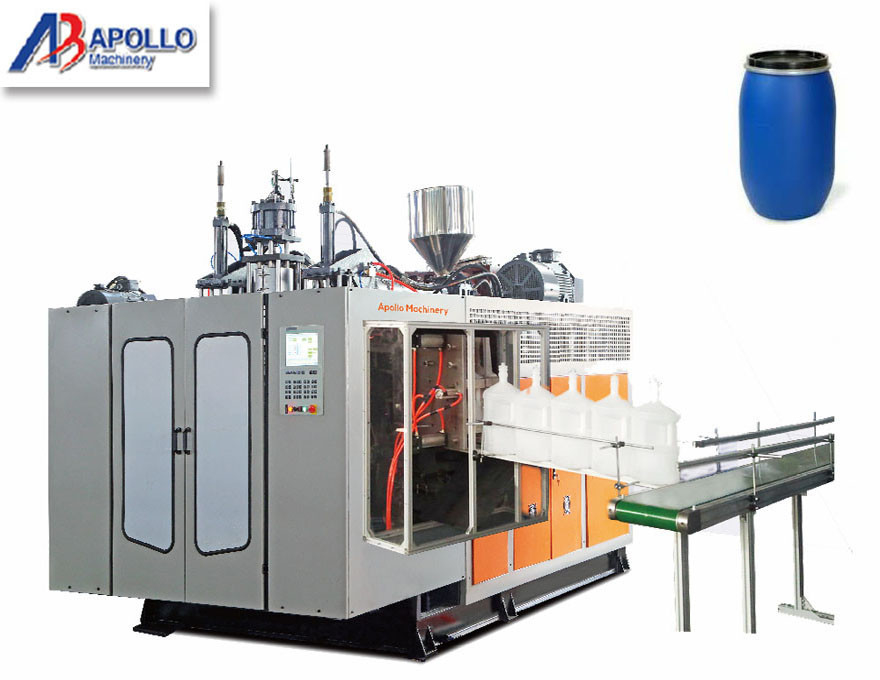

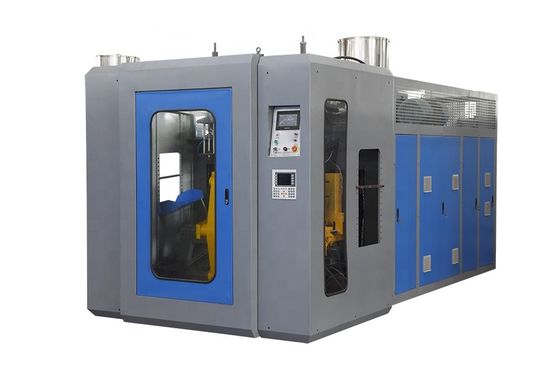

ABLB90 auto plastic can making machine was specially designed for making plastic water tanks, plastic cans, lubricant oil bottles, plastic drums, plastic toys and other plastic containers not over 20L.
The features of this machine:
(1)It is suitable for producing PE,HDPE,PP, PVC so on,plastic containers and bottles in all shapes are available,the max.product volume is up to 20L.
(2)Single station single die head design,very easy to operate and maintenance.
(3)Most components of the blow moulding machine are from famous world brand.
(4)Fully automatic process with low power consumption,high efficiency,quick and safe operation,easy for maintenance.
(5)Multiple screw available for double layer or tranparent liquid lever line.
(6)Auto deflashing device available,can remove the extra parts of bottles.
(7)Auto lubricant system controlled by PLC.
Suitable products making:
The main components of the machine. ( ABLB90 )
|
Max.size of mold |
530X550mm |
|
Mold stroke |
180-680mm |
|
Max.die diameter |
200mm |
|
Blowing pressure |
0.6mpa |
|
Air Volume |
0.7 M³/MIN |
|
Cooling water pressure |
0.3mpa |
|
Water consumption |
70 L/MIN |
|
Size of Machine |
3.8x2.6x3.2m |
|
Weight of machine |
8ton |
|
electronic parts |
|
|
Name |
Trader |
|
Micro computer control system |
Japanese MITSUBISHI |
|
Temperature Controller |
TAIWAN YANHUA PID |
|
Auxiliary Relay |
OMRON |
|
contactor |
Schneider from France |
|
Electric motor |
Three phase 220V or 380V |
|
Power Source |
TAIWAN MEANWELL |
|
Transducer |
TAIDA FROM CHINA |
|
hydraulic parts |
|
|
Name |
Trader |
|
Oil pump |
TAIWAN HIGH-TECH |
|
Valve |
JAPAN YUKEN |
|
Oil pump and connection |
JAPAN YUKEN |
|
Sealed part |
HALLITE |
|
air control system |
|
|
Name |
Trader |
|
Cylinder |
AIRTAC |
|
Air Valve |
FESTO |
WARRANTY:
We warranty the quality of this machine for 12 months ,if there is any problem with the machine ,or any main parts are broken, we will repair it or replace new for free.
The seller should train two or three operating man for free. (Travel and hotel is by buyer’s expenses.)
The buyer should place the machine to the right position and inform the supplier after the machine reach the buyer’s factory. The seller will send the engineer to test run the machine until it is running in normal state. The buyer will bear his round-trip air tickets, accommodation, and hotel and so on in BUYER’S side. Besides,the buyer will pay 40USD/day/person for technology fee.
