Product Details:
Payment & Shipping Terms:
|
| Condition: | New | Video Outgoing-inspection: | Provided |
|---|---|---|---|
| Machinery Test Report: | Provided | Marketing Type: | New Product 2020 |
| Warranty Of Core Components: | 1 Year | Core Components: | PLC, Engine, Bearing, Gearbox, Motor, Gear, Pump |
| Application: | Bottle | Plastic Processed: | PP, HDPE, PE, PE/PP, HDPE/PP, LDPE,PE,PP, HDPE |
| Voltage: | 220V Or 380V | Dimension(L*W*H): | 3.6*1.6*2.8m |
| Clamping Force (kN): | 320 | Screw Diameter (mm): | 90 Mm |
| Output (kg/h): | 150 Kg/h | Automation: | Automatic |
| Screw Heating Power(kW): | 18 KW | Extruder Motor Power(kW): | 45 KW |
| Mold Platen Size(Width)(mm): | 550 Mm | Mold Platen Size(Height)(mm): | 550 Mm |
| Air Pressure(MPa): | 1.2 MPa | Air Comsumption(m³/min): | 1 M³/min |
| Die Head Heating Power(kW): | 20 KW | Accumulator Capacity(L): | 7.6 L |
| Power (kW): | 45 | Weight (T): | 15 |
| Key Selling Points: | Easy To Operate | Warranty: | 1 Year |
| Applicable Industries: | Manufacturing Plant | Showroom Location: | Viet Nam, Saudi Arabia |
| Blow Moulding Type: | Extrusion Blow Moulding | Automatic: | YES |
| After-sales Service Provided: | Field Maintenance And Repair Service | After Warranty Service: | Video Technical Support |

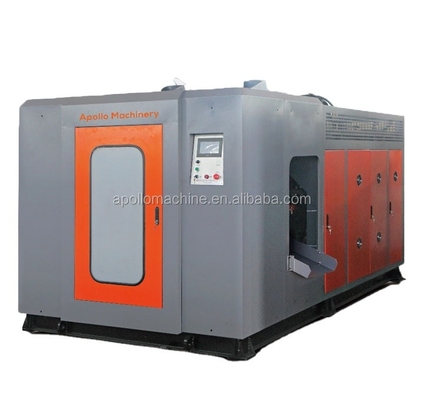

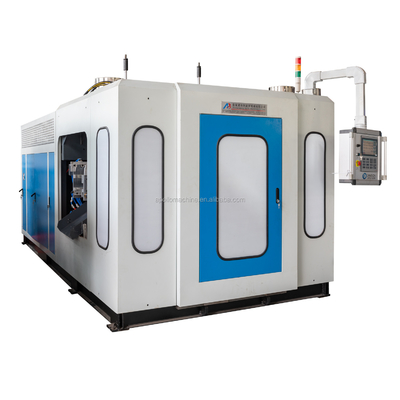

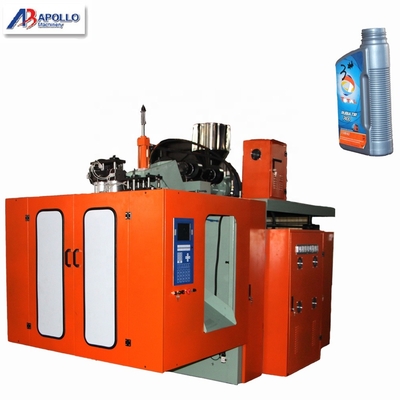

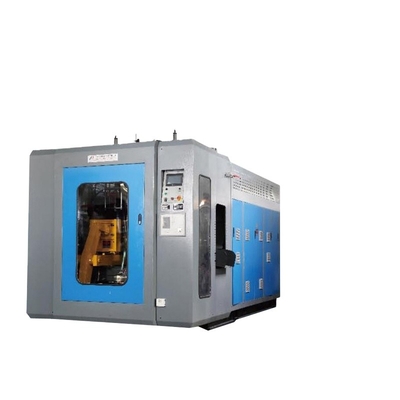

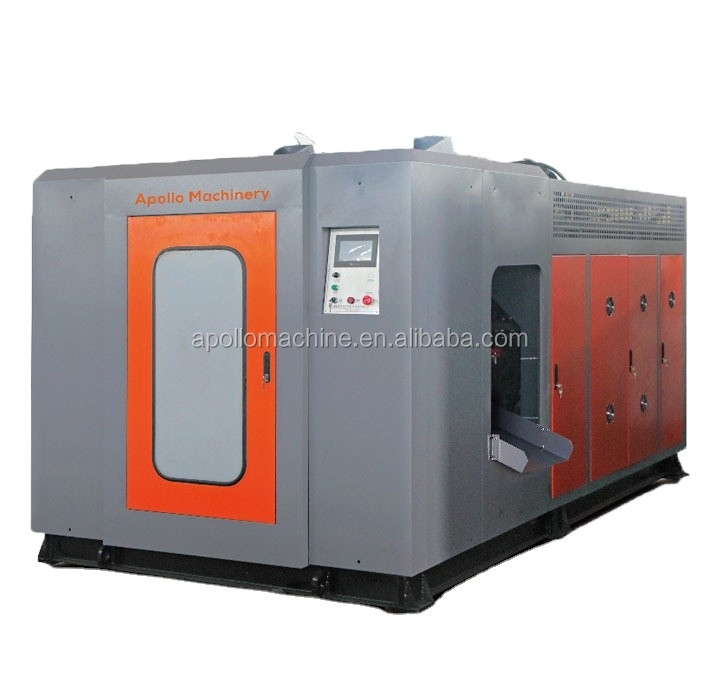

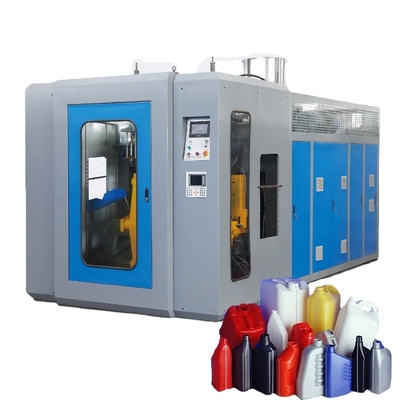

| Product Name: | Automatic Blowing Molding Machine | Port: | Shanghai |
| High Light: | Lubricant Bottle Blow Mold Machine,90 mm Lubricant Bottle Blow Mold Machine,High Speed Plastic Bottle Mold Machine |
||
Extrusion Blow Moulding Blow Moulding Type and Bottle Application blow molding machine
Technical Parameters: ( ABLD82)
Technical Parameters: ( ABLD82)
|
Max. Product volume |
30 liters |
|
Out put capacity |
2160~2400pc/day |
|
Screw diameter |
82mm |
|
Screw L/D ratio |
38L/D |
|
Screw drive power |
30KW |
|
Screw heating capacity |
16.7 KW |
|
No.of heating zone |
5zones |
|
Output of PC |
160KG/H |
|
Oil pump drive power |
15 KW |
|
Clamping force |
220KN |
|
Max.size of mold |
550X650mm |
|
Mold stroke |
355-800mm |
|
Max.die diameter |
150mm |
|
Blowing pressure |
1.2 mpa |
|
Air Volume |
1.0 M³/MIN |
|
Cooling water pressure |
0.3mpa |
|
Water consumption |
100 L/MIN |
|
Size of Machine |
6.0X2.2X4.2m |
|
Weight of machine |
12ton |
