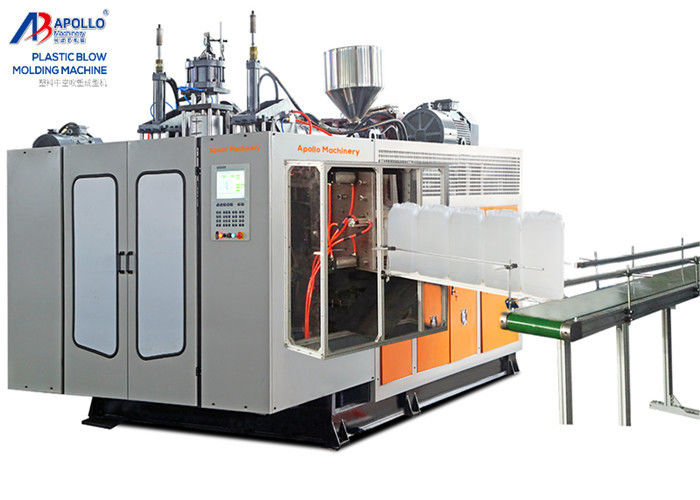

Water Bottle Automatic Blow Moulding Machine 4 Gallon Clamping Force 110KN

Large Image : Water Bottle Automatic Blow Moulding Machine 4 Gallon Clamping Force 110KN

Product Details:

Place of Origin:	JIANGSU, CHINA
Brand Name:	ABC
Certification:	CE/SGS
Model Number:	ABLB90II

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Negotiable
Packaging Details:	Film packing/Carton packing/Wooden packing
Delivery Time:	50 working days
Payment Terms:	L/C, T/T
Supply Ability:	20 sets per month

Contact Now

Detailed Product Description

Max. Product Volume:	18 Liters（round Product）	Out Put Capacity:	130-140pcs/h
Dry Cycle:	500*2pcs/h	Screw Diameter:	90mm
Screw L/D Ratio:	24 L/D	Screw Drive Power:	37KW
Highlight:	plastic container manufacturing machine , extrusion moulding machine

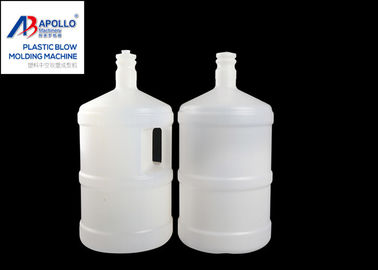

Full automatic 4 gallon water bottle blow molding machine

Brand: ABC
Code: 8477309000

Product Description

Max. Product volume	18 liters(round product)
Out put capacity	130-140pcs/h
Dry cycle	500*2pcs/h
Screw diameter	90mm
Screw L/D ratio	24 L/D
Screw drive power	37KW
Screw heating capacity	8 KW
No.of heating zone	4 zones
Output of HDPE	130KG/H
Oil pump drive power	11 KW
Clamping force	110KN
Max.size of mold	530*550mm
Mold stroke	180-680mm
Max.die diameter	200mm
Blowing pressure	0.6 mpa
Air Volume	0.9 M/MIN
Cooling water pressure	0.3mpa
Water consumption	90 L/MIN
Size of Machine	4.2x3x3.1m
Weight of machine	11ton
