Product Details:
Payment & Shipping Terms:
|
| Screw L/D Ratio: | 24 L/D | Screw Heating Capacity: | 8 KW |
|---|---|---|---|
| Output Of HDPE: | 128 KG/H | Clamping Force: | 108 KN |
| Mold Stroke: | 240-660mm | Blow Pressure: | 0.6mpa |
| Highlight: | plastic container manufacturing machine,extrusion moulding machine |
||

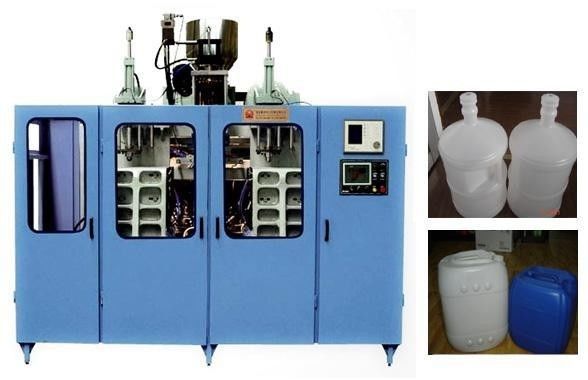

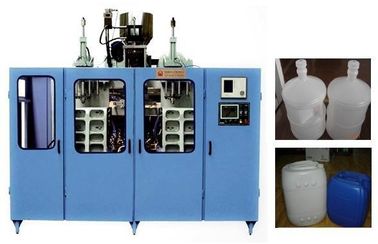

Full-auto PE blow molding machine 8L-20L Double station auto blow molding machine ABLB90II
ABLB90II fully automatic blow molding mchine
1) It is suitable for producing PP,PE,HDPE,PVC and various kinds of plastic bottles and containers in all shapes.
2) It is widely used to produce kinds of watering bucket,chemical barrels,foodstaf barrels and related product.
3) This type of machine is improved on the basis of ABLB80II.The improved design has much space to place the mold,so leaving more place for you to inset various mold.It helps you to save the investment cost on machine.
4) The machine use mechincal-double-arm clamping system which ensures the mold being tightly closed even under great pressure and high temperature.
5) Mold open-and-close speed is increased.
6) Easy to operate and maintenance
7) High quality and low price.Machine cost can be regained with 1-2 years.
For more information about the machine,please don't hesitate to contact us.
Related technical parameter(ABLB90II)
| Max. Product volume | 20 liters | Dry cycle | 500X2pc/h |
| Screw diameter | 90mm | Screw L/D ratio | 24 L/D |
| Screw drive power | 37-45 KW | Screw heating capacity | 8 KW |
| No.of heating zone | 4 zones | Output of HDPE | 128 KG/H |
| Oil pump drive power | 11 KW | Clamping force | 108 KN |
| Max.size of mold | 530X550mm | Mold stroke | 240-660mm |
| Max.die diameter | 180mm | Blow pressure | 0.6mpa |
| Air volume | 0.9 M/MIN | Cooling water pressure | 0.3mpa |
| Water consumption | 90 L/MIN |
PLC adds the man-machine interface, the touching type is operated, it is convenient to be simple and direct.
Pairs of spiral type flow dishes of first-in first-out store material mould hair, remove and converge the line completely, guarantee the purity of the products.
Multi- import wall thickness control system use, Can satisfy each irregular product to wall thickness request.
Gathers when the mold diffraction grating induction protective device, Increased the operation security.
Various kinds of functions suitable for matching special products, for instance; Leave and blow and go up and down, prop up the material ,the internal and external whorl is rotated, the drawing of patterns,the sub mould is opened and close, seal automatically, automatically take out/manipulator/,etc.
