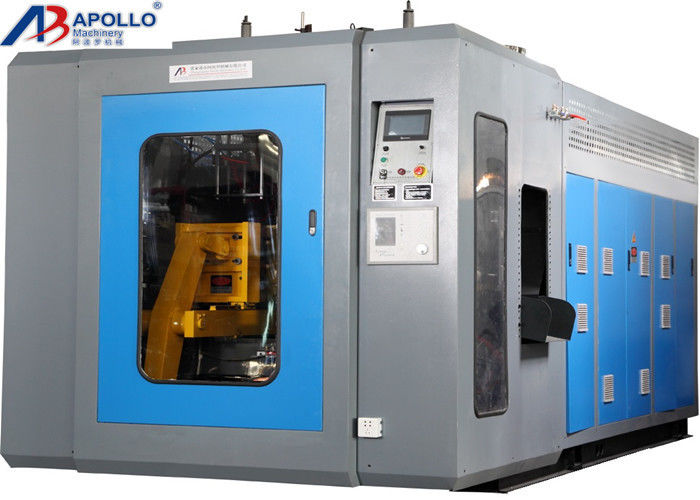

Full - Auto PE Blow Molding Machine , 8L-20L Extrusion Blow Molding Machine ABLB90

Large Image : Full - Auto PE Blow Molding Machine , 8L-20L Extrusion Blow Molding Machine ABLB90

Product Details:

Place of Origin:	CHINA
Brand Name:	ABC
Certification:	CE/SGS

Payment & Shipping Terms:

Minimum Order Quantity:	1SET
Price:	Negotiable
Packaging Details:	Film packaging
Delivery Time:	40DAYS
Payment Terms:	L/C, T/T
Supply Ability:	20 SETS PER MONTH

Contact Now

Detailed Product Description

Dry Cycle:	450pc/h	Screw L/D Ratio:	25 L/D
Screw Heating Capacity:	18 KW	Output Of HDPE:	130 KG/H
Clamping Force:	260 KN	Mold Stroke:	450-1000mm
Highlight:	blow molding equipment , extrusion blow moulding machine

Full-auto PE blow molding machine 8L-20L Extrusion blow moulding machine ABLB90

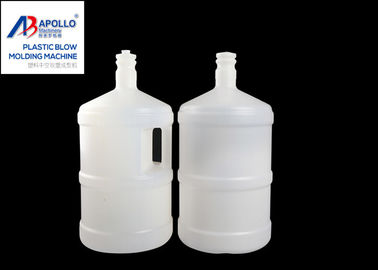

ABLB90 blow molding machine is suitable for producing all kinds of plastic containers and bottles in all shapes from 5L to 20L.Adopt advanced PLC control system and a simple panel.PLC control system has counting function and time control presion to 0.1 second.Special fan design for the cooling system in the heating channel to keep the oven with constant temperature and ensure the plastic can be heated evenly.
Perfect design, guaranteed quality with economics investment.
Easy to operate and maintain,operated by one person,no need professional training.
If you need further info.,don’t hesitate to contact us.
For more information about the machine,please don't hesitate to contact us.

Related technical parameter(ABLB90)


Max. Product volume	20liters	Dry cycle	450pc/h
Screw diameter	90mm	Screw L/D ratio	25 L/D
Screw drive power	37 KW	Screw heating capacity	18 KW
No.of heating zone	4 zones	Output of HDPE	130 KG/H
Oil pump drive power	30 KW	Clamping force	260 KN
Max.size of mold	700X950mm	Mold stroke	450-1000mm
Max.die diameter	340mm	Die heating powe	7.6 KW
Die heating segments	4 zones	Blowing pressure	0.8mpa
Air volume	1.0 M/MIN	Cooling water pressure	0.3mpa
Water consumption	90 L/MIN

PLC adds the man-machine interface, the touching type is operated, it is convenient to be simple and direct.
Pairs of spiral type flow dishes of first-in first-out store material mould hair, remove and converge the line completely, guarantee the purity of the products.
Multi- import wall thickness control system use, Can satisfy each irregular product to wall thickness request.
Gathers when the mold diffraction grating induction protective device, Increased the operation security.
Various kinds of functions suitable for matching special products, for instance; Leave and blow and go up and down, prop up the material ,the internal and external whorl is rotated, the drawing of patterns,the sub mould is opened and close, seal automatically, automatically take out/manipulator/,etc.
