Detail Information

Customization:	Logo Printing And Design Modifications Available	Productionmethod:	Blow Molding
Dimensions:	Custom Sizes Available	Coloroptions:	Customizable
Applications:	Storage Tanks, Containers, Industrial Use	Productname:	Large-scale Plastic Blow
Highlight:	float blow molding machine custom , custom plastic blow molding machine

Product Description

Plastic floating on waterExtrusion float blow molding machinePlastic blow molding machine

Product Introduction

Weifang Xinhengda tank blow molding machines are hollow molding equipment specialized in manufacturing tanks ranging from 50L to 10000L. Featuring multi-layer co-extrusion, optional single/double-station operation, servo energy-saving technology and stable control as core advantages, these machines are compatible with raw materials such as PE and HDPE, and are suitable for scenarios including solar energy storage, chemical engineering, and civil water storage.

Tabular Parameters

plastic processed

PE, HDPE

Clamping Force (kN)

1000

automation

Automatic

voltage

380-415V

key selling points

Energy Saving

warranty

1 Year

core components

PLC, Gearbox, Motor

machinery test report

Provided

video outgoing-inspection

Provided

output (kg/h)

350

place of origin

Shandong, China

power (kw)

weight (t)

brand name

XINHENGDA

dimension(l*w*h)

11*5*6.3

screw diameter (mm)

100

screw heating power(kw)

extruder motor power(kw)

mold platen size(width)(mm)

1500

mold platen size(height)(mm)

1700

air pressure(mpa)

0.2

air comsumption(m³/min)

0.3

die head heating power(kw)

Blow Moulding Type

Extrusion Blow Moulding

Automatic

Yes

After-sales Service Provided1

Field installation, commissioning and training

After-sales Service Provided2

Engineers available to service machinery overseas

Weight

50TON

Certification

CE and ISO9001:2008

Clamping Force

1000-1800KN

Power

325-441KW

Marketing Type

Ordinary Product

Product Core Functions

Multi-layer Co-extrusion: Enhances thermal insulation and corrosion resistance, meeting the double or triple-layer insulation requirements of solar energy storage tanks.

Servo Energy-saving: Saves 40% energy compared with traditional hydraulic machines, reducing long-term operation costs significantly.

Stability and Reliability: Key components (e.g., MOOG wall thickness controller, servo motor) adopt well-known brands, resulting in low failure rate.

Customization Capability: Machine models can be adjusted according to tank volume, layer count and raw material type to meet special needs.

Product Competitive Advantages

1.Energy and Material Saving: Saves 25%-35% raw materials compared to roto-molded tanks; servo hydraulic system saves over 40% energy, and extruder upgrade saves an additional 10% energy.

2.High Efficiency: Higher output than roto-molding machines, with 7-9 pieces per hour for 2000L specification.

3.Outstanding Quality: Strong impact resistance, flawless product quality, and multiple international certifications.

4.Easy Operation and Maintenance: Only 2 people are needed to operate the main machine, and 3-4 people for the entire production line; modular core components for convenient maintenance.

Application Scenarios

Solar Hot Water Systems: 50-2000L double-layer tanks with excellent thermal insulation and anti-aging performance.

Chemical Engineering/Water Treatment: 500-10000L corrosion-resistant tanks with multi-layer structure to prevent leakage.

Civil Water Storage: 50-500L household buckets compatible with food-grade raw materials.

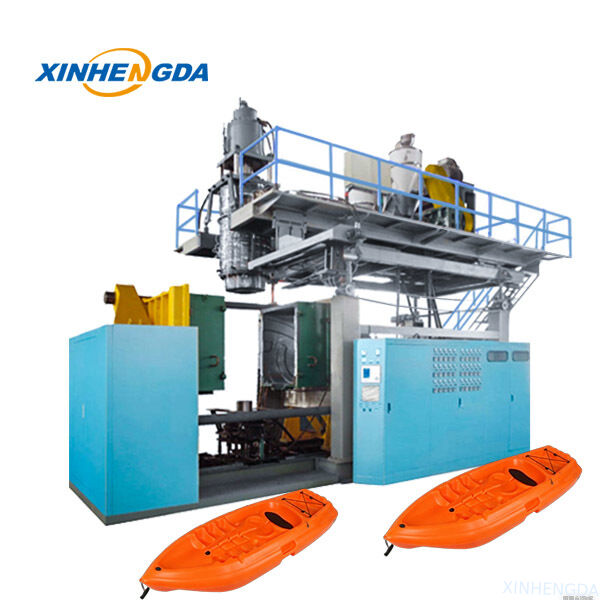

Plastic Floating On Water Extrusion Float Blow Molding Machine Custom Sizes 0

Tag:

Place of Origin:	Shibu Industrial Park Changyi City Shandong Province China
Brand Name:	XINHENGDA
Model Number:	2000L 1 to 8Layers

Minimum Order Quantity:	1
Price:	Contact me
Delivery Time:	Regular orders ship in 90 days; for customized products, please contact me for the timeline.
Payment Terms:	L/C,D/A,T/T,Western Union,D/P
Supply Ability:	90+
