Detail Information

Moldingmethod:	Float Blow Molding	Machinetype:	Blow Molding Machine
Material:	Plastic	Heatingmethod:	Electric Heater
Clampingforce:	Variable (typically In Tons)	Coolingsystem:	Water Cooling
Productname:	Plastic Float Blow Molding Machine	Powersupply:	Electric
Cycletime:	Variable (seconds Per Cycle)	Machineweight:	Variable (usually In Tons)
Application:	Manufacturing Plastic Floats And Hollow Plastic Products	Controlsystem:	PLC Control
Highlight:	pallet blow molding machine electric heater , pallet float blow molding machine , electric heater float blow molding machine

Product Description

Green Design Pallet Blow Molding Streamlined Workflow Top Maker

Product Introduction

A key competitive edge of blow molding machines for floating products is their remarkable ability to strike a well-rounded balance among operational stability, production throughput, and operational costs. This makes them an ideal fit for manufacturing facilities that need to meet both stringent product reliability standards and large-scale production demands simultaneously. Unlike conventional manufacturing methods, these cutting-edge machines not only boost the overall quality and service life of end products, but also slash long-term running costs substantially — a benefit that solidifies their position as the top choice for floating product production lines.

Tabular Parameters

Key attributes

plastic processed

PE, HDPE

Clamping Force (kN)

800

automation

Automatic

voltage

380-415V

key selling points

Energy Saving

warranty

1 Year

plc brand

Siemens

core components

PLC, Gearbox, Motor

machinery test report

Provided

video outgoing-inspection

Provided

output (kg/h)

240 kg/h

place of origin

Shandong, China

power (kw)

weight (t)

brand name

XINGHENGDA

dimension(l*w*h)

10*3*5

Screw L/D Ratio

screw diameter (mm)

110 mm

screw heating power(kw)

31.5 kW

extruder motor power(kw)

40 kW

mold platen size(width)(mm)

1350 mm

mold platen size(height)(mm)

1350 mm

air pressure(mpa)

0.8 MPa

air comsumption(m³/min)

0.2 m³/min

die head heating power(kw)

30 kW

Blow Moulding Type

Extrusion Blow Moulding

Automatic

Yes

After-sales Service Provided1

Field installation, commissioning and training

After-sales Service Provided2

Engineers available to service machinery overseas

Weight

25TON

Certification

CE and ISO9001:2008

Clamping Force

800KN

Power

229-292KW

Product Core Functions

1. Precision Molding Capability: Equipped with a MOOG wall thickness control system, the machine guarantees consistent wall thickness across the entire float component. This effectively eliminates localized thin areas or excessive thickness defects that might otherwise compromise buoyancy performance and structural stability. Moreover, core process parameters such as injection stroke and blow molding duration are fully programmable with high precision, facilitating the production of various float designs—including circular, elliptical, and custom irregular float tubes.

2. High-Efficiency Production Capacity: The dual-station configuration enables alternating production cycles, significantly boosting overall production throughput. The bottom blowing module is outfitted with a two-stage lifting and expanding mechanism, specifically designed to meet the molding requirements of floats with special structural specifications. Automated product handling via a dedicated robotic arm minimizes manual intervention, reduces product damage rates, and shortens the total molding cycle.

3. Intelligent Control Features: The system integrates a Mitsubishi PLC control unit combined with a touchscreen HMI (Human-Machine Interface), providing real-time display of operational status and automatic fault alarm notifications. All process parameters can be stored in the system and retrieved as needed, simplifying production changeovers and supporting continuous process optimization.

4. Flexible Adaptability: Key components such as the die head and blow pin allow for flexible configuration adjustments, enabling the machine to process floats of different sizes and layer structures. It is also compatible with a wide range of raw materials, including HDPE, effectively meeting the industry's strict requirements for float corrosion resistance and anti-aging properties.

Product Competitive Advantages

1. Premium Craftsmanship & Reliable Molding Quality Powered by multi-layer co-extrusion technology, our floats boast remarkably improved structural stability and impact resistance. Supported by the dual guarantees of MOOG wall thickness control and a servo hydraulic system, the equipment achieves superior molding precision and an ultra-low defect rate. Additionally, all core components are sourced from well-known international brands, which significantly cuts down equipment downtime and ensures long-term stable production.

2. Energy-Saving Design & Cost-Effective Production The servo hydraulic system enables direct energy savings of up to 40%. The dual-station setup, integrated with an automatic product handling function, reduces manual participation and energy waste to a minimum while greatly enhancing your production efficiency per unit time. Furthermore, the high-efficiency aluminum alloy molds shorten the molding cycle, helping you further lower production costs and maximize profit margins.

3. Flexible Customization & Versatile Applicability We offer full-range customization of machine models and molds according to your specific float requirements, covering all aspects from dimensions and capacity to the number of layers. The equipment demonstrates high compatibility with various raw materials, being able to meet all your demands for float performance—whether it is UV resistance, low-temperature endurance, or other special customization needs.

4. User-Friendly Operation & Easy Maintenance The intuitive touchscreen operation interface is simple to learn and use, reducing your operator training costs effectively. The clear fault alarm function allows you to quickly identify and address issues, avoiding unnecessary production disruptions. Moreover, our comprehensive after-sales service and timely spare parts supply provide solid support, ensuring the uninterrupted operation of your production line.

Product Distinctive Features

Specialized Capabilities: Custom-engineered for float products, the optimized bottom-blowing configuration and expansion mechanism are tailored to the molding of hollow and irregular float structures. This successfully resolves the incompatibility problem that hinders conventional blow molding machines.

Operational Reliability: The machine frame features a heavy-duty steel build, guided by linear guide rails to guarantee stable mold clamping and injection procedures. Precise temperature regulation of the die head ensures uniform plasticization of raw materials, leading to exceptional consistency in float quality.

Long-term Sturdiness: Core components (screw, die head) are manufactured from high-strength wear-resistant materials, delivering outstanding fatigue resistance and abrasion durability. This extends the equipment's service life and renders it suitable for long-term continuous production operations.

Eco-friendly Features: The incorporation of servo energy-saving technology and electric heating substantially reduces energy consumption and carbon emissions. Furthermore, the raw materials utilized are recyclable, fully adhering to green production criteria.

Application Scenarios

Aquaculture Sector: Produces fishing nets, floating buoys, net cage floats, and aquaculture platform buoys. Ideal for freshwater and brackish water farming environments, these products offer excellent corrosion resistance and sustain consistent buoyancy performance.

Marine Transportation & Leisure Industry: Utilized in the manufacturing of yacht harbor bumpers, floating docks, waterborne platforms, and aquatic amusement park rafts. It provides superior load-bearing capacity and stability, adapting effectively to varying water level conditions.

Marine Engineering Field: Manufactures floating work platforms, buoyancy modules for dredging projects, environmental protection floating islands, and marine navigation buoys. Featuring strong impact resistance, it can cope with complex marine operating environments.

Other Application Areas: Including water safety buoys and fishing detection floats. Customization options for colors and markings are offered to satisfy specific functional requirements.

Green Design Pallet Blow Molding Machine Electric Heater 240 kg/h output 0

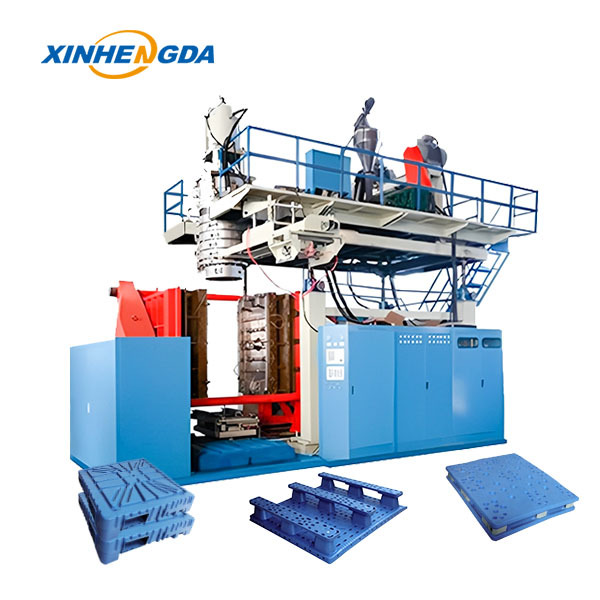

Green Design Pallet Blow Molding Machine Electric Heater 240 kg/h output 1

Tag:

Place of Origin:	Shibu Industrial Park Changyi City Shandong Province China
Brand Name:	XINHENGDA
Model Number:	Plastic Pallet Machine

Minimum Order Quantity:	1
Price:	Contact me
Delivery Time:	Regular orders ship in 90 days; for customized products, please contact me for the timeline.
Payment Terms:	L/C,D/A,T/T,Western Union,D/P
Supply Ability:	90+
