| Max. Volume: | 25L | Screw Diameter: | 82mm |
|---|---|---|---|
| Clamping Force: | 220KN | Template Size: | 800x800 |
| Average Power Consumption: | 42kw | Weight Of Machine: | 11.8TON |
| High Light: | plastic bottle blowing machine,blow molding equipment |
||

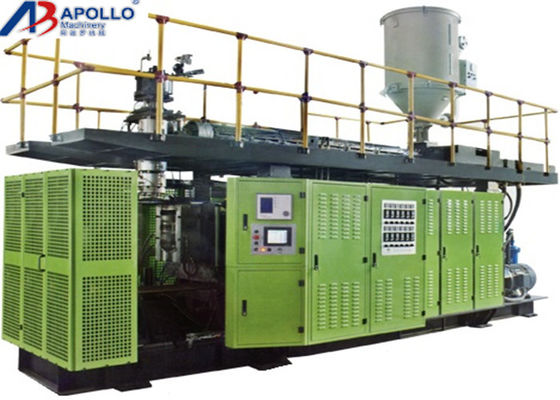

China 5 gallon PC water drum plastic blow molding machine manufacturer

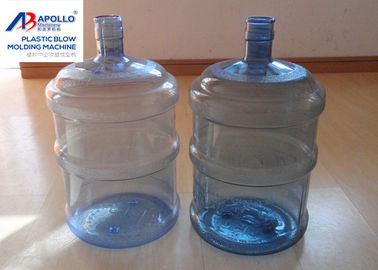

Product: 19L PC bottle
Max volume of this machine: 25L
Power supply: 380/220v 50/60 Hz Tri-phase
Output capacity: 50-55 pcs/h
Die head number: 1
Full automatic or not: Full auto
Suitable raw material: PC
Technical Parameters: ( ABLB82PC )
| Basic parameters | Suitable material | PC,PP,PE | |
| Max volume | 25L | ||
| Output capacity | 50-55pcs/h | ||
| Size | 5.6×2.7×4.5(M) | ||
| Weight | 11.8T | ||
| system | Specification | Parameters | Note |
| Plasticizion system | Summarize | High efficient low power consumption plasticizion system,transducer control,self-protect function when started at low temperature | |
| Reducer | Hard finishing,High intension,Low noise reducer | ||
| Screw | ∮82mm,L/D ratio 25/30 | Cooling system available | |
| Plasticization | 160Kg/H (PC) | PC | |
| Heating Zone | 5 Aluminum Heater | Automatic heating | |
| Heating power | 30KW/H | ||
| Extrusion Motor | Three phase asynchronous motor (380V,50HZ) | ||
| Cooling Fan | 8 zone | Automatic cooling | |
| Extrusion system | Summarize | High-grade alloy steel, center feeding | |
| Die head number | 1 | ||
| Center distance of die heads | / | ||
| Max die mouth | / | ||
| Heating zone | 4 Stainless steel heating cycle | ||
| Heating power | 8.7KW | ||
| Clamping system |
Summarize |
High intension, rigidity, center mold locking, stable mould opening and clamping system | |
| Clamping force | 220KN | ||
| Template distance | 800x800 | ||
| Max mould size | 700X800mm | ||
| Mould material | High grade 50# steel | ||
| Electric system | Summarize |
|
|
| Operate interface | Touch screen, automatic self-diagnose alarm system | ||
| Temperature control | Automatic temperature control module | ||
| Movement control |
Japanese Mitsubishi, Chinese/English |
||
| Electric protection | Ampere overload, electric short circuit self-protection function | ||
| Hydraulic system | Summarize | Multiple function hydraulic integrated block Proportional control, high efficient | |
| Oil pump motor | Three phase asynchronous motor (380V/220V,50/60HZ) | ||
| Oil pump | Imported double pump | ||
| Valves | Imported oil pump valves and connections | ||
| Oil pipes | Double layer overpressure resistant | ||
| System pressure | 60Kg/cm² | ||
| Cooling system | Separate water cooling cycle, oil cooler cooling system | ||
| Pneumatic system | Summarize | Taiwan AIRTAC pneumatic system | |
| Air pressure | 0.6Mpa | ||
| Air displacement | 0.8M3/min | ||
| Electromagnetic valve | Taiwan AIRTAC | ||
| Cooling system | Summarize | Separate cooling system of mould, barrel and oil system | |
| Cooling medium | Water | ||
| Water flow | 60L/min | ||
| Water pressure | 0.3-0.6MPa | ||
The main components of the machine. ( ABLB82PC )
| electronic parts | |
| Name | Trader |
| Micro computer control system | Japanese MITSUBISHI |
| Temperature Controller | Japanese MITSUBISHI |
| Auxiliary Relay | OMRON |
| contactor | Schneider from France |
| Electric motor | Three phase 220V or 380V |
| Power Source | TAIWAN MEANWELL |
| Transducer | ABB |
| hydraulic parts | |
| Name | Trader |
| Oil pump | TAIWAN HIGH-TECH |
| Valve | YUKEN |
| Oil pump and connection | YUKEN |
| Sealed part | HALLITE |
| air control system | |
| Name | Trader |
| Cylinder | AIRTAC |
| Air Valve | AIRTAC |
