Detail Information

Application:	Bottle,water Tank,container,medical,road Barrel	After-sales Service Provided:	Engineers Available To Service Machinery Overseas,Online Support,Video Technical Support,Field Installation,commissioning And Training
Plastic Processed:	PET,PE,PP,HDPE,ABS	Automatic:	Yes,No
Blow Moulding Type:	Stretch Blow Moulding,Extrusion Blow Moulding,Injection Blow Moulding	Product Name:	Automatic PET Bottle Blowing / Plastic Stretch Blow Molding Machine,Automatic Blowing Molding Machine,hydraulic Type ABS Furniture Leg Blow Moulding Machine,pet Blow Moulding Machine Price,4 Cavity Automatic Pet Bottle Blow Molding Machine
Color:	White(can Be Customized),Blue,Customized,Yellow,Green	Use:	Making PET Bottle,water Bottle,food, Field,cosmetic
Machine Type:	High Speed Plastic Bottle Making Machine,Semi-automatic Bblowing Machine,Hydraulic Driven,Extrusion Blow Molding Machine,bottle Forming Machine	Machine Type:	Blow Molding
Highlight:	Plastic drum blow molding machine , Energy saving water tank molding machine , Automatic plastic drum manufacturing plant

Product Description

Plastic Drum Manufacturing Plant Energy Saving Automatic Molding Stable Running

Product Introduction

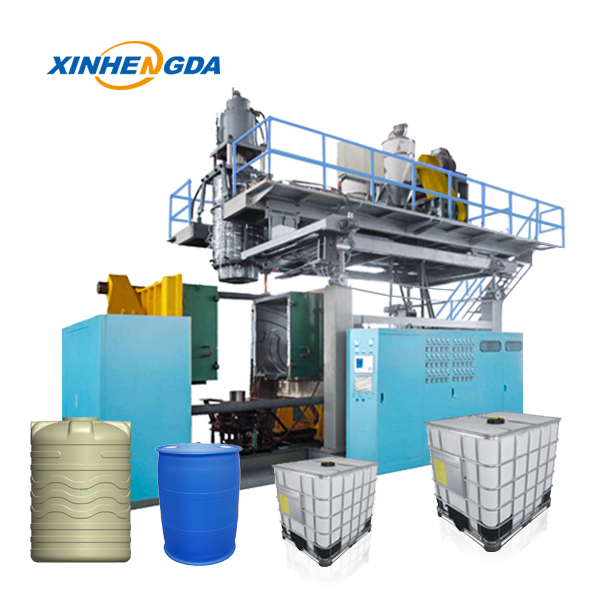

Custom plastic tank blow molding units developed by Xinhengda utilize mature extrusion blow molding craft, equipped with premium FIFO accumulator, MOOG precise thickness regulator and energy-saving servo hydraulic driving assembly.
The unit enables 1–5 layer co-extrusion molding and unmanned fabrication of HDPE storage containers covering 20L to 10000L capacities. Integrated PLC intelligent control, intuitive touch panel and auto unloading manipulator streamline whole production flow.
Balancing high throughput and low power loss, this molding equipment is widely applied for household water storage, industrial liquid holding and new energy supporting manufacturing sectors.

Tabular Parameters

Key attributes

plastic processed

PE, HDPE

Clamping Force (kN)

800

automation

Automatic

voltage

380-415V

key selling points

Energy Saving

warranty

1 Year

plc brand

core components

PLC, Gearbox, Motor

machinery test report

Provided

video outgoing-inspection

Provided

output (kg/h)

240 kg/h

place of origin

Shandong, China

power (kw)

weight (t)

brand name

XINGHENGDA

dimension(l*w*h)

10*3*5

Screw L/D Ratio

screw diameter (mm)

110 mm

screw heating power(kw)

31.5 kW

extruder motor power(kw)

40 kW

mold platen size(width)(mm)

1350 mm

mold platen size(height)(mm)

1350 mm

air pressure(mpa)

0.8 MPa

air comsumption(m³/min)

0.2 m³/min

die head heating power(kw)

30 kW

Blow Moulding Type

Extrusion Blow Moulding

Automatic

Yes

After-sales Service Provided1

On-site Installation, Commissioning and Operational Training

After-sales Service Provided2

Engineers available to service machinery overseas

Weight

25TON

Certification

CE and ISO9001:2008

Clamping Force

800KN

Power

229-292KW

Product Core Functions

Accurate Extrusion & Uniform Wall Thickness Matched with FIFO accumulator and MOOG thickness adjusting module, the device precisely shapes plastic parisons. Uniform wall thickness strengthens tank structure and extends the service life of finished containers.
Fast Mold Movement & Stable Locking Structure Linear guide rails and electronic ruler positioning drive the mold, with a maximum moving speed of 600mm/s. Sufficient locking force keeps molds tightly closed to secure stable forming accuracy during continuous processing.
Unmanned Automatic Manufacturing Line Fitted with industrial manipulators to pick finished goods automatically, the machine cuts manual operation greatly. It boosts overall output and effectively slashes labor expenditures for factories.
Low-Consumption Servo Hydraulic Power Advanced servo hydraulic drive cuts power usage by 40% against traditional hydraulic setups. It lessens long-running electricity costs and meets green production standards.
Flexible Multi-Layer Composite Molding It realizes 1–5 layers co-extrusion molding to make functional composite tanks. The formula can be adjusted to gain anti-ultraviolet, leak-proof and other customized performance.
Smart Operation & Instant Fault Reminder Collocated with PLC controller and intuitive HMI touch screen, the machine displays running data, production parameters and failure alarms in real time, making daily operation and routine maintenance much easier.

Product Competitive Advantages

Economical Production Performance
This machine manufactures hollow plastic liners with less raw material waste and faster forming cycles than enamel liner equipment to lower overall manufacturing costs. Plastic liners outperform stainless steel alternatives in heat preservation, slashing energy spending in long-term usage.
Reliable Finished Goods Quality
Accurate wall thickness control delivers seamless one-piece liners with great sealing, anti-corrosion and anti-aging traits for longer service spans. Top-brand core parts stabilize machine operation and lower reject rates during mass runs.
Simple Operation & Low Upkeep
Full-auto control paired with straightforward HMI shortens operator learning time. Optimized mechanical layout simplifies routine inspection, while responsive after-sales support cuts factories’ daily maintenance expenses.
Flexible Customization Capacity
We tailor machine sizes as per clients’ production plans. The device fabricates 120L to 1500L hollow containers, satisfying diverse personalized manufacturing demands for plastic container factories.

Product Distinctive Features

Energy-saving & High-yield Design
Servo hydraulic power cuts power consumption greatly. Multi-layer co-extrusion boosts raw material utilization, and automated production procedures save labor resources and production cycle costs.
Steady Long-term Operation
Key molds are made of premium 38CrMoAl material alongside precision machined spare parts. The whole unit runs smoothly with rare breakdowns and extends its overall service cycle.
Precise Forming Control
Matching MOOG thickness regulator and electronic stroke calibrator, the machine keeps tank dimensions consistent and wall thickness uniform to upgrade finished product quality.
Wide Compatibility
It fits various mould sizes to produce storage tanks of different volumes. Compatible with HDPE and other plastic feedstocks, it can handle various customized production orders.
User-friendly Control Panel
The HMI adopts a clear layout with simplified parameter setting and fault checking steps. It reduces operation learning difficulty and saves staff training costs for manufacturers.

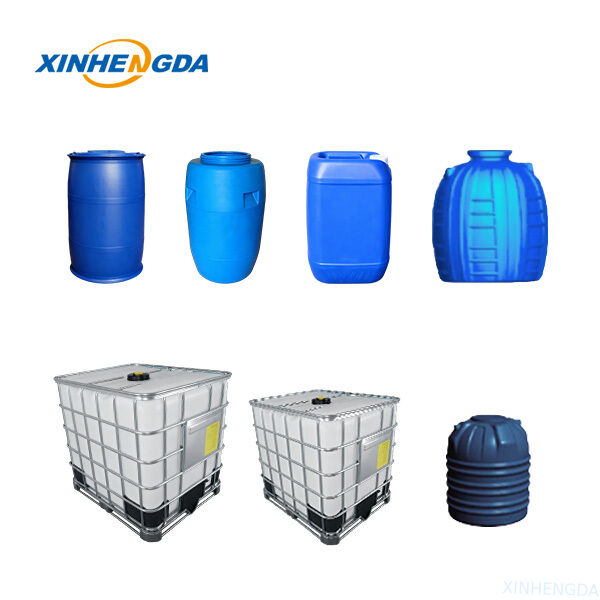

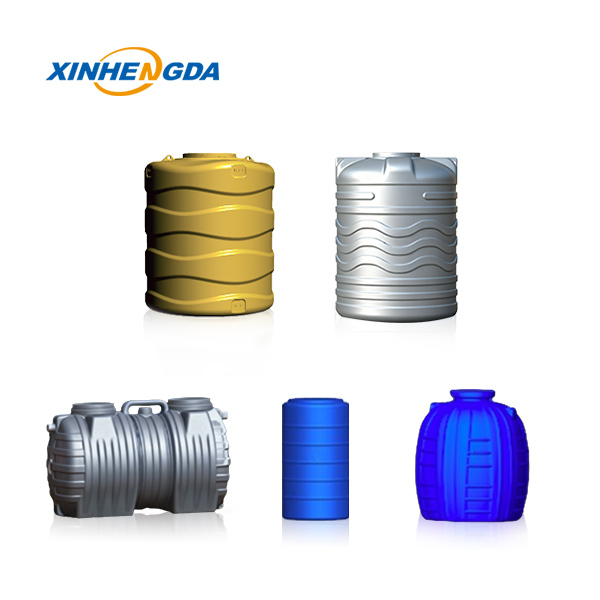

Application Scenarios

Civil Water Storage Sector
It manufactures household mini water tanks and secondary water supply containers to meet daily water storage demands for families and residential districts.
Industrial Auxiliary Production
The machine fabricates chemical reagent tanks, waste liquid containers and cooling circulation vessels to satisfy all liquid storage demands in factory manufacturing.
Agricultural Breeding & Irrigation
It produces irrigation and breeding water tanks, supporting water-saving farm planting and water storage for livestock and poultry cultivation.
New Energy Manufacturing
Capable of producing heat pump and water heater inner liners, multi-layer co-extrusion technology endows finished products with superior heat preservation and anti-corrosion performance.
Municipal & Construction Works
The equipment makes temporary water storage containers, construction water tanks and fire storage vessels for municipal engineering and building projects.

Plastic Drum Manufacturing Plant Energy Saving Automatic Molding Stable Running

Ratings & Review

Overall Rating

5.0

Based on 50 reviews for this product

Rating Snapshot

The following is the distribution of all ratings

5 stars

100%

4 stars

3 stars

2 stars

1 stars

All Reviews

Mohamed

Algeria Aug 3.2026

trustpilot.com

Helpful (86)

No weld in the liner, good sealing performance, the plastic hollow inner liner produced by this unit has lower raw material costs and higher molding efficiency, which can reduce overall production costs

Tag:

Place of Origin:	Shibu Industrial Park Changyi City Shandong Province China
Brand Name:	XINHENGDA
Model Number:	Water tank Loft tank Blow Moulding Machine

Minimum Order Quantity:	1
Price:	Contact me
Delivery Time:	Regular orders ship in 90 days; for customized products, please contact me for the timeline.
Payment Terms:	L/C,D/A,T/T,D/P
Supply Ability:	90+
