Detail Information

Application:	Bottle,water Tank,container,medical,road Barrel	Plastic Processed:	PET,PE,PP,HDPE,ABS
Blow Moulding Type:	Stretch Blow Moulding,Extrusion Blow Moulding,Injection Blow Moulding	Color:	White(can Be Customized),Blue,Customized,Yellow,Green
Use:	Making PET Bottle,water Bottle,food, Field,cosmetic	Key Words:	Blow Molding Machine,machine,PET Stretch Bottle Blowing Molding Machine
Condition:	New	Machine Type:	High Speed Plastic Bottle Making Machine,Semi-automatic Bblowing Machine,Hydraulic Driven,Extrusion Blow Molding Machine,bottle Forming Machine
Highlight:	Plastic drum making machine with uniform wall thickness , High precision extrusion blow molding equipment , Tank blow molding machine for plastic drums

Product Description

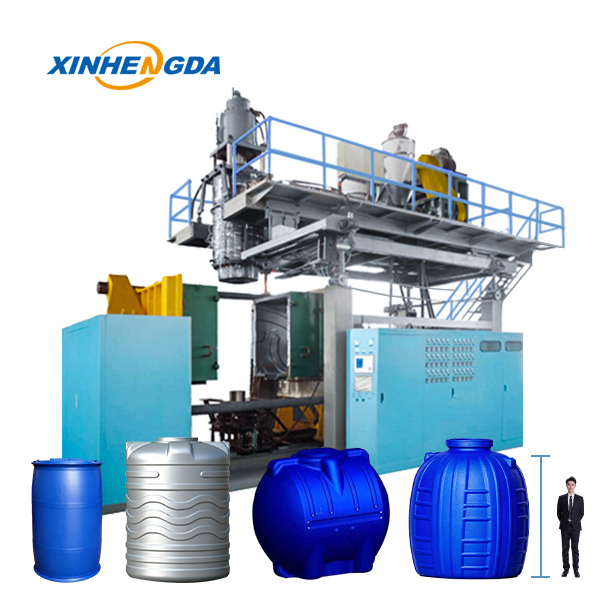

Plastic Drum Making Machine High Precision Extrusion Blow Molding Equipment Uniform Wall Thickness

Product Introduction

Weifang Xinhengda Plastic Drum Making Machine is a dedicated production equipment independently developed by Weifang Xinhengda Machinery Co., Ltd. for manufacturing hollow plastic liner containers. The device supports the fabrication of liners covering a full range of capacities from 120L to 1500L, equipped with cutting-edge extrusion processing and precise wall thickness regulation techniques.
Compared with conventional machinery for stainless steel and enamel container liners, this equipment features lower overall manufacturing investment, superior thermal insulation performance and faster molding speed, perfectly matching mass batch production as well as custom tailored manufacturing requirements of clients.

Tabular Parameters

Key attributes

plastic processed

PE, HDPE

Clamping Force (kN)

800

automation

Automatic

voltage

380-415V

key selling points

Energy Saving

warranty

1 Year

plc brand

core components

PLC, Gearbox, Motor

machinery test report

Provided

video outgoing-inspection

Provided

output (kg/h)

240 kg/h

place of origin

Shandong, China

power (kw)

weight (t)

brand name

XINGHENGDA

dimension(l*w*h)

10*3*5

Screw L/D Ratio

screw diameter (mm)

110 mm

screw heating power(kw)

31.5 kW

extruder motor power(kw)

40 kW

mold platen size(width)(mm)

1350 mm

mold platen size(height)(mm)

1350 mm

air pressure(mpa)

0.8 MPa

air comsumption(m³/min)

0.2 m³/min

die head heating power(kw)

30 kW

Blow Moulding Type

Extrusion Blow Moulding

Automatic

Yes

After-sales Service Provided1

Field installation, commissioning and training

After-sales Service Provided2

Engineers available to service machinery overseas

Weight

25TON

Certification

CE and ISO9001:2008

Clamping Force

800KN

Power

229-292KW

Product Core Functions

High-efficiency Extrusion Molding: The optimized extrusion structure delivers stable material conveying and uniform heating plasticization. It supports continuous and consistent parison extrusion, fully meeting the molding requirements of multi-specification plastic drums and water storage containers.
Precise Wall Thickness Control: Fitted with professional MOOG parison thickness adjusting system, the equipment intelligently calibrates the wall thickness of different parison sections according to product structure and mechanical stress standards. It avoids uneven thickness defects and greatly improves finished product quality and service lifespan.
Stable Mold Locking & Quantitative Injection: The accumulator feeding system works collaboratively with the high-rigidity mold clamping structure. Matched clamping force is available for different machine models to ensure tight mold closure during molding. It guarantees accurate injection volume and stable dimensional precision of plastic containers.
Intelligent Temperature & Cooling Management: The die head adopts multi-stage precise temperature control to ensure ideal plasticizing effect of raw materials. The high-efficiency circulating cooling system rapidly shapes and cools the molded products, effectively shortening molding cycle and improving overall output capacity.
Real-time Operation & Fault Monitoring: Equipped with advanced PLC intelligent control system, the machine monitors all operating parameters in real time. Once abnormal conditions occur, the system will issue immediate alarms and display detailed fault information, enabling fast maintenance and reducing production downtime.

Product Competitive Advantages

Excellent Cost Performance: Compared with traditional enamel container production equipment, this machine produces hollow plastic liners with lower raw material consumption and higher molding efficiency, significantly reducing comprehensive manufacturing costs. Meanwhile, plastic containers deliver better thermal insulation than stainless steel products, effectively saving long-term energy consumption and operational expenses.
Reliable Product Quality: The equipment supports high-precision wall thickness control. The integrally formed container body is weld-free with outstanding tightness, strong corrosion resistance and excellent aging resistance, greatly extending product service life. Equipped with top-tier brand components, the machine runs steadily during mass production and efficiently minimizes defective rates.
Simple Operation & Low Maintenance Cost: Adopting full automatic intelligent control and user-friendly human-machine interface, the equipment features low learning difficulty and convenient operation. The scientific and optimized structural design simplifies daily maintenance. Cooperated with professional after-sales service, it effectively reduces enterprises’ overall operational and maintenance investment.

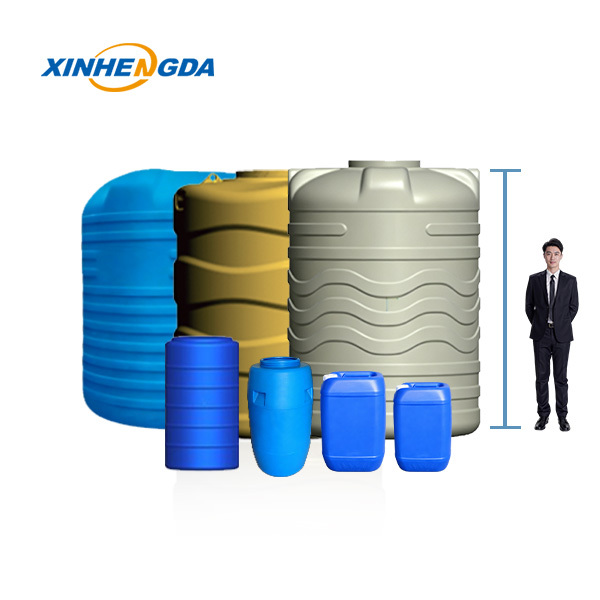

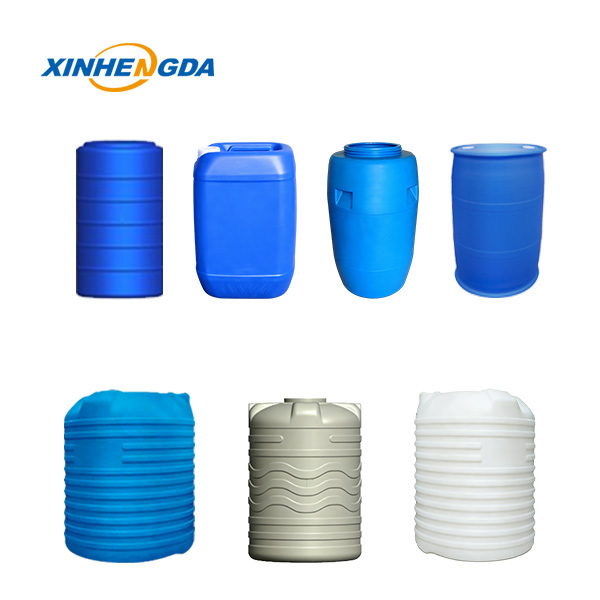

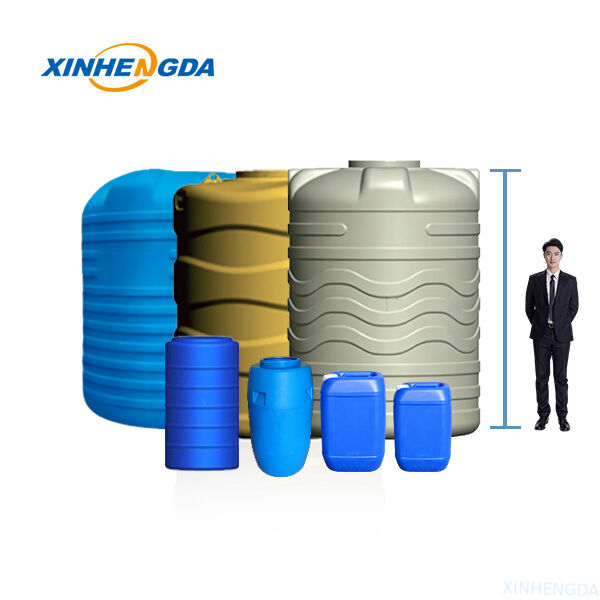

Strong Customization Flexibility: The equipment supports personalized model specification customization according to customer production needs. It is suitable for manufacturing 120L to 1500L plastic hollow containers, fully meeting the diversified and differentiated production demands of various plastic container manufacturers.

Product Distinctive Features

1. Professional Customized Design
This equipment is professionally developed for the mass production of hollow plastic containers. All structural components are optimized and tailored for plastic blow molding processing procedures. Compared with ordinary universal blow molding equipment, it features more precise molding accuracy and outstanding production efficiency for plastic barrel and water tank products.
2. Advanced Independent Technology
Supported by powerful independent R&D strength, the machine adopts industry-leading core technologies including precise wall thickness calibration and intelligent extrusion molding. It continuously upgrades the processing technology of plastic container production, maintaining strong technical competitiveness in the industry.
3. Wide Material Compatibility
The machine boasts excellent raw material adaptability, perfectly compatible with mainstream plastic materials such as HDPE. It can stably produce plastic containers with different performance standards and specifications, meeting diversified customized production requirements.
4. Energy Saving & Environmental Protection
Equipped with high-efficiency energy-saving components including servo oil pumps, the equipment effectively reduces overall power consumption during operation. Compared with traditional processing methods, plastic container production generates lower pollution. The finished products are recyclable and reusable, conforming to modern green and environmentally friendly production standards.

Application Scenarios

1. Civil & Commercial Container Manufacturers
This machine is perfectly suitable for mass production of hollow plastic liner containers, covering various civilian and commercial storage equipment. It supports the production of products with different capacities, meeting the standardized manufacturing needs of various plastic storage vessels.
2. New Energy & Environmental Supporting Industry
It can produce customized plastic inner containers for heating storage systems, industrial hot water projects and energy storage supporting facilities. The equipment greatly enriches product categories and expands the application boundaries of the new energy supporting manufacturing field.
3. Custom Processing & OEM Factories
The equipment supports personalized customized production, enabling the processing of special-specification plastic containers according to client drawings and requirements. It effectively meets the market’s niche demands and diversified customized production needs.
4. Foreign Trade & Export Processing Field
Both the blow molding equipment and finished plastic containers comply with international quality standards. They are widely exported to Southeast Asia, West Asia, North Africa and other emerging markets, adapting to the booming global demand for plastic storage and container products.

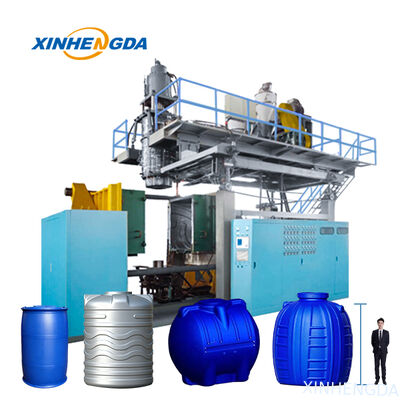

Plastic Drum Making Machine High Precision Extrusion Blow Molding Equipment Uniform Wall Thickness

Tag:

Place of Origin:	Shibu Industrial Park Changyi City Shandong Province China
Brand Name:	XINHENGDA
Model Number:	Solar can blow molding machine

Minimum Order Quantity:	1
Price:	Contact me
Delivery Time:	Regular orders ship in 90 days; for customized products, please contact me for the timeline.
Payment Terms:	L/C,D/A,T/T,Western Union,D/P
Supply Ability:	90+
