Detail Information

Coolingsystem:	Water Cooling	Productname:	Water Treatment Tank Blow Molding Machine
Application:	Manufacturing Water Treatment Tanks	Moldingmethod:	Extrusion Blow Molding
Materialcompatibility:	HDPE, LDPE, PP	Machinetype:	Blow Molding Machine
Key Selling Points:	Energy Saving	Automation:	Automatic
Highlight:	500L water tank blow molding machine , 1000L plastic container forming equipment , water cooling blow moulding machine

Product Description

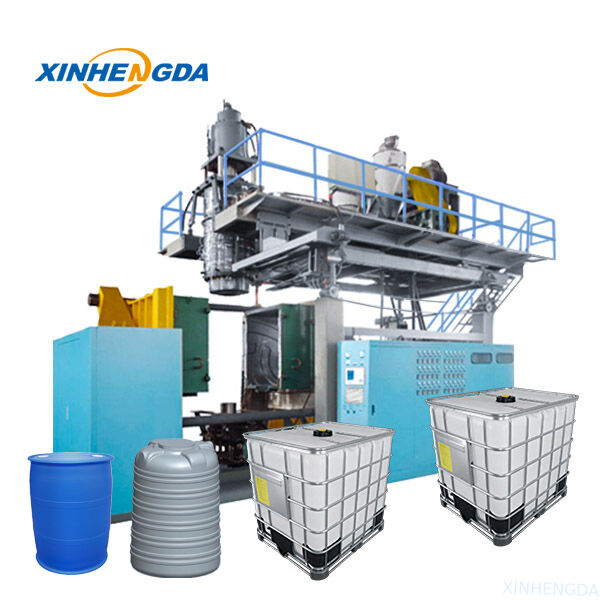

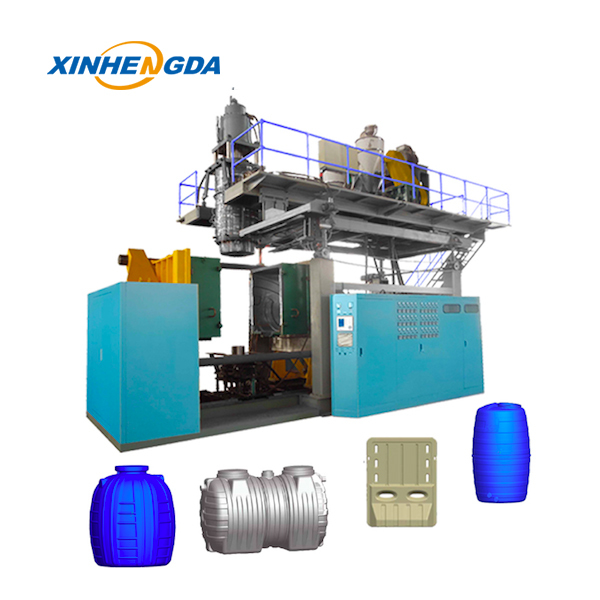

500L 1000L Water Tank Blow Moulding Machine Water Cooling Plastic Container Forming Equipment

Product Introduction

Xinhengda water tank blow moulding machine adopts mature extrusion blow moulding process, fitted with high-performance FIFO accumulator, professional MOOG wall thickness control system and servo hydraulic drive system. It supports flexible single-layer to five-layer co-extrusion processing and enables automatic manufacturing of HDPE plastic water tanks covering specifications from 20L to 10000L.

This production equipment adopts PLC intelligent control system and intuitive human-machine interface, matched with robotic arm automatic material fetching function. Optimized for HDPE raw material processing, it achieves a perfect balance of high production efficiency and low energy consumption, and is widely applied in civil water storage, industrial auxiliary production, new energy and various other industries.

Tabular Parameters

Key attributes

plastic processed

PE, HDPE

Clamping Force (kN)

800

automation

Automatic

voltage

380-415V

key selling points

Energy Saving

warranty

1 Year

plc brand

core components

PLC, Gearbox, Motor

machinery test report

Provided

video outgoing-inspection

Provided

output (kg/h)

240 kg/h

place of origin

Shandong, China

power (kw)

weight (t)

brand name

XINGHENGDA

dimension(l*w*h)

10*3*5

Screw L/D Ratio

screw diameter (mm)

110 mm

screw heating power(kw)

31.5 kW

extruder motor power(kw)

40 kW

mold platen size(width)(mm)

1350 mm

mold platen size(height)(mm)

1350 mm

air pressure(mpa)

0.8 MPa

air comsumption(m³/min)

0.2 m³/min

die head heating power(kw)

30 kW

Blow Moulding Type

Extrusion Blow Moulding

Automatic

Yes

After-sales Service Provided1

Field installation, commissioning and training

After-sales Service Provided2

Engineers available to service machinery overseas

Weight

25TON

Certification

CE and ISO9001:2008

Clamping Force

800KN

Power

229-292KW

Product Core Functions

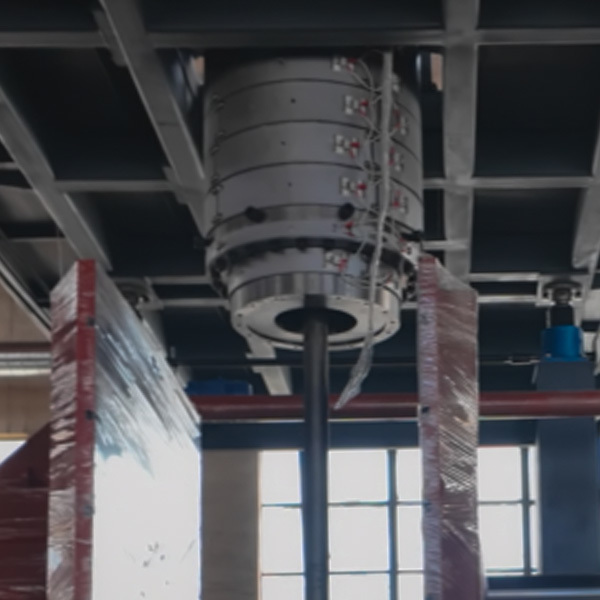

Precision Extrusion & Wall Thickness Management: Featured with FIFO type accumulator and high-precision MOOG wall thickness regulating system, the equipment realizes accurate parison thickness adjustment. It delivers consistent wall thickness for finished water tanks and effectively enhances structural strength and service durability.
High-speed Mold Closing & Stable Clamping Performance: Equipped with linear guide rail transmission and electronic ruler stroke positioning technology, the mold moving speed can reach 600mm/s. With stable and powerful clamping force, the machine maintains excellent molding precision and operational stability during continuous production.
Full-automatic Production Process: Integrated with intelligent robotic arm automatic picking mechanism, the equipment minimizes manual operation participation. It greatly improves overall production efficiency and effectively cuts enterprise labor expenditure.
Energy-saving Servo Hydraulic System: Adopting advanced servo hydraulic driving technology, the device reduces power consumption by 40% compared with conventional hydraulic equipment, greatly lowering long-term operation and power costs.
Multi-layer Composite Molding Technology: It supports flexible co-extrusion production from single-layer to five-layer structure. The machine can manufacture multi-functional composite water tanks to meet special industrial requirements including anti-aging and anti-permeation performance.
Intelligent Operation & Real-time Monitoring System: Built with PLC intelligent control and human-machine interactive panel, the equipment real-timely displays operating status, production data and fault alarm information, realizing simple operation and convenient daily maintenance.

Product Competitive Advantages

Cost Optimization Benefits: This molding equipment produces hollow plastic inner tanks with lower material consumption and higher forming efficiency than enamel liner manufacturing machines, effectively lowering overall production expenditures. Meanwhile, plastic liners feature superior thermal insulation properties over stainless steel alternatives, helping users save long-term energy costs in actual application.
Superior Product Quality: The machine achieves ultra-precise wall thickness control. The integrally formed liner is weld-free with excellent tightness, outstanding corrosion resistance and anti-aging capability, which greatly extends the service life of finished products. Adopting top-brand core components, the equipment runs steadily and effectively reduces the factory defective rate.
Low Operation & Maintenance Cost: Featuring full automatic intelligent control and ergonomic human-machine interface, the equipment is easy to operate and master for new workers. Optimized mechanical structure simplifies daily maintenance procedures. Supported by professional and responsive after-sales service, it effectively cuts enterprise operational and maintenance expenses.
Flexible Customization Capacity: The machine supports personalized specification customization according to customer production requirements. It is adaptable to the production of 120L to 1500L water heater inner tanks, fully satisfying the differentiated and customized production demands of various solar equipment manufacturers.

Product Distinctive Features

1. High Efficiency & Energy Saving Performance: Equipped with advanced servo hydraulic systems, the machine delivers remarkable energy-saving effects. The upgraded multi-layer co-extrusion process optimizes raw material utilization rate, while full-automatic production workflow minimizes manual workload and shortens production cycle costs.
2. Stable & Reliable Operation: Manufactured with premium 38GYMOALA mold materials and high-precision standard parts, the whole machine maintains stable running status with low failure frequency, effectively prolonging the overall service life of the equipment.
3. Superior Molding Precision: Equipped with MOOG professional wall thickness adjustment system and precise electronic ruler stroke control technology, the equipment ensures accurate dimensions and uniform wall thickness of finished water tanks, greatly upgrading overall product quality and consistency.
4. Strong Compatibility & Versatility: The equipment supports matching with various mold specifications and can produce water tanks of different capacities. It is highly adaptable to HDPE and other common plastic raw materials, perfectly catering to diversified market production requirements.
5. User-friendly Operation Experience: Adopting a concise and intuitive human-machine interface, the device supports simple parameter configuration and rapid fault diagnosis. It lowers operational technical barriers and effectively reduces enterprise staff training costs.

Application Scenarios

1. Civil Water Storage Sector
This blow molding machine is specialized in manufacturing household small water tanks and secondary water supply containers for daily domestic water reserve. It is widely applicable for water storage usage in family residences, residential communities and civilian living scenarios.
2. Industrial Supporting Applications
The equipment is available for mass production of chemical storage tanks, industrial waste liquid treatment containers and circulating cooling water tanks, fully satisfying various liquid storage and circulation demands in industrial manufacturing processes.
3. Agricultural Irrigation and Breeding Industry
It can produce dedicated water tanks for farmland water-saving irrigation and livestock breeding water storage. The finished products effectively support modern agricultural irrigation, poultry breeding water reserve and daily farm production.
4. New Energy Industry
Featuring professional multi-layer co-extrusion technology, the machine is ideal for producing solar water heater inner liners and heat pump water storage tanks, greatly improving the thermal insulation and anti-corrosion performance of new energy water storage equipment.
5. Municipal and Construction Engineering
The machine supports the production of municipal temporary water storage tanks, construction water storage containers and standard fire-fighting water tanks, covering comprehensive supporting demands for urban construction, municipal projects and building facilities.

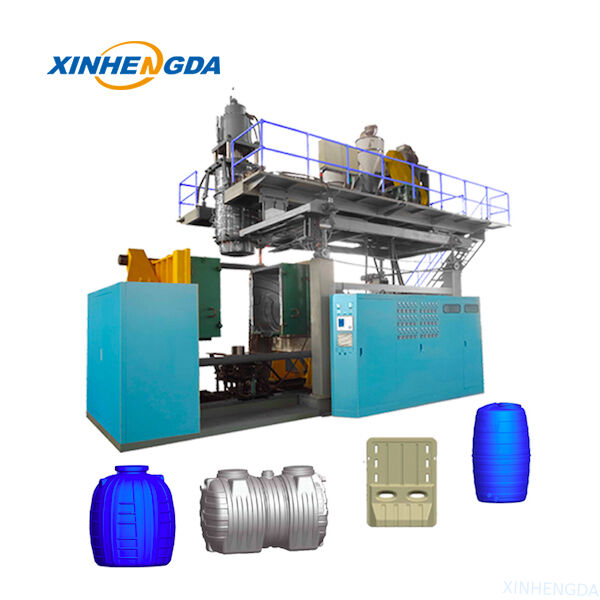

500L 1000L Water Tank Blow Moulding Machine Water Cooling Plastic Container Forming Equipment 0

500L 1000L Water Tank Blow Moulding Machine Water Cooling Plastic Container Forming Equipment 1
