Detail Information

Coolingsystem:	Water Cooling	Productname:	Water Treatment Tank Blow Molding Machine
Application:	Manufacturing Water Treatment Tanks	Machinetype:	Blow Molding Machine
Plastic Processed:	PE, HDPE，PP	Key Selling Points:	Energy Saving
Automation:	Automatic	Condition:	New
Highlight:	1000L water tank blow molder , large water cooling blow molding machine , stable molding water tank machine

Product Description

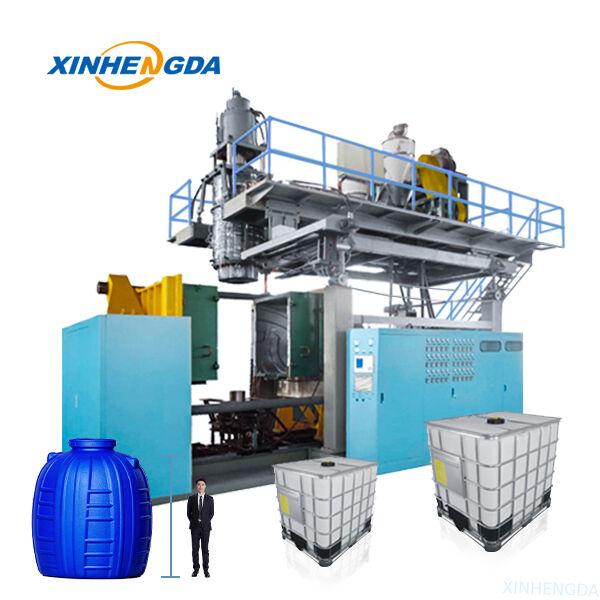

1000L Water Tank Moulding Machine Stable Molding Large Water Cooling Blow Molder

Product Introduction

Xinhengda water tank blow molding machine adopts mature extrusion blow molding process, equipped with high-performance FIFO accumulator, professional MOOG wall thickness adjustment system and servo hydraulic driving system. It supports 1 to 5 layers of co-extrusion molding and enables automatic production of HDPE plastic water tanks in specifications ranging from 20L to 10000L.

The equipment applies PLC intelligent control and intuitive human-machine interface, paired with automatic robotic arm material picking. Optimized for HDPE raw material processing, it realizes high-efficiency production with outstanding energy-saving performance. The machine is widely applicable in civilian water storage, industrial auxiliary production, new energy equipment and many other industrial fields.

Tabular Parameters

Key attributes

plastic processed

PE, HDPE

Clamping Force (kN)

800

automation

Automatic

voltage

380-415V

key selling points

Energy Saving

warranty

1 Year

plc brand

core components

PLC, Gearbox, Motor

machinery test report

Provided

video outgoing-inspection

Provided

output (kg/h)

240 kg/h

place of origin

Shandong, China

power (kw)

weight (t)

brand name

XINGHENGDA

dimension(l*w*h)

10*3*5

Screw L/D Ratio

screw diameter (mm)

110 mm

screw heating power(kw)

31.5 kW

extruder motor power(kw)

40 kW

mold platen size(width)(mm)

1350 mm

mold platen size(height)(mm)

1350 mm

air pressure(mpa)

0.8 MPa

air comsumption(m³/min)

0.2 m³/min

die head heating power(kw)

30 kW

Blow Moulding Type

Extrusion Blow Moulding

Automatic

Yes

After-sales Service Provided1

Field installation, commissioning and training

After-sales Service Provided2

Engineers available to service machinery overseas

Weight

25TON

Certification

CE and ISO9001:2008

Clamping Force

800KN

Power

229-292KW

Product Core Functions

1.Precise Extrusion and Wall Thickness Calibration: Equipped with a FIFO accumulator and high-precision MOOG wall thickness control module, the machine realizes accurate parison thickness adjustment. It keeps the water tank wall thickness highly uniform and effectively strengthens product rigidity and service durability.
2.Efficient Mold Opening & Stable Mold Locking: Supported by linear guide rail transmission and electronic ruler stroke control, the mold moving speed can reach 600mm/s. With stable and adequate clamping force, the equipment guarantees outstanding molding accuracy and continuous operational stability.
Intelligent Automated Production: Built with an automatic robot picking system, the machine greatly reduces manual participation. It significantly upgrades production efficiency and minimizes overall labor costs.
3.High-efficiency Energy-saving Hydraulic System: Adopting advanced servo hydraulic control technology, the equipment achieves 40% lower energy consumption than traditional hydraulic units, effectively lowering long-term operational expenses.
4.Multi-layer Co-extrusion Molding: It supports flexible production from single-layer to five-layer co-extrusion. The machine can manufacture multi-functional composite water tanks to satisfy customized requirements of anti-permeability, anti-aging and other special performance standards.
5.Intelligent Operation and Real-time Monitoring: Featuring PLC intelligent control and human-machine interaction interface, the equipment displays real-time operating status, production data and fault alarm prompts, ensuring simple operation and easy daily maintenance.

Product Competitive Advantages

1.Cost Optimization: When compared with enamel liner manufacturing equipment, this machine produces hollow plastic liners with lower material consumption and higher forming efficiency, helping enterprises cut down comprehensive manufacturing expenses. In contrast with stainless steel liners, plastic liner products deliver superior thermal insulation performance and effectively reduce long-term energy consumption in practical application.
2.Reliable Quality Performance: The equipment features high-precision wall thickness control. The integrally formed liner structure is weld-free with excellent tightness, strong corrosion resistance and outstanding anti-aging ability, which greatly prolongs product service life. Adopting world-renowned brand core parts, the machine runs steadily during mass production and effectively lowers the defective product rate.
3.Convenient Operation & Low Maintenance Cost: Supported by full automatic intelligent control and intuitive human-machine interface, the equipment features low learning difficulty for operators. Optimized mechanical structure design enables quick and convenient daily maintenance. Matched with responsive after-sales support, it greatly reduces the enterprise’s overall operating and maintenance costs.
4.Flexible Customization Capacity: The equipment supports personalized model configuration based on customer production requirements. It is applicable for manufacturing inner tanks with capacities from 120L to 1500L, fully meeting the differentiated and customized production demands of various solar water heater manufacturers.

Product Distinctive Features

1.High Efficiency & Energy Conservation: Equipped with advanced servo hydraulic configuration, the machine achieves remarkable power saving effects. The optimized multi-layer co-extrusion process greatly boosts raw material utilization rate, while intelligent automatic production effectively saves labor resources and shortens production cycle.
2.Stable & Durable Performance: Adopting premium mold materials including 38GYMOALA and high-precision original components, the equipment maintains smooth and stable operation with low failure rate, effectively extending the overall service lifespan of the whole machine.
3.High Molding Precision: Equipped with MOOG wall thickness adjusting system and accurate electronic ruler stroke control technology, the equipment guarantees precise dimension and uniform wall thickness for finished water tanks, greatly improving overall product quality and consistency.
4.Strong Operational Flexibility: The machine is compatible with multiple mold specifications and supports the production of water tanks with different volumes. It adapts well to HDPE and other common plastic raw materials, perfectly satisfying diversified customized market production needs.
5.User-friendly Operation: Featuring a simplified and intuitive human-machine interface, the equipment supports one-click parameter setting and fast fault identification. It lowers operational technical barriers and helps enterprises reduce staff training expenses.

Application Scenarios

1.Civil Water Storage Industry
This machine is dedicated to the production of household miniature water tanks and secondary water supply containers for daily domestic water storage. It is widely applicable for daily water storage scenarios in family households and community residential areas.
2.Industrial Supporting Industry
The equipment is capable of processing chemical material storage tanks, industrial waste liquid treatment containers and cooling circulation water tanks, fully catering to various liquid storage and circulating water demands during factory production and operation.
3.Agricultural Irrigation & Breeding Industry
It can manufacture special water tanks for farmland irrigation and livestock breeding. The finished products are widely used for agricultural water-saving irrigation and aquaculture water reserve, providing reliable supporting guarantees for modern agricultural development.
4.New Energy Industry
The machine applies multi-layer co-extrusion technology to produce high-performance solar water heater inner liners and heat pump water storage tanks, effectively enhancing the thermal insulation and anti-corrosion properties of new energy water storage equipment.
5.Municipal & Construction Engineering Industry
It supports the production of temporary water storage containers for municipal projects, construction water storage tanks and standard fire-fighting water tank facilities, meeting the diversified supporting needs of urban construction and municipal engineering projects.

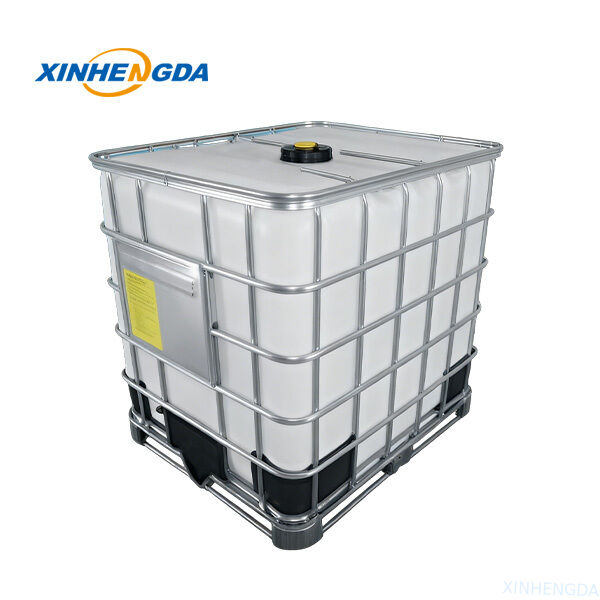

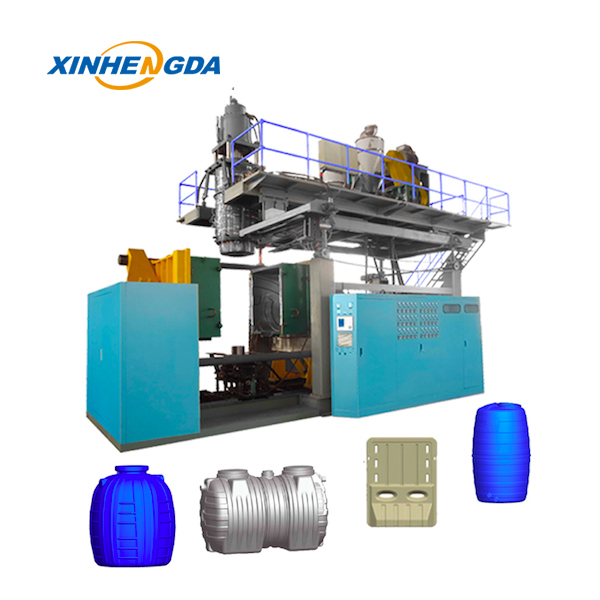

1000L Water Tank Moulding Machine Stable Molding Large Water Cooling Blow Molder 0

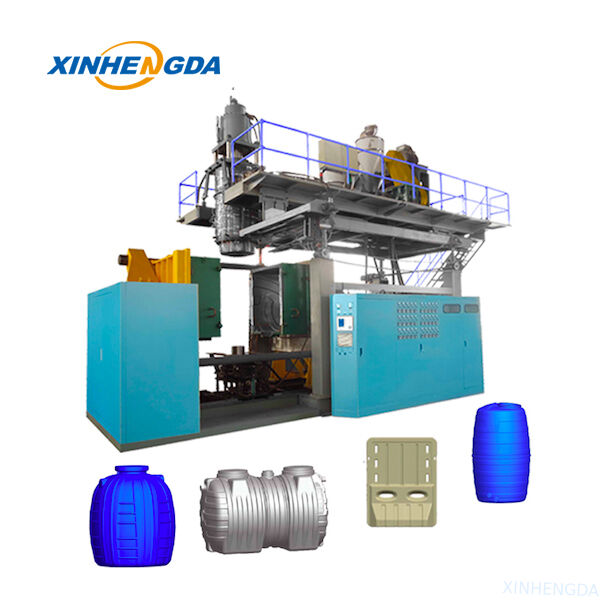

1000L Water Tank Moulding Machine Stable Molding Large Water Cooling Blow Molder 1
