Detail Information

Coolingsystem:	Water Cooling	Productname:	Water Treatment Tank Blow Molding Machine
Application:	Manufacturing Water Treatment Tanks	Machinetype:	Blow Molding Machine
Moldingcapacity:	500-2000 Liters	Condition:	New
Material:	High-density Polyethylene (HDPE)
Highlight:	1000L water tank moulding machine , industrial plastic barrel blow machinery , high yield water tank blow molding machine

Product Description

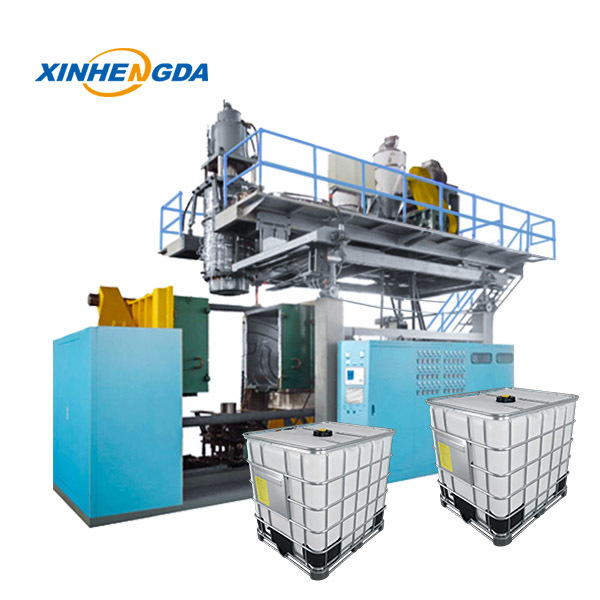

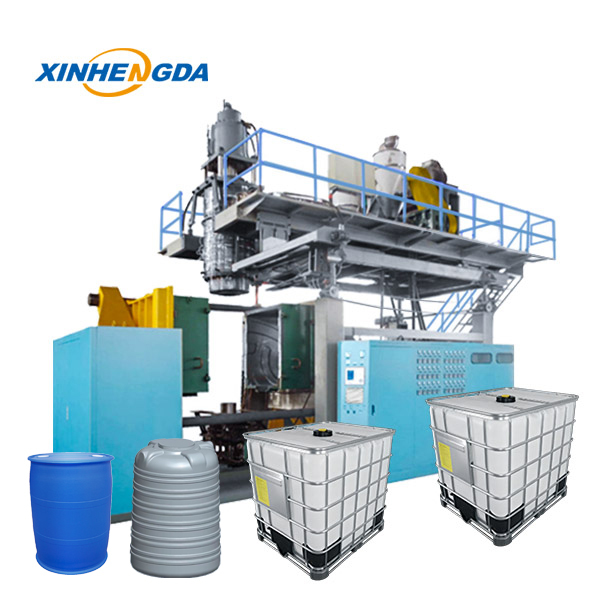

1000L Water Tank Moulding Machine High Yield Industrial Plastic Barrel Blow Machinery

Product Introduction

Xinhengda water tank blow molding machine adopts professional extrusion blow molding technology. It is equipped with a high-performance accumulator, MOOG wall thickness control system and servo hydraulic system, supporting 1 to 5 layers of co-extrusion. The equipment can automatically produce HDPE plastic water tanks with capacities from 20L to 10000L.

Adopting PLC and human-machine interface with robotic arm automatic picking function, this HDPE processing machine features stable efficiency and energy-saving performance. It is widely used in civil water storage, industrial matching and new energy fields.

Tabular Parameters

Key attributes

plastic processed

PE, HDPE

Clamping Force (kN)

800

automation

Automatic

voltage

380-415V

key selling points

Energy Saving

warranty

1 Year

plc brand

core components

PLC, Gearbox, Motor

machinery test report

Provided

video outgoing-inspection

Provided

output (kg/h)

240 kg/h

place of origin

Shandong, China

power (kw)

weight (t)

brand name

XINGHENGDA

dimension(l*w*h)

10*3*5

Screw L/D Ratio

screw diameter (mm)

110 mm

screw heating power(kw)

31.5 kW

extruder motor power(kw)

40 kW

mold platen size(width)(mm)

1350 mm

mold platen size(height)(mm)

1350 mm

air pressure(mpa)

0.8 MPa

air comsumption(m³/min)

0.2 m³/min

die head heating power(kw)

30 kW

Blow Moulding Type

Extrusion Blow Moulding

Automatic

Yes

After-sales Service Provided1

Field installation, commissioning and training

After-sales Service Provided2

Engineers available to service machinery overseas

Weight

25TON

Certification

CE and ISO9001:2008

Clamping Force

800KN

Power

229-292KW

Product Core Functions

1. Accurate Extrusion & Wall Thickness Regulation: Equipped with a FIFO (First In First Out) accumulator and advanced MOOG wall thickness control system, the machine realizes high-precision adjustment of parison thickness. It guarantees consistent wall thickness for finished water tanks and effectively enhances product structural strength and service durability.
2. High-efficiency Mold Closing & Stable Locking: Adopting linear guide positioning and electronic ruler stroke control technology, the mold opening and closing speed can reach 600mm/s. With powerful and steady mold clamping force, the equipment maintains outstanding molding precision and operational stability during mass production.
3. Full-automatic Production Operation: Fitted with intelligent robotic arm automatic picking mechanism, the equipment minimizes manual participation. It greatly boosts overall production efficiency and cuts down enterprise labor input costs.
4. Energy-efficient Hydraulic System: Featured with servo hydraulic intelligent control, this system achieves 40% lower energy consumption than conventional hydraulic devices, significantly reducing long-term operational and power consumption costs.
5. Multi-layer Co-extrusion Molding Technology: It supports flexible molding from single-layer to five-layer co-extrusion. The machine is capable of manufacturing functional composite water tanks to satisfy customized requirements such as anti-permeability and anti-aging performance.
6. Intelligent Control & Real-time Monitoring: Integrated with PLC intelligent control system and human-machine interactive panel, the equipment displays real-time operating status, production data and fault alarm information. It simplifies daily operation and routine maintenance work.

Product Competitive Advantages

Cost Superiority: Compared with enamel liner manufacturing devices, the plastic hollow liners produced by this machine feature lower material costs and higher forming efficiency, effectively cutting comprehensive production expenses. Meanwhile, plastic inner tanks deliver better thermal insulation than stainless steel liners, helping enterprises reduce energy consumption costs in long-term application.
Quality Strengths: The equipment achieves high-precision wall thickness control. The integrally formed liner requires no welding seams, boasting excellent tightness, corrosion resistance and anti-aging properties, which greatly prolongs service life. Equipped with internationally renowned brand components, the machine runs steadily and effectively lowers the defective rate of finished products.
Operation & Maintenance Benefits: Adopting full intelligent automatic control and intuitive human-machine interface, the equipment is simple to operate and easy for workers to master. With optimized and reasonable structural design, the machine supports quick and convenient daily maintenance. Cooperated with responsive after-sales support, it effectively reduces the overall operation and maintenance cost of enterprises.
Customization Capability: We provide personalized model customization services based on customer demands. The equipment is applicable for producing solar water heater inner tanks ranging from 120L to 1500L, fully satisfying the differentiated production requirements of various solar equipment manufacturers.

Product Distinctive Features

High Efficiency & Energy Conservation: Equipped with an advanced servo hydraulic system, the machine achieves outstanding power-saving effects. The adoptive multi-layer co-extrusion process greatly improves raw material utilization rate, while the full-automatic production mode effectively saves labor resources and time costs.
Stable & Dependable Performance: The machine adopts premium mold materials including 38GYMOALA and high-precision matching parts. With rigorous assembly technology, the equipment runs smoothly with low failure frequency and realizes a longer overall service lifespan.
High Forming Precision: Integrated with MOOG wall thickness adjustment system and electronic ruler stroke precise control, the equipment guarantees accurate dimensions and uniform wall thickness for finished water tanks, comprehensively upgrading finished product quality and consistency.
Strong Compatibility & Flexibility: It supports matching with various mold specifications and can produce water tanks of different volumes. The machine is well compatible with HDPE and other mainstream plastic raw materials, fully covering diversified market production demands.
User-friendly Operation: Featuring a concise and intuitive human-machine interaction interface, the device supports simple parameter setting and quick fault diagnosis. It lowers operational technical barriers and effectively reduces staff training expenses for enterprises.

Application Scenarios

Civil Water Storage Sector

This machine is capable of manufacturing household mini water tanks and secondary water supply tanks for daily domestic water storage. It perfectly adapts to daily water usage scenarios for individual families and residential communities.

Industrial Supporting Sector

It supports the production of chemical material storage tanks, industrial waste liquid treatment tanks and cooling circulation water tanks, which fully meet various liquid storage and circulating water usage requirements in industrial production.

Agricultural Irrigation and Breeding Sector

The equipment produces dedicated farmland irrigation tanks and breeding water storage tanks, which are widely applied to agricultural water-saving irrigation and livestock breeding water reserve to assist efficient agricultural production.

New Energy Industry Sector

It is applicable to the manufacturing of solar water heater inner tanks and heat pump water storage tanks. Adopting multi-layer co-extrusion technology, the finished products achieve improved thermal insulation and corrosion resistance.

Municipal and Construction Sector

It is used for manufacturing temporary water storage tanks for municipal projects, construction water storage containers and supporting fire water tanks, covering comprehensive supporting demands for municipal engineering and building construction.

1000L Water Tank Moulding Machine High Yield Industrial Plastic Barrel Blow Machinery 0

1000L Water Tank Moulding Machine High Yield Industrial Plastic Barrel Blow Machinery 1

Tag:

Place of Origin:	Shibu Industrial Park Changyi City Shandong Province China
Brand Name:	XINHENGDA
Model Number:	Water tank Loft tank Blow Moulding Machine

Minimum Order Quantity:	1
Price:	Contact me
Delivery Time:	Regular orders ship in 90 days; for customized products, please contact me for the timeline.
Payment Terms:	L/C,D/A,T/T,Western Union,D/P
Supply Ability:	90+
