Detail Information

Machinetype:	Blow Molding Machine	Materialcompatibility:	HDPE, LDPE, PP
Automation:	Fully Automatic	Machine Type:	Blow Molding Machine
Automationlevel:	Semi-automatic Or Fully Automatic Options	Material Compatibility:	Polyethylene (PE), Polypropylene (PP)
Power Consumption:	Low	Production Speed:	Adjustable
Application:	Manufacturing Water Tanks	Material:	Plastic
Highlight:	1000L water tank blow molding machine , IBC tank blow molding machine , overhead water storage tank machine

Product Description

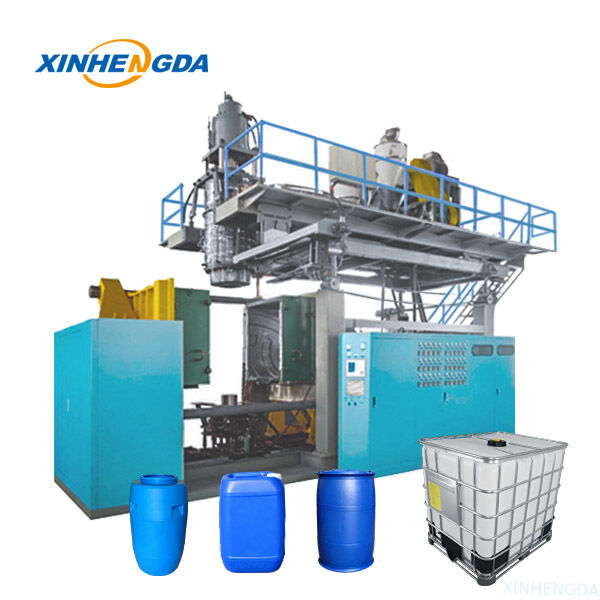

1000L Water Tank Blow Molding Machine for IBC and overhead water storage tanks

Product Introduction

Xinhengda’s dedicated water tank blow molding machine adopts extrusion blow molding technology, equipped with a high-quality primary discharge storage tank, MOOG wall thickness control system and servo hydraulic system. It supports 1 to 5-layer co-extrusion and allows for automated production of plastic water tanks with specifications from 20L to 10000L. Integrated with PLC control and a human-machine interface, the equipment is matched with a robotic arm for automatic product handling and is compatible with HDPE raw materials. It achieves an optimal balance between high production efficiency and energy conservation, and is widely applied in domestic water storage, industrial supporting facilities, new energy and other related fields.

Tabular Parameters

Key attributes

plastic processed

PE, HDPE

Clamping Force (kN)

800

automation

Automatic

voltage

380-415V

key selling points

Energy Saving

warranty

1 Year

plc brand

Siemens

core components

PLC, Gearbox, Motor

machinery test report

Provided

video outgoing-inspection

Provided

output (kg/h)

240 kg/h

place of origin

Shandong, China

power (kw)

weight (t)

brand name

XINGHENGDA

dimension(l*w*h)

10*3*5

Screw L/D Ratio

screw diameter (mm)

110 mm

screw heating power(kw)

31.5 kW

extruder motor power(kw)

40 kW

mold platen size(width)(mm)

1350 mm

mold platen size(height)(mm)

1350 mm

air pressure(mpa)

0.8 MPa

air comsumption(m³/min)

0.2 m³/min

die head heating power(kw)

30 kW

Blow Moulding Type

Extrusion Blow Moulding

Automatic

Yes

After-sales Service Provided1

Field installation, commissioning and training

After-sales Service Provided2

Engineers available to service machinery overseas

Weight

25TON

Certification

CE and ISO9001:2008

Clamping Force

800KN

Power

229-292KW

Product Core Functions

1. Precise Extrusion & Wall Thickness Control Fitted with a first-in first-out (FIFO) accumulator head andpalired with the MOOG wall thickness control system, it enables precise adjustment of parison thickness. Thisguarantees uniform wall thickness of finished water tanks, while enhancing product structural strength andprolonging service life.
2. High-Speed Mold Camping & Stable Locking: Adopting linear guide rail guidance and electronic rulerstroke positioning, the mold opening and ciosing speed can reach up to 60omm/s. It provides ampleclamping force to maintain stable molding accuracy and reliable running performance.
3. Fully Automatic Production Line: Equipped with a robotic arm for automatic product extraction, itminimizes manual operation, greatly improves overall production efficiency, and effectively reduces laborcosts.
4. Energy-Efficient Servo Hydraulic System: Adopts advanced servo hydraulic control technology, reducingenergy consumption by up to 40% compared with conventional hydraulic systems, and lowering long-termoperating costs.
5. Multi-Layer Co-Extrusion Function: Supports single-layer to five-layer co-extrusion molding, capable ofproducing high-performance composite water tanks. It satisfies special requirements including UV resistanceand anti-leakage for various applications.
6. Intelligent Control & Real-Time Monitoring: Integrated with PLC control and user-friendly human-machine interface (HM), it displays real-time running status, production parameters and fault alarms. Thisensures simple operation and convenient maintenance.

Product Competitive Advantages

1. Cost-Efficiency Advantage: Compared with enamel inner liner production lines, the plastic hollow innerliners made by this machine feature lower material costs and higher molding efficiency, thus reducing overalproduction expenses. In contrast to stainless steel inner liners, plastic liners provide better heat insulationperformance and help cut down energy costs during actual use.
2. Superior Quality Advantages: With precise wall thickness control, the inner liners are integrally formedwithout welding seams, featuring excellent sealing, corrosion resistance and anti-aging properties to extendservice life. The adoption of branded components ensures stable machine operation and effectively lowersthe product defect rate.
3. Easy Operation & Maintenance: The full-automatic control system is equipped with a user-friendly human-machine interface, making operation simple and easy to master. The reasonable structural design supportsconvenient maintenance, and reliable after-sales service further reduces enterprises operation andmaintenancecosts.
4. Flexible Customization: A full range of machine models can be customized according to customerrequirements, suitable for producing inner tanks from 120L to 1500L, and able to meet the personalizeddemands of various solar water heater manufacturers.

Product Distinctive Features

1. High Efficiency & Energy-Saving Capabilities Integrated with a servo hydraulic system, this equipmentdelivers remarkable energy-saving results. The multi-layer co-extrusion technology enhances raw materialutilization, while automated production processes greatly reduce labor input and time costs.
2. Stable & Reliable Performance: Adopting high-quality die materials (such as 38GYMOALA) and precision-machined components, the machine operates stably with low failure rates, effectively extending its serviceife.
3. Excellent Molding Precision: The MOOG wall thickness control system and electronic ruler strokeadjustment ensure consistent tank dimensional accuracy and uniform wall thickness, thus enhancing theoverall quality of finished products
4. Strong Flexible Compatibility: It is compatible with molds of various specifications, supporting theproduction of water tanks across multiple capacity ranges. Furthermore, the equipment works with differentraw materials including HDPE, meeting the diverse market demands.
5. Intuitive Operation Experience: The human-machine interface features a simple and clear layout. Faultdiagnosis and parameter adjustment procedures are optimized, reducing the technical proficiency requiredfor operators and lowering relevant training costs.

Application Scenarios

1. Civil Water Storage Field This machine is designed for manufacturing small household water storage containers and secondary watersupply tanks to meet daily water storage needs, and is widely used in households, residential quarters andother civil scenarios.
2. Industrial Supporting Field It is used to produce chemical storage tanks, waste liquid treatment tanks and industrial cooling circulatingwater tanks, satisfying various liquid storage requirements in the whole process of industrial production.
3. Agricultural Irrigation FieldThe equipment manufactures agricultural irrigation tanks and aquaculture water storage tanks, which areapplied in water-saving imrigation systems and livestock farming water storage, providing strong support foragricultural production.
4. New Energy Field It is suitable for producing solar water heater inner tanks and heat pump water storage tanks. The applicationof multi-layer co-extrusion technology effectively improves the thermal insulation and anti-corrosionperformance of the products.
5. Municipal & Construction Field This equipment is used to produce temporary water storage tanks for munidipal engineering, constructionsite water storage tanks, as well as fire water tanks and other supporting facilities for construction projects.

1000L Water Tank Blow Molding Machine for IBC and overhead water storage tanks 0

1000L Water Tank Blow Molding Machine for IBC and overhead water storage tanks 1

Tag:

Place of Origin:	Shibu Industrial Park Changyi City Shandong Province China
Brand Name:	XINHENGDA
Model Number:	Water tank Loft tank Blow Moulding Machine

Minimum Order Quantity:	1
Price:	Contact me
Delivery Time:	Regular orders ship in 90 days; for customized products, please contact me for the timeline.
Payment Terms:	L/C,D/A,T/T,Western Union,D/P
Supply Ability:	90+
