Detail Information

Machinetype:	Blow Molding Machine	Materialcompatibility:	HDPE, LDPE, PP
Layer:	3	Condition:	New
Application:	Water Tank Manufacturing	Productname:	Water Tank Blow Molding Machine
Highlight:	water tank blow molding machine 1000l , 1000l blow moulding equipment , ibc blow moulding equipment

Product Description

Blow Moulding Equipment 1000L Capacity for IBC Loft Water Storage Tanks

Product Introduction

Xinhengda’s specialized water tank blow molding machine adopts extrusion blow molding technology, fitted with a high-quality primary discharge storage tank, MOOG wall thickness control system and servo hydraulic system. It supports 1 to 5-layer co-extrusion and enables automated manufacturing of plastic water tanks with specifications ranging from 20L to 10000L. Integrated with PLC control and a human-machine interface, the equipment is paired with robotic arm for automatic product handling and is compatible with HDPE raw materials. It strikes an optimal balance between high production efficiency and energy saving, and is widely used in domestic water storage, industrial supporting facilities, new energy and other fields.

Tabular Parameters

Key attributes

plastic processed

PE, HDPE

Clamping Force (kN)

800

automation

Automatic

voltage

380-415V

key selling points

Energy Saving

warranty

1 Year

plc brand

Siemens

core components

PLC, Gearbox, Motor

machinery test report

Provided

video outgoing-inspection

Provided

output (kg/h)

240 kg/h

place of origin

Shandong, China

power (kw)

weight (t)

brand name

XINGHENGDA

dimension(l*w*h)

10*3*5

Screw L/D Ratio

screw diameter (mm)

110 mm

screw heating power(kw)

31.5 kW

extruder motor power(kw)

40 kW

mold platen size(width)(mm)

1350 mm

mold platen size(height)(mm)

1350 mm

air pressure(mpa)

0.8 MPa

air comsumption(m³/min)

0.2 m³/min

die head heating power(kw)

30 kW

Blow Moulding Type

Extrusion Blow Moulding

Automatic

Yes

After-sales Service Provided1

Field installation, commissioning and training

After-sales Service Provided2

Engineers available to service machinery overseas

Weight

25TON

Certification

CE and ISO9001:2008

Clamping Force

800KN

Power

229-292KW

Product Core Functions

1.Precise Extrusion & Wall Thickness Control: Equipped with a first-in first-out (FIFO) storage tank and matched with the MOOG wall thickness regulation system, it allows for accurate fine-tuning of parison thickness. This ensures consistent wall uniformity of finished water tanks, while improving the product’s structural robustness and extending its service lifespan.

2.High-Speed Mold Clamping & Reliable Locking Performance: Guided by linear guide rails and positioned via electronic ruler stroke control, the mold opening/closing speed can reach up to 600mm/s. Sufficient mold clamping force is provided to maintain stable molding precision and reliable operational performance.

3.Fully Automated Production Flow: Equipped with a robotic arm for automatic product pickup, it reduces manual intervention to a minimum, elevates overall production efficiency, and lowers labor costs effectively.

4.Energy-Saving Servo Hydraulic System: Integrates servo hydraulic control technology, achieving a 40% energy reduction compared to traditional hydraulic systems and decreasing long-term equipment operational expenses.

5.Multi-Layer Co-Extrusion Molding Capacity: Supports co-extrusion processes from single layer to five layers, enabling the production of functional composite water tanks. It can meet special application demands such as UV resistance and impermeability.

6.Intelligent Control & Real-Time Monitoring System: Comes with PLC control and an intuitive human-machine interface (HMI), which displays equipment operating status, production parameters and fault warnings in real time. This ensures easy operation and convenient maintenance.

Product Competitive Advantages

1. Cost-Efficiency Advantage: As opposed to enamel inner liner production lines, plastic hollow inner liners produced by this equipment come with reduced raw material costs and enhanced molding productivity, which in turn brings down the total production expenditure. When juxtaposed with stainless steel inner liners, plastic versions offer better thermal insulation capabilities and minimize energy consumption costs during the post-production usage period.

2. Premium Quality Advantages: Equipped with accurate wall thickness control, the inner liners are formed in one piece without any weld seams, exhibiting outstanding sealing performance, corrosion resistance and anti-aging features to prolong their service lifespan. The use of branded parts guarantees stable equipment operation and effectively reduces the defective product rate.

3. Ease of Operation & Maintenance: The fully automated control system is combined with an intuitive human-machine interface, enabling simple operation and rapid proficiency. The equipment’s reasonable structural design allows for convenient maintenance, and timely after-sales support further lowers the operation and maintenance costs for businesses.

4. Customization Versatility: Equipment models in various specifications can be tailored to meet customer needs, suitable for manufacturing inner tanks ranging from 120L to 1500L, and able to fulfill the personalized requirements of different solar water heater manufacturers.

Product Distinctive Features

1. High Efficiency & Energy-Saving Capabilities: Equipped with a servo hydraulic system, it achieves outstanding energy conservation effects. The multi-layer co-extrusion technology boosts the utilization efficiency of raw materials, and automated production workflows reduce labor input and time costs significantly.

2. Stable & Reliable Performance: By adopting high-grade die materials (such as 38GYMOALA) and precision-processed components, the equipment maintains stable operation with low failure probabilities, effectively prolonging its service lifespan.

3. Excellent Molding Precision: MOOG wall thickness control system and electronic ruler stroke adjustment guarantee consistent tank dimension accuracy and even wall thickness, thereby improving the overall quality of end products.

4. Strong Flexible Compatibility: It works with molds of various specifications, supporting the production of water tanks in multiple capacity ranges. Additionally, the equipment is compatible with different raw materials like HDPE, catering to the diverse requirements of the market.

5. Intuitive Operation Experience: The human-machine interface boasts a concise layout. Fault diagnosis and parameter adjustment processes are streamlined, lowering the technical skill requirement for operators and cutting down associated training expenses.

Application Scenarios

1. Civil Water Storage Field This equipment is engineered to produce small household water storage vessels and secondary water supply tanks for domestic water storage needs, making it perfectly suited for use in households, residential communities and other residential-oriented scenarios.

2. Industrial Supporting Field It fabricates chemical raw material storage tanks, waste liquid disposal tanks and industrial cooling cycle water tanks, meeting the various liquid storage demands across the entire production process of factory operations.

3. Agricultural Irrigation Field The machine produces farmland irrigation water tanks and aquaculture water storage tanks, which are utilized in agricultural water-saving irrigation systems and water reserve for livestock and poultry farming, delivering robust backing for agricultural production practices.

4. New Energy Field It is highly adaptable for manufacturing solar water heater inner containers and heat pump water storage tanks; the integration of multi-layer co-extrusion technology boosts the thermal insulation and anti-corrosion properties of the finished products in an effective manner.

5. Municipal & Construction Field The equipment is applied to manufacturing tanks for temporary municipal engineering water storage, construction site water storage, as well as auxiliary facilities such as fire water tanks for associated engineering projects.

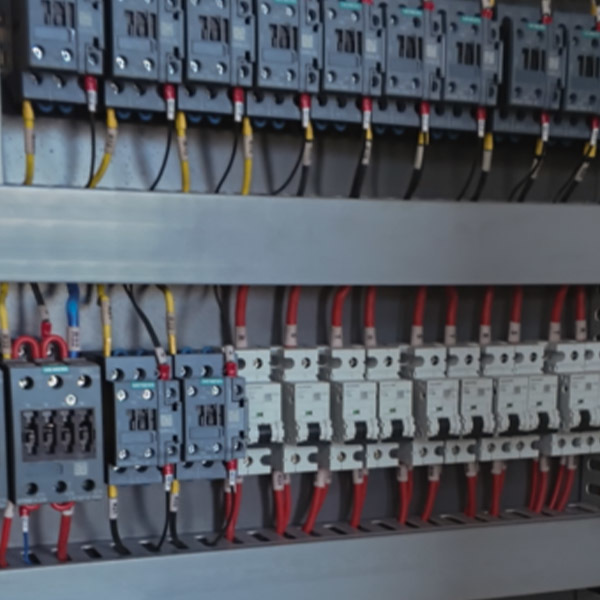

Water Tank Blow Molding Machine 1000L Capacity For IBC Loft Water Storage Tanks 0

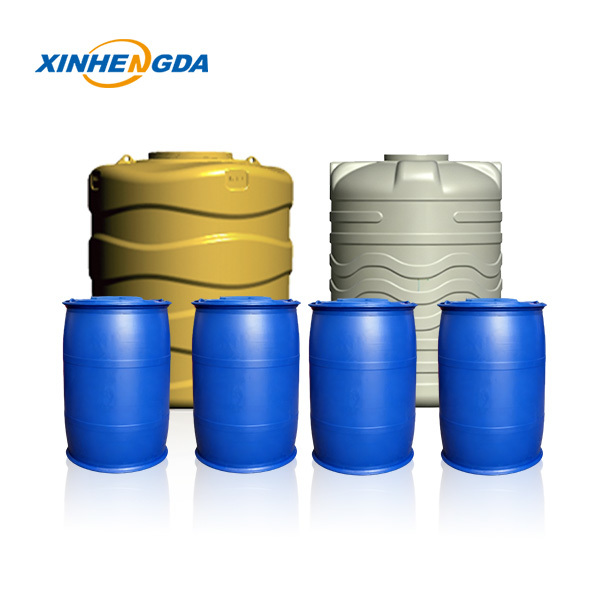

Water Tank Blow Molding Machine 1000L Capacity For IBC Loft Water Storage Tanks 1
