Detail Information

Materialcompatibility:	HDPE, LDPE, PP	Controlsystem:	PLC With Touch Screen
Machinetype:	Blow Molding Machine	Application:	Manufacturing Plastic Tanks
Moldcavity:	Single Or Multi-cavity	Productname:	Tank Blow Molding Machine
Highlight:	plastic tank blow molding machine , plastic tank blow moulding machine , pe/hdpe tank blow molding machine

Product Description

Solar-Compatible Plastic Water Tank Blowing Machine PE/HDPE Processable

Product Introduction

Developed exclusively by Weifang Xinhengda Machinery Co., Ltd., the Solar Tank Blow Molding Machine is a specialized piece of equipment designed for manufacturing hollow inner liners of solar water heaters. It is capable of producing inner liners in a wide specification range from 120L to 1500L, and integrates advanced extrusion technology and precision wall thickness control systems. Compared with conventional production equipment for stainless steel and enamel inner liners, this machine boasts distinct advantages including lower production costs, superior thermal insulation performance and higher molding efficiency, making it well-suited for large-scale production as well as customized manufacturing requirements.

Tabular Parameters

Key attributes

plastic processed

PE, HDPE

Clamping Force (kN)

800

automation

Automatic

voltage

380-415V

key selling points

Energy Saving

warranty

1 Year

plc brand

Siemens

core components

PLC, Gearbox, Motor

machinery test report

Provided

video outgoing-inspection

Provided

output (kg/h)

240 kg/h

place of origin

Shandong, China

power (kw)

weight (t)

brand name

XINGHENGDA

dimension(l*w*h)

10*3*5

Screw L/D Ratio

screw diameter (mm)

110 mm

screw heating power(kw)

31.5 kW

extruder motor power(kw)

40 kW

mold platen size(width)(mm)

1350 mm

mold platen size(height)(mm)

1350 mm

air pressure(mpa)

0.8 MPa

air comsumption(m³/min)

0.2 m³/min

die head heating power(kw)

30 kW

Blow Moulding Type

Extrusion Blow Moulding

Automatic

Yes

After-sales Service Provided1

Field installation, commissioning and training

After-sales Service Provided2

Engineers available to service machinery overseas

Weight

25TON

Certification

CE and ISO9001:2008

Clamping Force

800KN

Power

229-292KW

Product Core Functions

1. Efficient Extrusion Molding Performance: The extrusion system enables stable raw material conveyance and heating plasticization, ensuring continuous and uniform parison extrusion. It is adaptable to the molding requirements of solar water heater inner liners with different specifications.

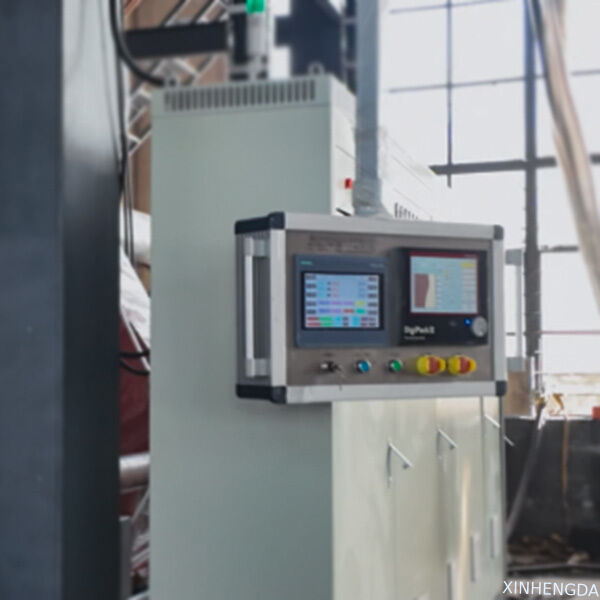

2. Precision Wall Thickness Regulation: Equipped with a MOOG-type parison thickness adjustment system, it can accurately adjust the wall thickness of each part of the parison according to the inner liner structure and stress demands. This avoids local thinning or thickening issues, thereby enhancing product quality and extending service life.

3. Stable Mold Clamping & Injection: The accumulator injection system operates in coordination with the mold clamping system. The clamping force is matched to different machine specifications, ensuring tight mold closure during the inner liner forming process, precise injection volume, and reliable product dimensional accuracy.

4. Intelligent Temperature Control & Cooling: Multi-stage temperature control of the die head guarantees optimal raw material plasticization effect; the cooling system rapidly cools the formed inner liner, shortening the production cycle and boosting overall production efficiency.

5. Fault & Status Monitoring: The PLC control system monitors equipment operating parameters in real time. In the event of a fault, it can promptly issue an alarm and display fault information, facilitating quick troubleshooting and reducing downtime losses.

Product Competitive Advantages

1. Cost Advantage: In comparison with enamel inner liner manufacturing equipment, the plastic hollow inner liners produced by this unit feature lower raw material expenses and higher forming efficiency, enabling the reduction of overall production costs. When contrasted with stainless steel inner liners, plastic inner liners boast superior thermal insulation performance, which cuts down on energy consumption costs during subsequent usage.

2. Quality Advantage: It achieves precise wall thickness control, with no weld seams on the inner liner. This results in excellent sealing performance, along with corrosion resistance and aging resistance, thereby extending the service life. The adoption of accessories from well-known brands ensures stable equipment operation and lowers the defective product rate.

3. Operation and Maintenance Advantage: The unit adopts full automatic control with an intuitive human-machine interface, making operation easy to master. Its rational equipment structure design facilitates maintenance work, and the timely after-sales service helps reduce the operation and maintenance costs for enterprises.

4. Customization Advantage: Models of various specifications can be customized based on customer requirements. It is applicable for the production of various inner tanks ranging from 120L to 1500L, catering to the differentiated needs of different solar water heater manufacturers.

Product Distinctive Features

1. High Specialization: Tailor-made for solar hollow inner liners, every component is optimized to match the inner liner manufacturing process. In contrast to universal blow molding machines, it delivers higher molding precision and operational efficiency.

2. Cutting-Edge Technology: Boasting independent R&D capabilities, it incorporates domestically leading core technologies like precision wall thickness control, driving technological innovation in the inner liner production workflow.

3. Excellent Compatibility: It is capable of adapting to a variety of plastic materials including HDPE, satisfying the production demands of inner liners with diverse performance specifications.

4. Energy Efficiency & Environmental Friendliness: Energy-saving components such as servo oil pumps are adopted to minimize energy consumption. Compared with traditional materials, plastic inner liners generate less pollution during production and are recyclable.

Application Scenarios

Solar water heater manufacturer: Specialized in the mass production of hollow inner tanks for both household and commercial solar water heaters, compatible with various water heater models of different capacities.

New energy supporting industry: Supplies dedicated inner tanks for solar heating systems, solar hot water engineering projects and other related applications, expanding the application scope of solar energy.

Customized processing factory: Undertakes custom orders from clients, producing solar tank liners with special specifications to cater to niche and personalized requirements.

Export processing sector: The equipment and the produced inner tanks are exportable to regions witnessing rapid growth in demand for solar water heaters, such as Southeast Asia, West Asia and North Africa, complying with international market standards.

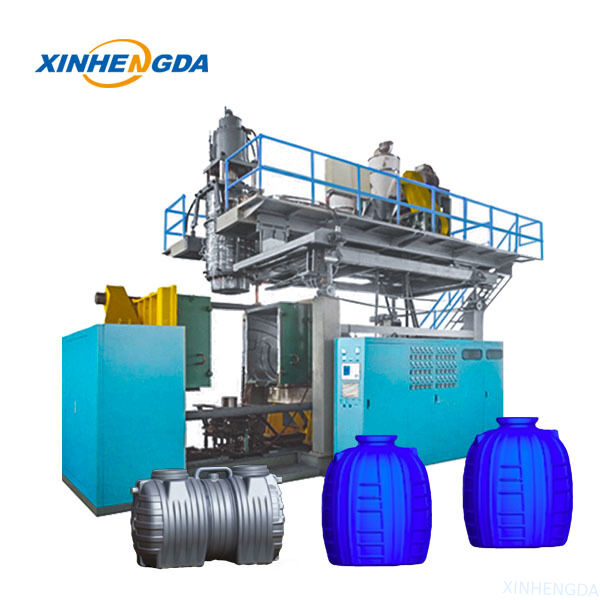

Solar Compatible Plastic Water Tank Blow Molding Machine multi cavity PE/HDPE Processable 0

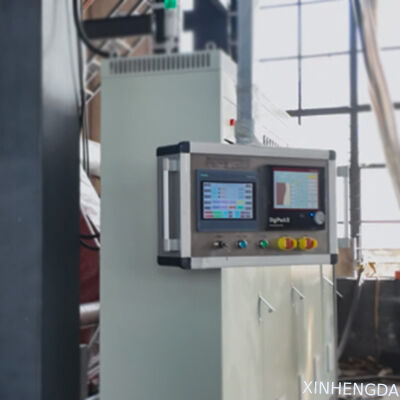

Solar Compatible Plastic Water Tank Blow Molding Machine multi cavity PE/HDPE Processable 1

Tag:

Place of Origin:	Shibu Industrial Park Changyi City Shandong Province China
Brand Name:	XINHENGDA
Model Number:	Solar can blow molding machine

Minimum Order Quantity:	1
Price:	Contact me
Delivery Time:	Regular orders ship in 90 days; for customized products, please contact me for the timeline.
Payment Terms:	L/C,D/A,T/T,Western Union,D/P
Supply Ability:	90+
