Detail Information

Application:	Aquaculture Field Marine Transportation And Leisure Sector Marine Engineering	Automationlevel:	Semi-automatic Or Fully Automatic
Heatingmethod:	Electric Heating	Productname:	Plastic Float Blow Molding Machine
Controlsystem:	PLC Control	Material:	Plastic
Machinetype:	Blow Molding Machine	Moldingprocess:	Blow Molding
Coolingsystem:	Water Cooling
Highlight:	500l float blow molding machine , 500l road barrier blow molding machine , 1000l float blow molding machine

Product Description

500L 1000L 2000L 3000L 5000L Plastic Water tank Barrel Float Blow Molding Machine

Product Introduction

The core advantage of floating object blow molding machines lies in the comprehensive balance of "performance + efficiency + cost," making them particularly suitable for scenarios with high requirements for product reliability and large-scale production. Compared to traditional processes, they not only improve product quality and lifespan but also significantly reduce long-term operating costs, making them the preferred solution for floating object manufacturing.

Tabular Parameters

Key attributes

plastic processed

PE, HDPE

Clamping Force (kN)

800

automation

Automatic

voltage

380-415V

key selling points

Energy Saving

warranty

1 Year

plc brand

Siemens

core components

PLC, Gearbox, Motor

machinery test report

Provided

video outgoing-inspection

Provided

output (kg/h)

240 kg/h

place of origin

Shandong, China

power (kw)

weight (t)

brand name

XINGHENGDA

dimension(l*w*h)

10*3*5

Screw L/D Ratio

screw diameter (mm)

110 mm

screw heating power(kw)

31.5 kW

extruder motor power(kw)

40 kW

mold platen size(width)(mm)

1350 mm

mold platen size(height)(mm)

1350 mm

air pressure(mpa)

0.8 MPa

air comsumption(m³/min)

0.2 m³/min

die head heating power(kw)

30 kW

Blow Moulding Type

Extrusion Blow Moulding

Automatic

Yes

After-sales Service Provided1

Field installation, commissioning and training

After-sales Service Provided2

Engineers available to service machinery overseas

Weight

25TON

Certification

CE and ISO9001:2008

Clamping Force

800KN

Power

229-292KW

Product Core Functions

1.Precise forming function: MOOG wall thickness control system ensures uniform wall thickness of the float, avoiding local thinning or thickening that could affect buoyancy and durability; injection stroke, blowing time, etc. can be precisely set to suit different float shapes (such as round, oval, and irregular-shaped float tubes).

2.High-efficiency production function: The dual-station model can alternate production to enhance efficiency; the secondary lifting and expansion functions of the bottom blowing device are suitable for the special structure forming of floats; the mechanical hand automatically retrieves the products, reducing manual intervention, lowering the breakage rate, and shortening the forming cycle.

3.Intelligent control function: Mitsubishi PLC control + touch screen human-machine interface, real-time display of operating status and fault alarms; parameters can be stored and called, facilitating production changeovers and process optimization.

4.Flexible adaptation function: The die head, blowing needle, etc. can be flexibly configured to suit different sizes and layers of floats; it can be compatible with multiple raw materials such as HDPE, meeting the requirements of float corrosion resistance and anti-aging.

Product Competitive Advantages

Advanced technology and stable molding: Multi-layer co-extrusion technology enhances the strength and impact resistance of the float; MOOG wall thickness control + servo hydraulic system ensures high molding accuracy and low defect rate; core components are selected from internationally renowned brands, reducing equipment failure rate.
Energy-efficient and cost-controllable: The servo hydraulic system saves about 40% energy; dual workstations + automatic part retrieval reduce labor and energy consumption, increasing production capacity per unit time; short molding cycle with aluminum alloy molds further lowers production costs.
Strong customization and wide compatibility: Customizable machine types and molds according to float specifications (size, volume, number of layers); compatible with various raw materials to meet different float performance requirements (such as UV resistance, low-temperature resistance, etc.).
Convenient operation and maintenance: Touchscreen operation for quick learning and low training costs; clear fault alarms for easy and rapid troubleshooting; comprehensive after-sales service with timely supply of spare parts to ensure continuous production.

Product Distinctive Features

Professionalism: Specifically designed for float products, the bottom-blowing structure and expansion function are adapted to the hollow and irregular structure formation of floats, solving the problem of poor compatibility with ordinary blow molding machines.
Stability: The machine body is made of heavy-duty steel structure, guided by linear guides, ensuring stable mold closing and injection; the die head temperature control is precise, the raw material plasticization is uniform, and the quality consistency of the floats is high.
Durability: The core components (screw, die head) are made of high-strength wear-resistant materials, which are fatigue-resistant and wear-resistant, extending the service life of the equipment and suitable for long-term continuous production.
Environmental friendliness: Servo energy saving + electric heating, reducing energy consumption and carbon emissions; raw materials can be recycled, meeting the requirements of green production.

Application Scenarios

Aquaculture field: Produces fishing nets, floats, net cage buoys, and aquaculture platform floats, suitable for freshwater/brackish water farming, corrosion-resistant, and maintains stable buoyancy.
Marine Transportation and Leisure Sector: Used for yacht marina fenders, floating docks, waterborne floating bridges, and aquatic amusement park rafts, offering excellent load-bearing capacity and stability, suitable for varying water level conditions.
Marine Engineering: Manufacturing floating platforms for water operations, dredging project buoyancy bodies, environmental protection floating islands, and buoys, featuring impact resistance and adaptability to complex marine working conditions.
Other fields: such as water safety buoys and fishing detection floats, can be customized with different colors and markings to meet specific functional requirements.

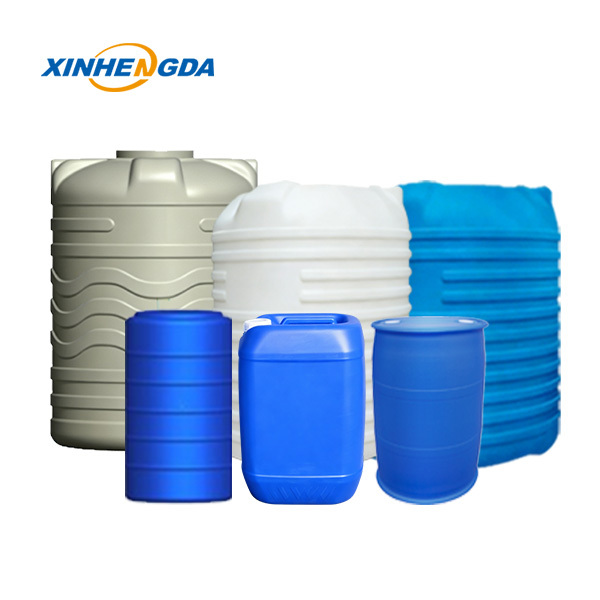

Road Barrier Blow Molding Machine For 500L 1000L 2000L 3000L 5000L Plastic Water Tank Barrel 0

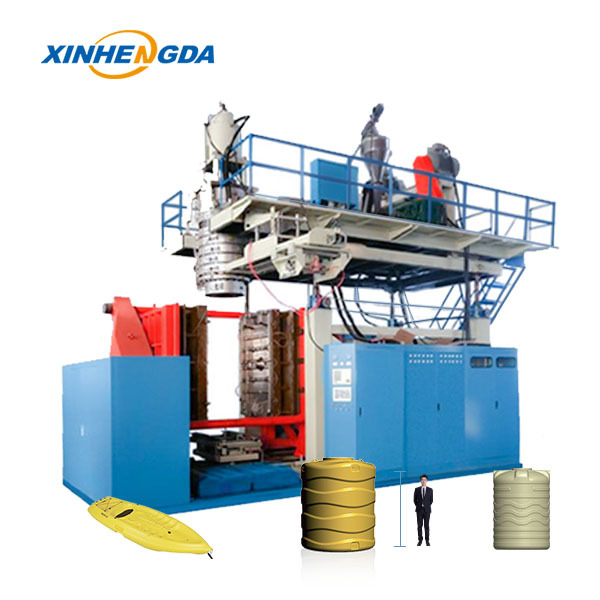

Road Barrier Blow Molding Machine For 500L 1000L 2000L 3000L 5000L Plastic Water Tank Barrel 1
