| Max. Product Volume: | 120 Liters | Dry Cycle: | 350pc/h |
|---|---|---|---|
| Screw Diameter: | 100mm | Screw L/D Ratio: | 25L/D |
| Screw Drive Power: | 55KW | Screw Heating Capacity: | 45Kw |
| Highlight: | bottle injection moulding machine,injection blow molding machine |
||

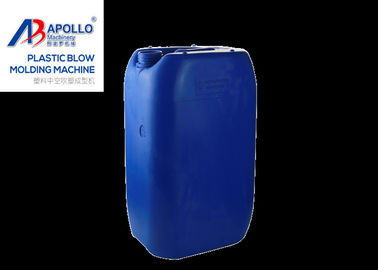

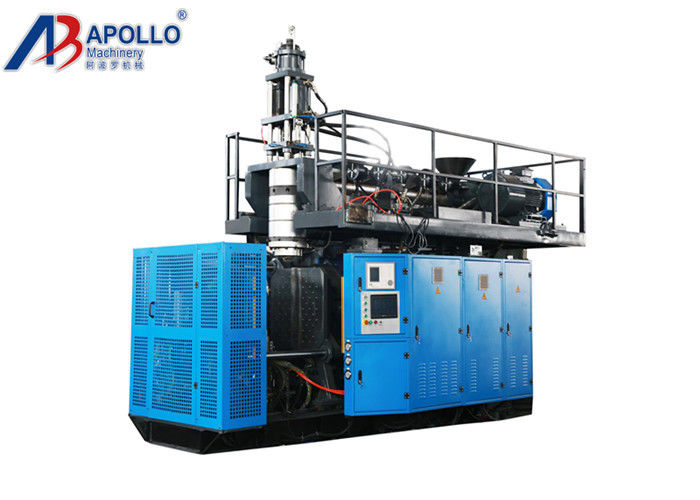

The blow moulding machine abld100 used for producing drums, children toys, boxes water tanks, auto parts etc, it is single station accumulator head mode, which is specially designed for 120l as maximum volume, suitable for hdpe, pe, pp, pvc, petg and other materials for blow moulding.
Product Description
The features of the 120L plastic drum making machine:
(1) It is suitable for producing PE,HDPE,PP, PVC so on,plastic containers and bottles in all shapes are available,the max.product volume is up to 120L.
(2) Single station single die head design,very easy to operate and maintenance.
(3) Most components of the blow moulding machine are from famous world brand.
(4) Fully automatic process with low power consumption,high efficiency,quick and safe operation,easy for maintenance.
(5) Accumulation die head,MOOG parison controller equipped.
(6) Bottom blow technology make the product perfect.
(7) Auto lubricant system controlled by PLC.
(8) The most important: this blow moulding machine is equipped with servo system , it can save 30% power than traditional machines. It can help you make more money.
| Max. Product volume | 120 liters |
| Dry cycle | 350pc/h |
| Screw diameter | 100mm |
| Screw L/D ratio | 25L/D |
| Screw drive power | 55KW |
| Screw heating capacity | 45Kw |
| No.of heating zone | 5zones |
| Output of HDPE | 200 KG/H |
| Oil pump drive power | 37KW |
| Clamping force | 600 KN |
| Max.size of mold | 1150X1150mm |
| Mold stroke | 600-1300mm |
| Max.die diameter | 450mm |
| Die heating power | 45KW |
| Die heating segments | 7zones |
| Blowing pressure | 0.8mpa |
| Air volume | 1.6 M/MIN |
| Cooling water pressure | 0.3mpa |
| Water consumption | 180 L/MIN |
| Size of machine | 5.4 X 2.5 X 4.5m |
| Weight of machine | 15ton |
