| Dry Cycle: | 300pc/h | Screw Diameter: | 90mm*2 |
|---|---|---|---|
| Screw L/D Ratio: | 25L/D | Screw Drive Power: | 55KW*2 |
| Screw Heating Capacity: | 45Kw*2 | No.of Heating Zone: | 4zones*2 |
| Highlight: | plastic bottle blowing machine,blow molding equipment |
||

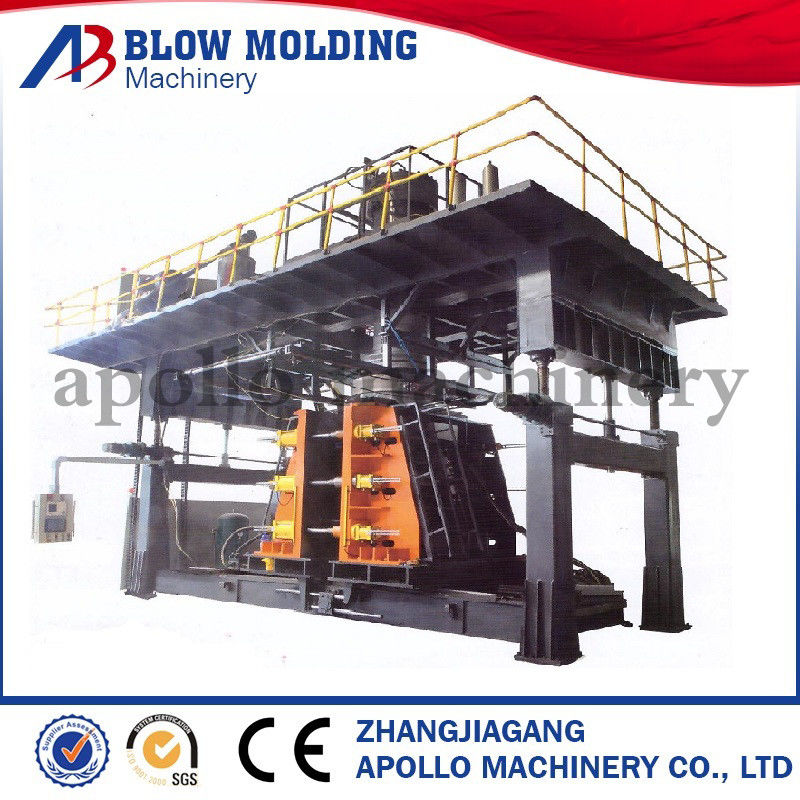

THE BLOW MOULDING MACHINE ABLD200 USED FOR PRODUCING 2000L-3000L WATER TANKS.
MODIFFIED HYDRAULIC SYSTEM & RELIABLE MECHANICAL ACTIONS ARE THE MAIN TRAITS OF ABLD200 SERIES.
Product Description
The features of the 220L plastic drum making machine:
(1) It is suitable for producing PE,HDPE,PP, PVC so on,plastic containers and bottles in all shapes are available,the max.product volume is up to 220L.
(2) Single station single die head design,very easy to operate and maintenance.
(3) Most components of the blow moulding machine are from famous world brand.
(4) Fully automatic process with low power consumption,high efficiency,quick and safe operation,easy for maintenance.
(5) Accumulation die head,MOOG parison controller equipped.
(6) Bottom blow technology make the product perfect.
(7) Auto lubricant system controlled by PLC.
(8) The most important: this blow moulding machine is equipped with servo system , it can save 30% power than traditional machines. It can help you make more money.
| Max. Product volume | 220 liters |
| Dry cycle | 300pc/h |
| Screw diameter | 90mm*2 |
| Screw L/D ratio | 25L/D |
| Screw drive power | 55KW*2 |
| Screw heating capacity | 45Kw*2 |
| No.of heating zone | 4zones*2 |
| Output of HDPE | 300 KG/H |
| Oil pump drive power | 30KW |
| Clamping force | 1200 KN |
| Max.size of mold | 1200X1400mm |
| Mold stroke | 800-1750mm |
| Max.die diameter | 580mm |
| Die heating power | 60KW |
| Die heating segments | 8zones |
| Blowing pressure | 0.8mpa |
| Air volume | 1.6 M/MIN |
| Cooling water pressure | 0.3mpa |
| Water consumption | 180 L/MIN |
| Size of machine | 7.5 X 3.5 X 5.5m |
| Weight of machine | 36ton |
