| Screw Diameter: | 120mm | Screw Drive Power: | 75 KW |
|---|---|---|---|
| No.of Heating Zone: | 5 Zones | Oil Pump Drive Power: | 45 KW |
| Max.die Diameter: | 520mm | ||
| Highlight: | extrusion moulding machine,blow molding equipment |
||

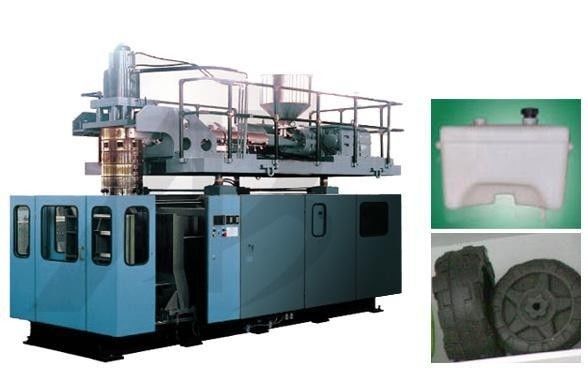

plastic drum making machine 160L-250L Auto Extrusion blow molding machine ABLD120
ABLD120 This machine with a material storage unit is suitable to produce plastic products volume to 160L and ideal cycle can up to 300PC/H. This machine is specially designed for production of various chemical barrels,tool boxes,plastic boards and etc. Big clamping force unit ensure the mold being tightly closed even under great pressure.
Programe design with multifunction guarantee you can produce various craftworks. You don’t only buy one machine,but also a professor products professor. Easy to operate and maintain,operate by one person, professor trained is not required. Low investment with high efficiency.The machine cost will be regained within 1-2 years.
For more information about the machine,please don't hesitate to contact us.
| Max. Product volume | 160 liters | Dry cycle | 300pc/h |
| Screw diameter | 120mm | Screw L/D ratio | 28 L/D |
| Screw drive power | 75 KW | Screw heating capacity | 30 KW |
| No.of heating zone | 5 zones | Output of HDPE | 240 KG/H |
| Oil pump drive power | 45 KW | Clamping force | 800 KN |
| Max.size of mold | 1000X1500mm | Mold stroke | 600-1500mm |
| Max.die diameter | 520mm | Die heating powe | 12 KW |
| Die heating segments | 5 zones | Blowing pressure | 0.8mpa |
| Air volume | 1.6 M/MIN | Cooling water pressure | 0.3mpa |
| Water consumption | 180 L/MIN |
PLC adds the man-machine interface, the touching type is operated, it is convenient to be simple and direct.
Pairs of spiral type flow dishes of first-in first-out store material mould hair, remove and converge the line completely, guarantee the purity of the products.
Multi- import wall thickness control system use, Can satisfy each irregular product to wall thickness request.
Gathers when the mold diffraction grating induction protective device, Increased the operation security.
Various kinds of functions suitable for matching special products, for instance; Leave and blow and go up and down, prop up the material ,the internal and external whorl is rotated, the drawing of patterns,the sub mould is opened and close, seal automatically, automatically take out/manipulator/,etc.
