| Screw Diameter: | 65mm | No.of Heating Zone: | 3 Zones |
|---|---|---|---|
| Oil Pump Drive Power: | 7.5 KW | Max.size Of Mold: | 330X360mm |
| Max.die Diameter: | 140mm | Air Volume: | 0.7 M/MIN |
| Highlight: | bottle moulding machine,auto blow moulding machine |
||

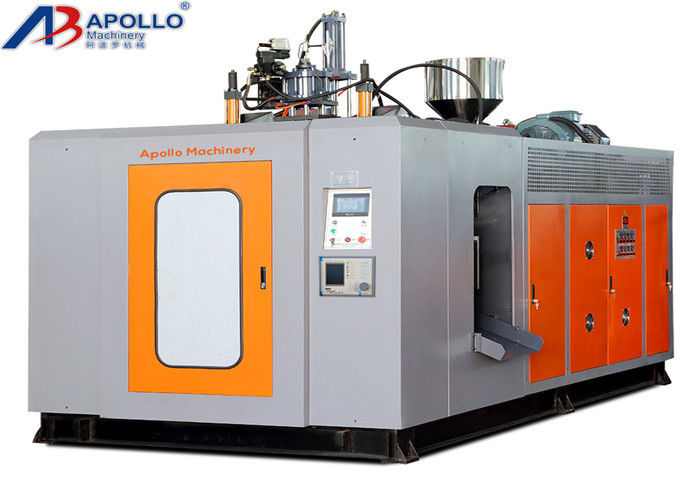

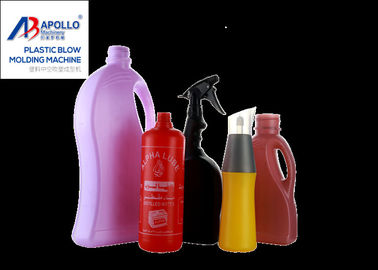

ABLB65II This type of machine is sutiable to produce different shapes of plastic bottles from 500ml to 4L.
Adopt Misubishi PLC from Japan Contactor use Schneider from France Most of spareparts of hydraulic system and pneumatic system are impored from Japan,Korea,France and T
Related technical parameter(ABLB65II)
| Max. Product volume | 4 liters | Dry cycle | 800X2pc/h |
| Screw diameter | 65mm | Screw L/D ratio | 24 L/D |
| Screw drive power | 18.5 KW | Screw heating capacity | 5.7 KW |
| No.of heating zone | 3 zones | Output of HDPE | 80 KG/H |
| Oil pump drive power | 7.5 KW | Clamping force | 45 KN |
| Max.size of mold | 330X360mm | Mold stroke | 148-508mm |
| Max.die diameter | 140mm | Blow pressure | 0.6mpa |
| Air volume | 0.7 M/MIN | Cooling water pressure | 0.3mpa |
| Water consumption | 65 L/MIN |
PLC adds the man-machine interface, the touching type is operated, it is convenient to be simple and direct.
One pair of Iow plastification systems of Senior One, energy-efficient,mix and smelt outstandingly.
The centre enters the material, the pushing out of the mould head of many patterns, remove and make and converge the line completely, meet the demands of different structure products.
Two parallel, the mould organization of translation, the centre locks the mould, balance the strength of receiving,move rapidly, put it in place gentlely.
