Plastic HDPE Molding Machine , HDPE Blow Moulding Machine Toy Black Wheel

Large Image : Plastic HDPE Molding Machine , HDPE Blow Moulding Machine Toy Black Wheel

Product Details:

Place of Origin:	CHINA
Brand Name:	ABC
Certification:	CE/SGS
Model Number:	ABLD80

Payment & Shipping Terms:

Minimum Order Quantity:	1SET
Price:	Negotiable
Packaging Details:	Film packaging
Delivery Time:	45DAYS
Payment Terms:	L/C, T/T
Supply Ability:	20SETS PER MONTH

Contact Now

Detailed Product Description

Max. Volume:	30L	Screw Diameter:	80mm
Oil Pump Drive Pump:	15KW	Clamping Force:	210KN
Materail Storage:	4.4L	Max Die Diameter:	280mm
Highlight:	hdpe drum manufacturing machines , plastic drum machine

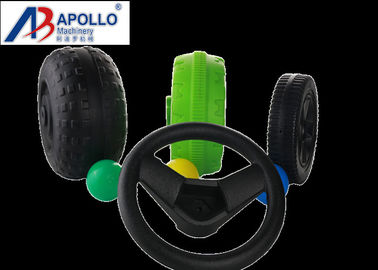

Plastic HDPE black wheel extrusion full automatic blow molding machine

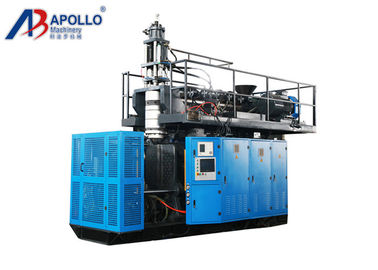

Production line of blow molding machine
Product: 25L
Power supply: 380v 50 Hz Tri-phase
Output capacity: 1000pcs/day
Suitable raw material: HDPE

Model No.: ABLD80(single station single die head)

This type of blow molding machine ABLD80 can produce bottle, kettle, can, flower pot etc. The machine is especially designed for producing with material PE, PVC, PP and so on.

Basic installation including

Die head: Center-feed die head
Extrusion system: Adopt world-famous brand automatic temperature controlling device. Drive the screw with electromagnetism motor reducer to realize stepless regulating.
Clamping device: Adopt bi-directional synchronous clamping device with double axis single cylinder to stabilize equipment well
Blowing device: with upper blowing type
Hydraulic system: The whole hydraulic system adopts world-famous brand controlling components and proportional controlling circle.
Electric controlling system: Adopt programmable controller made in Mitisubishi , Japan. Every electric component is of world-famous brand.

Unit price (including one series of spare parts)

Unite price (including one series of spare parts for wearing parts)

Basic parameters	Suitable materail	HDPE
	Max volume	30L
	Capacity	1000pcs/day
	Size	LXWXH=4.4x2.6x3.8(M)
	Weight	11T
System class	System details	Parameter	Remark
Plasticizing system	Summary	High efficiency and low consumption plasticizing system, variable frequency speed regulation, automatic protection function at low temperature extrusion starting
	Gear box	Hard Tooth Surface, High Strength, Low Noise Antiwear Reducer
	Barrel screw	∮80mm,L/D=25 38CrMoALA High quality nitride steel, gradual mixing, high efficiency and energy saving screw	The barrel feeding place is available with Cooling function
	Plasticizing	120Kg/H	ABS
	Heating zone	4	Auto heading
	Heating power	16KW/H
	Screw motor	3 phase induction motor
	Cooling fan	4	Auto cooling
Extruction head	Summary	High quality alloy steel with central feeding
	Head number	1
	Head centre distance	/
	Max. die	∮280mm
	Heating zones	4 Ceramic heater
	Heating power	15KW
Open and close mold	Summary	High Strength, High Rigidity, Center Locking, Low Friction Mould Opening and Closing, Mould Shifting Mechanism
	Clamping force	210KN
	Mold stroke	350～900mm
	Template size	WXH: 750x800mm
	Mould thickness range	400-850mm
Electrical control system	Summary	PLC + touch screen (man-machine interface) standardized extrusion and blow hollow forming machine control system (automatic monitoring, fault alarm, automatic counting, auxiliary function selection)
	Operating interface	Touch screen operation, fault alarm auto-display
	Action control	XIEHE system from TAIWAN, Programming in Chinese and English
	Electrical protection	Electrical Short Circuit Automatic Protection Function with Current Overload
Hydraulic system	Summary	Multifunctional Hydraulic Integrated Block, Proportional Control, High Efficiency and Energy Saving
	Oil pump motor	Servo system
	Oil pump	Servo pump SUMITOMO from Switzerland
	Valve parts	Imported Hydraulic Valve Assembly
	Oil pipe	Double-Layer High Pressure Wear-Resistant Tubing
	System pressure	100Kg/cm²
	Cooling ways	Independent water circulation, oil cooler cooling
Air system	Summary	Taiwanese AIRTAC Pneumatic Component Combination, Reserve One Way Action
	Air pressure	0.8Mpa
	Air displacement	1.0M3/min
	Soleniod valve	AIRTAC from TAIWAN
Cooling system	Summary	Mold, barrel, oil source three independent cooling water lines, non-interference with each other
	Cooling medium	Natural water and groundwater (frozen water is better)
	Water flowing	60L/min
	Water pressure	0.3MPa
