| Max. Volume: | 300L | Screw Diameter: | 120mm |
|---|---|---|---|
| Output Of HDPE: | 350KG/H | Clamping Force: | 900KN |
| Material Storage: | 24-35L | ||
| Highlight: | hdpe drum manufacturing machines,plastic drum making machine |
||

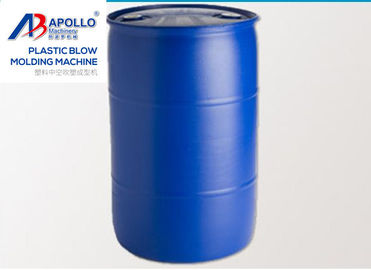

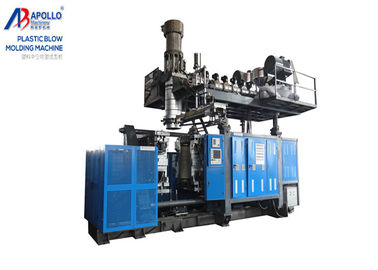

200L, 250L, 300L HDPE oil drum automatic extrusion blow molding machine
Model No.: ABLD120
This type of blow molding machine ABLD120 can produce bottle, kettle, can, flower pot etc. The machine is especially designed for producing with material PE, PVC, PP and so on.
Machine features:
1. This function can save manpower, energy and power for customers. Timing heating is a set of procedures set up by our company for the convenience of customers.
2. Accurate output setting and control;
3. Powerful module memory function, which can memorize the technical data of each die in the computer, so that you can use it at any time.
4. All kinds of protection functions can ensure that you are not easy to damage the machine even if you misoperate.
5. Automatic fault detection function, can accurately detect the fault and alarm display, give you directions for maintenance path, convenient for your maintenance, so that you can accurately find the fault;
ABLD120 main technical parameter
| Basic parameters | Suitable materail | HDPE | |
| Max volume | 300L | ||
| Capacity | 15-18pcs/h | ||
| Size | LXWXH=7.5x3.5x5.5(M) | ||
| Weight | 36T | ||
| System class | System details | Parameter | Remark |
| Plasticizing system | Summary | High efficiency and low consumption plasticizing system, variable frequency speed regulation, automatic protection function at low temperature extrusion starting | |
| Gear box | Hard Tooth Surface, High Strength, Low Noise Antiwear Reducer | ||
| Barrel screw |
∮120mm,L/D=33 38CrMoALA High quality nitride steel, gradual mixing, high efficiency and energy saving screw |
The barrel feeding place is available with Cooling function |
|
| Plasticizing | 350Kg/H | ABS | |
| Heating zone | 6 | Auto heading | |
| Heating power | 36KW/H | ||
| Screw motor | 3 phase induction motor | ||
| Cooling fan | 6 | Auto cooling | |
| Extruction head | Summary |
High quality alloy steel with central feeding
|
|
| Head number | 1 | ||
| Head centre distance | / | ||
| Max. die | ∮700mm | ||
| Heating zones | 6 Ceramic heater | ||
| Heating power | 36KW | ||
| Open and close mold | Summary | High Strength, High Rigidity, Center Locking, Low Friction Mould Opening and Closing, Mould Shifting Mechanism | |
| Clamping force | 900KN | ||
| Mold stroke | 880～1700mm | ||
| Template size | WXH: 1200x1600mm | ||
| Mould thickness range | 900-1600mm | ||
| Electrical control system | Summary |
PLC + touch screen (man-machine interface) standardized extrusion and blow hollow forming machine control system (automatic monitoring, fault alarm, automatic counting, auxiliary function selection) |
|
| Operating interface | Touch screen operation, fault alarm auto-display | ||
| Action control | Mitsubishi PLC, Japan, Programming in Chinese and English | ||
| Electrical protection | Electrical Short Circuit Automatic Protection Function with Current Overload | ||
| Hydraulic system | Summary | Multifunctional Hydraulic Integrated Block, Proportional Control, High Efficiency and Energy Saving | |
| Oil pump motor | Servo system | ||
| Oil pump | Servo pump | ||
| Valve parts | Imported Hydraulic Valve Assembly | ||
| Oil pipe | Double-Layer High Pressure Wear-Resistant Tubing | ||
| System pressure | 100Kg/cm² | ||
| Cooling ways | Independent water circulation, oil cooler cooling | ||
| Air system | Summary | Taiwanese AIRTAC Pneumatic Component Combination, Reserve One Way Action | |
| Air pressure | 0.6Mpa | ||
| Air displacement | 0.7M3/min | ||
| Soleniod valve | AIRTAC from TAIWAN | ||
| Cooling system | Summary | Mold, barrel, oil source three independent cooling water lines, non-interference with each other | |
| Cooling medium | Natural water and groundwater (frozen water is better) | ||
| Water flowing | 180L/min | ||
| Water pressure | 0.3MPa | ||
