10000L Water Tank Accum Blow Molder 3-6 Ply Co-extrusion extrusion blow machine

المعلومات الأساسية

مكان المنشأ:	حديقة شيبو الصناعية مدينة تشانغي بمقاطعة شاندونغ الصين
اسم العلامة التجارية:	XINHENGDA
رقم الموديل:	آلة نفخ القالب 10000 لتر

الحد الأدنى لكمية:	1
الأسعار:	Contact me
وقت التسليم:	يتم شحن الطلبات العادية خلال 90 يومًا؛ للحصول على منتجات مخصصة، يرجى الاتصال بي للحصول على الجدول ال
شروط الدفع:	L/C ، D/A ، T/T ، Western Union ، D/P.
القدرة على العرض:	90+

افضل سعر

Chat Now

معلومات تفصيلية

نظام التحكم:	بلك + شاشة تعمل باللمس	سنة:	جديد
معالجة البلاستيك:	ب، هدب، بيت، بي / ب، هدب / ب	السكتة الدماغية حركة النقل:	450 ملم
نظام التخلص من الاكتتاب:	نعم	نوع الآلة:	آلة التشكيل بالنفخ والبثق
الانتهاء من السطح:	ناعم أو محكم	لون:	أزرق
إبراز:	10000L water tank blow molder , 3-6 ply co-extrusion molding machine , extrusion blow molding machine with warranty

منتوج وصف

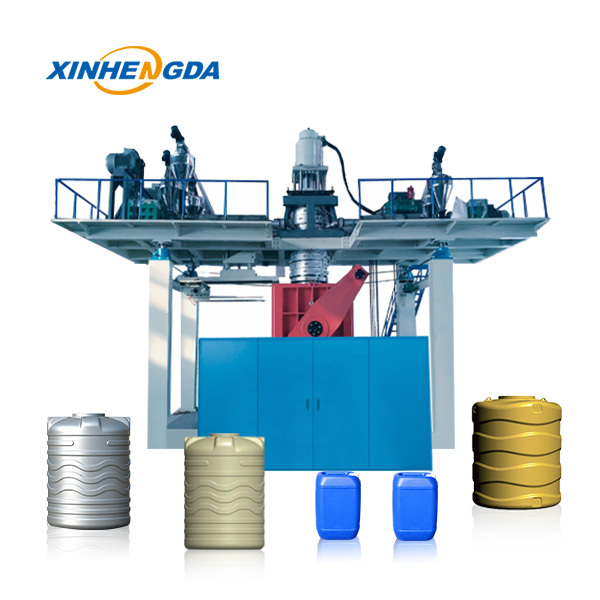

10000L Water Tank Accum Blow Molder 3-6 Ply Co-extrusion extrusion blow machine

Product Introduction

Our customized 10000L water tank blow moulding machine delivers high production capacity. Developed and built by an experienced Shandong firm with 30 years in large blow molding machinery, it is tailored for mass production of large plastic tanks and hollow containers. It also effectively fixes common industry defects: low efficiency and unstable molding quality of large tank products.

Tabular Parameters

Parameter	Details
Processed Plastic Materials	HDPE, PE
Mould Closing Force	2000 KN
Auto Running Model	Automatic
Voltage	380-415V
Key Selling Point	Multilayer
Warranty	1 Year
No. of Screw	7
Core Comps	PLC Ctrl, Inverter, Brg Shield, Elec Motor, Gear, Fluid Pump
Video Quality Inspection	Provided
Equip Test Rec	Provided
Production Origin	Shandong, China
Power	520 kW
Equipment Weight	50 Ton
Equip Dimension	1158 m
Screw L/D Ratio	30
Screw Diameter	120 mm
Screw Heating Power	80 KW
Extruder Motor Power	90 KW
Mold Pos Len	1900 mm
Mold Station Size	2100 mm
Air Pressure	0.65 MPa
Air Usage	3 m³/min
Die Head Heating Power	100 KW
Automatic Function	Yes
Single Unit Weight	50 TON
Packaging Method	Based on the requirements proposed by customers (containers and other related items)
Port of Dispatch	QINGDAO
Annual Available Supply Capacity	35 Units

Product Core Functions

We have upgraded our 10000L large-scale blow molding unit, which is designed for standardized productionof big-sized plastic water tanks and industrial hollow vessels. Both the product wall thickness and overallweight can be fine-tuned precisely between 1mm and 10mm. Featuring high molding precision, consistentthickness and reliable deformation resistance, this machine can fulfill bespoke orders for large plasticcontainers in household and industrial scenarios.

Product Competitive Advantages

1. Labor Cost Optimization

Benefiting from advanced automated configuration, the production line requires limited manual operation. The entire workflow can be undertaken by two professional operators, which effectively reduces enterprises’ long-term labor expenditure and production management costs.

2. Systematic Technical Training

We arrange two weeks of free on-site technical guidance, involving equipment operation, parameter calibration, routine maintenance and malfunction elimination. It enables your personnel to acquire operational proficiency quickly and realize official production as soon as possible.

3. Superior Material Matching Performance

After structural optimization on extrusion and molding modules, the equipment is fully applicable to HDPE, PE and other mainstream plastic materials. It can satisfy diversified raw material specifications and production requirements in various sectors.

4. Comprehensive Quality Supervision

Video monitoring is implemented throughout the entire production process for real-time recording and inspection. Before delivery, full set of performance test reports and quality certificates will be issued to ensure all products conform to international export specifications.

5. High-Quality Branded Core Assemblies

Core assemblies including PLC system, inverter, motor and hydraulic pump are selected from established brands. They ensure stable running state, low failure rate and prolonged service life, thus saving clients’ maintenance expenses.

6. Mature R&D & Production Capability

We accumulate 30 years of experience in the R&D and manufacturing of large-scale blow molding machines. Continuous structural improvement and technical iteration guarantee stable performance and dependable quality for global plastic production enterprises.

Product Distinctive Features

Fully Automatic Intelligent Operation

Featuring an integrated PLC control system, the device supports one-key startup. All working steps including extrusion, mold closing, blow molding, cooling and demolding run automatically, ensuring stable operation and high output.

Multi-Layer Blow Molding Tech

The synchronous multi-layer blow molding process helps upgrade large water tanks’ pressure resistance, anti-corrosion ability and tightness. It also gives products stronger advantages in market competition.

Customizable Parameter Settings

Product weight, wall thickness and molding parameters can be adjusted flexibly. It is capable of manufacturing large containers with different specs on demand to fit varied individual market needs.

High-End Core Parts & Stable Running

Built with high-power, high-precision core components, the machine works reliably around the clock. With low vibration and noise levels, it is well adapted to long-duration continuous industrial production.

Application Scenarios

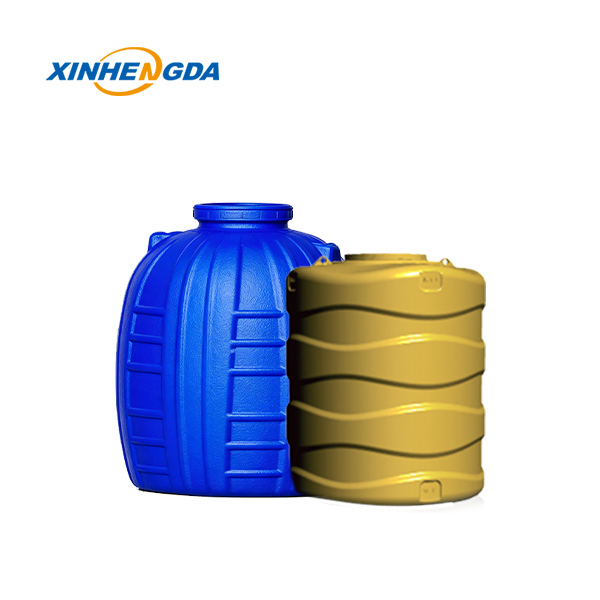

This 10000L large-volume blow molding machine is primarily designed to manufacture large plastic water tanks and industrial containers with capacities between 500L and 10000L.

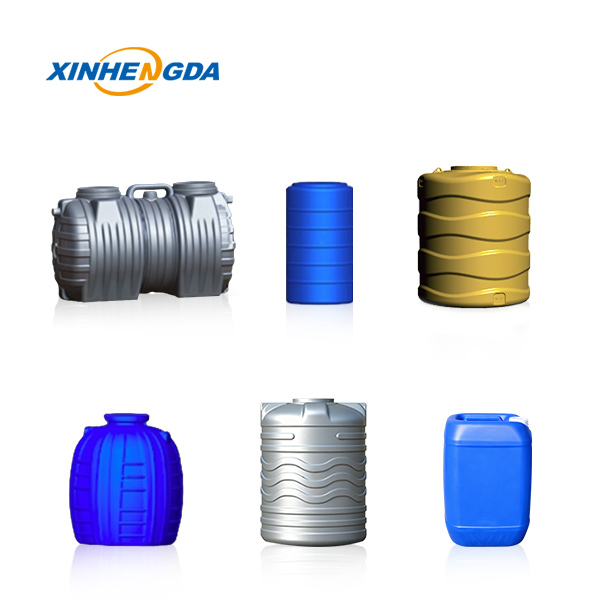

Apart from water tanks, it is also capable of high-efficiency production for plastic pallets, eco-friendly waste bins, road guardrails, plastic septic tanks and other large hollow plastic goods, boasting extensive application scope.

The machine has met international quality assessment criteria. Our key sales territories include Southeast Asia, South America, Europe and more regions.

Thanks to its high productivity, reliable operation and low power consumption, it has won wide acclaim from plastic product manufacturers. It stands as an ideal choice for production lines specializing in large plastic hollow items.
